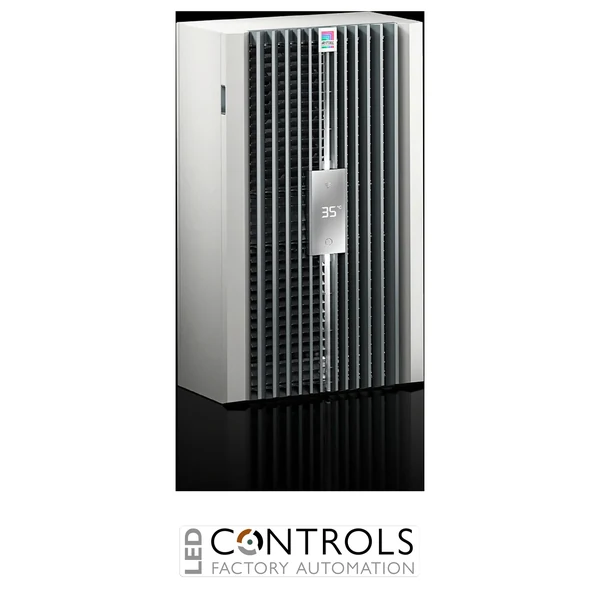

Rittal SK 3180.800 Blue e+ S wall-mounted enclosure cooling unit with 0.78 kW cooling output, 110–240 V AC multi-voltage supply, R-513A refrigerant, IP55 internal circuit protection and integral condensate evaporation.
£1,678.16
The Rittal SK 3180.800 is a high-efficiency Blue e+ S wall-mounted enclosure cooling unit designed for reliable thermal management of industrial electrical enclosures, control panels and automation systems. Using Rittal Blue e+ hybrid cooling technology, it combines active compressor-based cooling with heat-pipe operation to reduce energy consumption while maintaining stable enclosure temperatures.
With a rated cooling output of 0.78 kW at L35 L35, the SK 3180.800 is suitable for removing heat generated by drives, PLCs, power electronics and other temperature-sensitive components. Its integrated e+ controller provides precise temperature regulation, while multi-voltage capability enables operation from 110–240 V AC, single-phase, 50/60 Hz.
The compact wall-mounted unit measures 300 × 570 × 250 mm and incorporates an integral electric condensate evaporator for simplified condensate management. The internal air circuit provides IP55 protection, while environmentally improved R-513A refrigerant supports efficient refrigeration performance in demanding industrial applications.
The Rittal Blue e+ S platform combines passive heat-pipe cooling with variable-speed compressor refrigeration to match cooling performance to the actual thermal load. When ambient conditions permit, heat can be transferred without operating the compressor, helping reduce electrical consumption and mechanical wear while maintaining a controlled enclosure temperature.
When additional cooling is required, the active refrigerant circuit supplements the heat-pipe system to provide up to 0.78 kW of cooling output. The integrated e+ controller regulates operation according to enclosure conditions, while the separate internal and external airflow circuits help prevent ambient contamination from entering the enclosure.
Tick the specs you need, then view products that match.
| Device Type | Wall / door-mounted cooling unit | |
|---|---|---|
| Mounting Type | Wall / door | |
| Refrigerant Type | R513A | |
| Coil / Supply Voltage | 110–240 V AC, 1-phase | |
| Voltage | 110-240 V AC | |
| Cooling Output (W) | 780 W | |
| Manufacturer | Rittal | |
| Series | Blue e+ S | |
| Model | SK 3180.800 | |
| Product type | Wall-mounted enclosure cooling unit | |
| Cooling technology | Hybrid heat-pipe and compressor refrigeration | |
| Cooling output L35 L35 at 50 Hz | 0.78 kW | |
| Cooling output L35 L35 at 60 Hz | 0.78 kW | |
| Cooling output L35 L50 at 50 Hz | 0.44 kW | |
| Cooling output L35 L50 at 60 Hz | 0.44 kW | |
| Rated operating voltage | 110–240 V AC, 1~, 50/60 Hz | |
| Rated power input | 0.56 kW | |
| Internal air throughput | 378 m³/h | |
| External air throughput | 378 m³/h | |
| Temperature control | e+ controller | |
| Factory temperature setting | +35 °C | |
| Temperature setting range | 20–50 °C | |
| Operating temperature range | -20 to +60 °C | |
| Active refrigerant circuit operating range | 3–60 °C | |
| Heat-pipe operating temperature range | -20 to +45 °C | |
| Storage temperature range | -40 to +70 °C | |
| Refrigerant | R-513A | |
| Refrigerant quantity | 0.19 kg | |
| Refrigerant GWP | 631 | |
| CO₂ equivalent | 0.12 t | |
| Permissible operating pressure | 35 bar | |
| Internal circuit protection rating | IP55 to IEC 60529 | |
| NEMA protection | UL Type 1 / UL Type 12 | |
| Condensate management | Integral electric condensate evaporator | |
| Mounting type | Wall-mounted | |
| Required mounting cut-out | 280 × 550 mm | |
| Dimensions (W × H × D) | 300 × 570 × 250 mm | |
| Width | 300 mm | |
| Height | 570 mm | |
| Depth | 250 mm | |
| Colour | RAL 7035 | |
| Net weight | approx. 16.5 kg |
The Rittal SK 3180.800 is used to cool industrial electrical enclosures and control panels, helping maintain suitable operating temperatures for drives, PLCs, power electronics and other heat-sensitive equipment.
The unit provides a rated cooling output of 0.78 kW at L35 L35 and 0.44 kW at L35 L50 at both 50 Hz and 60 Hz.
The Blue e+ S cooling unit supports a broad 110–240 V AC, single-phase, 50/60 Hz supply range, allowing it to be used across a wide range of industrial electrical systems.
Yes. The SK 3180.800 includes an integral electric condensate evaporator, helping manage condensate produced during refrigeration operation.
The cooling unit uses R-513A refrigerant with a 0.19 kg charge and provides IP55 protection for the internal air circuit in accordance with IEC 60529.
Rittal Blue e+ S cooling units combine hybrid cooling technology, intelligent electronic control and wide-voltage compatibility to provide energy-efficient thermal management for industrial electrical enclosures and automation systems.
