Why Choose the ABB 831066 ARIA 64 Steel Mounting Plate?

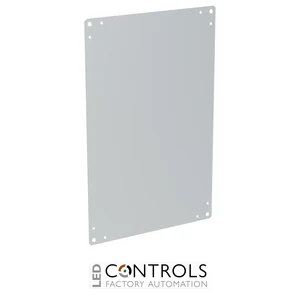

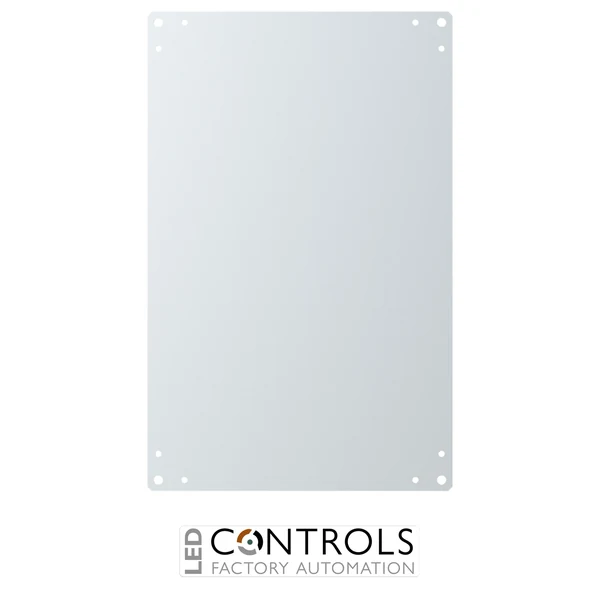

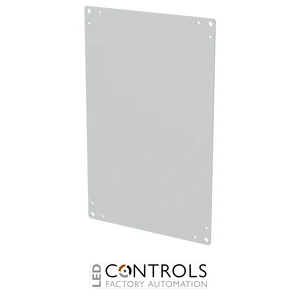

The ABB 831066 ARIA 64 Steel Mounting Plate is a purpose-designed internal mounting accessory for compatible ABB ARIA 64 electrical enclosures. Manufactured from 2 mm Sendzimir galvanised sheet steel, this mounting plate provides a durable and rigid surface for installing suitable electrical distribution, control and switching components. Measuring 350 mm wide × 550 mm high × 2 mm thick, it offers a substantial mounting area for professional electrical panel assembly.
Part of the ABB ARIA Enclosures product group, the 831066 is identified by ABB extended product type AR064M03 and order code 4TBA831066C0100. Its galvanised steel construction provides a protective surface finish, helping resist corrosion during normal service inside a suitably specified electrical cabinet. The plate is designed specifically for the ABB ARIA 64 enclosure format, supporting accurate accessory selection when building or refurbishing electrical equipment assemblies.
The ABB AR064M03 mounting plate provides a solid, non-perforated steel panel that can accommodate appropriately selected electrical components and mounting hardware. Its 550 mm height offers useful space for vertically arranged equipment, while the 350 mm width supports flexible component positioning. Whether used for a new control panel, electrical distribution installation or replacement of an existing mounting plate, this ABB accessory offers a practical solution for organising equipment inside compatible ARIA 64 enclosures.
Key Advantages
- Purpose-designed for ABB ARIA 64 enclosures, helping ensure the correct mounting accessory is selected.
- 350 × 550 mm mounting area provides space for a range of suitably sized electrical components.
- 2 mm steel thickness offers a rigid mounting surface for professional electrical assemblies.
- Sendzimir galvanised sheet steel provides a protective zinc-coated finish.
- Corrosion-resistant surface treatment supports durability within appropriately specified electrical enclosures.
- Solid, non-perforated plate design allows installers to plan equipment positions according to their assembly requirements.
- Dedicated ARIA 64 compatibility supports coordinated enclosure and accessory selection.
- Generous vertical mounting space is useful for arranging control and distribution components.
- Suitable for electrical panel building, including new installations and equipment upgrades.
- Replacement accessory format supports maintenance of compatible ABB electrical cabinets.
- Manufacturer-specific identification simplifies purchasing and replacement.
- Galvanised steel finish provides a practical surface for appropriate component mounting methods.
- Part of the established ABB ARIA electrical enclosure accessory range.
Key Features
- ABB ARIA 64 steel mounting plate.
- Product reference: 831066.
- ABB extended product type: AR064M03.
- ABB order code: 4TBA831066C0100.
- Product group: ARIA Enclosures.
- Compatible enclosure series: ABB ARIA 64.
- Plate material: Sheet steel.
- Steel specification: Sendzimir galvanised sheet steel.
- Surface finish: Galvanised.
- Plate width: 350 mm.
- Plate height: 550 mm.
- Plate thickness: 2 mm.
- Plate configuration: Solid, non-perforated.
- Product net weight: 2.98 kg.
- Accessory type: Internal equipment mounting plate.
- Installation location: Inside a compatible ABB ARIA 64 enclosure.
- Application: Mounting suitable electrical distribution, control and switching equipment.
- Catalogue quantity: 1 mounting plate.
Durable Galvanised Steel Mounting for ABB ARIA 64 Electrical Enclosures
The ABB 831066 AR064M03 mounting plate is designed to provide a dedicated equipment mounting surface within the ABB ARIA 64 universal polyester enclosure system. Its nominal dimensions of 350 mm wide × 550 mm high correspond to the mounting plate size specified for this enclosure format. The substantial mounting area allows panel builders to plan the positioning of suitable electrical equipment, such as control components, terminal assemblies and appropriately supported distribution accessories.
Manufactured from 2 mm Sendzimir galvanised sheet steel, the mounting plate combines structural rigidity with a protective zinc-coated finish. Sendzimir galvanising is a continuous hot-dip coating process used to provide corrosion protection to sheet steel. This treatment makes the plate suitable for use inside properly specified electrical enclosures, although the overall environmental performance of the installation depends on the enclosure and operating conditions. As a solid, non-perforated plate, it allows suitable component mounting positions to be established during assembly, subject to ABB's installation guidance.
The ABB 831066 is a mounting accessory, not a complete electrical enclosure. It is intended for installation inside compatible ARIA 64 cabinets, including the ABB AR064P33 enclosure, order code 4TBA831065C0100. The plate itself does not provide an independent IP rating, impact protection rating or electrical insulation classification. These characteristics must be assessed for the complete enclosure assembly. Installers should also consider equipment weight, fixing arrangements, electrical clearances, protective bonding where required and thermal performance before putting the completed installation into service.
Typical Applications
- Internal mounting of electrical components inside ABB ARIA 64 enclosures.
- Electrical control panel assembly and installation.
- Industrial electrical distribution cabinet configuration.
- Mounting suitable contactors, relays and control equipment.
- Installation of appropriately supported terminal blocks and electrical accessories.
- Commercial building services electrical control panels.
- Industrial automation and process control assemblies.
- Electrical equipment refurbishment and cabinet upgrades.
- Replacement of damaged or unsuitable ARIA 64 mounting plates.
- Custom electrical panel layouts requiring a solid steel mounting surface.
- Electrical switching and distribution equipment installations.
- Professional panel-building and electrical maintenance applications.
