Why Choose the ABB 831114 Pertinax Mounting Plate 750mm x 950mm for Aria Enclosures?

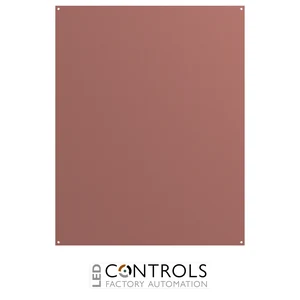

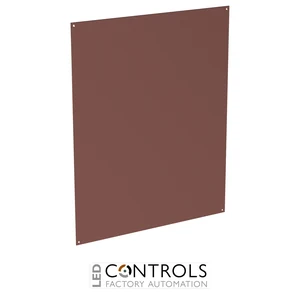

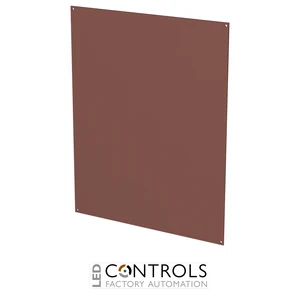

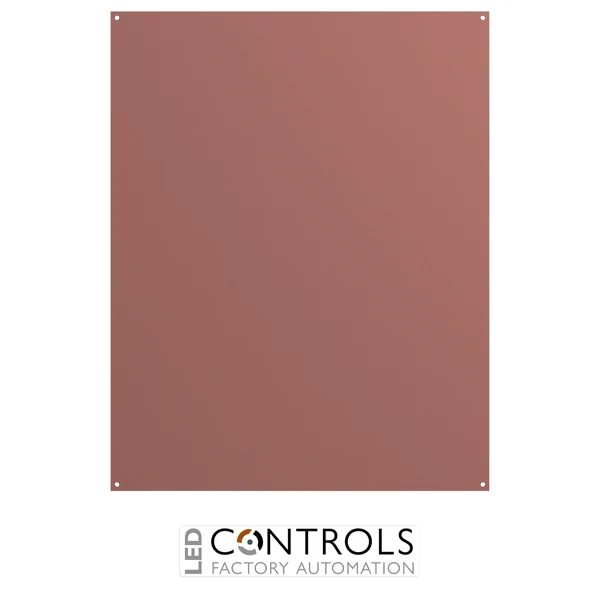

The ABB 831114 Pertinax Mounting Plate (4TBA831114C0100) is a specialist internal mounting accessory from the ABB Aria Enclosures product group. Identified by the manufacturer as 831114 Pertinax MP 750w x 950h x 5d, this mounting plate provides a large, rigid, non-metallic surface for installing appropriately selected electrical equipment within compatible ABB Aria cabinets.
With nominal dimensions of 750 mm wide, 950 mm high and 5 mm thick, the ABB 831114 offers a substantial mounting area for professional electrical panel building, industrial control equipment and distribution cabinet applications. Its Pertinax construction provides an alternative to conventional steel mounting plates where a non-metallic substrate is required by the enclosure design.
As part of the ABB Aria Enclosures accessory range, the ABB 831114 mounting plate supports structured equipment positioning, organised component layouts and planned internal wiring arrangements. It is particularly relevant to projects requiring a large-format mounting surface, provided that enclosure compatibility, fixing methods and permissible equipment loads have been verified.
Key Advantages
- Pertinax construction provides a rigid, non-metallic mounting substrate.
- 750 mm nominal width offers a generous area for electrical equipment layouts.
- 950 mm nominal height supports extensive vertical component arrangements.
- 5 mm plate thickness provides a defined substrate for appropriately selected mounting fixings.
- Part of the ABB Aria Enclosures product group.
- Suitable for compatible large-format electrical enclosure installations.
- Supports professional industrial control panel and electrical distribution assembly.
- Provides a non-metallic alternative to steel mounting plates.
- Helps installers plan component spacing, access and cable routing.
- Supports the installation of suitable control equipment and mounting accessories.
- Useful for compatible enclosure refurbishment and replacement projects.
- ABB order code 4TBA831114C0100 enables accurate product identification and procurement.
Key Features
- Manufacturer: ABB.
- Product group: Aria Enclosures.
- Product reference: 831114.
- ABB order code: 4TBA831114C0100.
- Product type: Pertinax mounting plate.
- Manufacturer designation: Pertinax MP.
- Nominal width: 750 mm.
- Nominal height: 950 mm.
- Nominal thickness: 5 mm.
- Nominal dimensions: 750 × 950 × 5 mm.
- Material: Pertinax.
- Material category: Non-metallic laminate.
- Provides a large internal mounting surface for suitable electrical equipment.
- Designed for compatible ABB Aria enclosure arrangements.
- Supports organised equipment positioning and panel assembly.
- Requires verification of mounting points, fixing methods and mechanical loads.
Understanding the ABB 831114 Pertinax Mounting Plate
The ABB 831114 is designed to provide a large internal mounting surface for electrical equipment within a compatible enclosure. A dedicated mounting plate allows installers to organise components in a structured arrangement while accounting for electrical clearances, wiring access, mechanical support and future maintenance requirements.
The plate has nominal dimensions of 750 × 950 × 5 mm. Its generous width and height make it relevant to installations requiring substantial mounting space, while its 5 mm thickness must be considered when selecting fixings or planning permitted drilling operations. The plate dimensions describe the mounting accessory itself and should not be interpreted as the external dimensions of the cabinet.
Pertinax is commonly used to describe a rigid, resin-bonded paper laminate. This type of non-metallic material is associated with electrical and mechanical applications where a stable mounting substrate is required. However, the specific dielectric strength, temperature resistance, fire classification and mechanical loading limits of the ABB 831114 must be confirmed from ABB's product-specific documentation before being relied upon in an electrical safety design.
When selecting the ABB 831114 Pertinax mounting plate, installers should verify compatibility with the intended Aria enclosure, including internal mounting dimensions, support positions and equipment clearances. Suitable fixing methods and the combined weight of mounted components must also be assessed. The plate is an internal accessory and does not independently determine the ingress protection or safety classification of the finished enclosure.
Typical Applications
- Compatible large-format ABB Aria electrical enclosures.
- Industrial electrical control panel assembly.
- Low-voltage electrical distribution cabinet installations.
- Automation and process control equipment mounting.
- Large internal electrical component layouts.
- Building services electrical control cabinets.
- Electrical equipment installations requiring a non-metallic mounting substrate.
- Professional panel building and enclosure integration.
- Replacement of matching ABB Pertinax mounting plates.
- Projects specifying a 750 × 950 × 5 mm Pertinax mounting surface.
