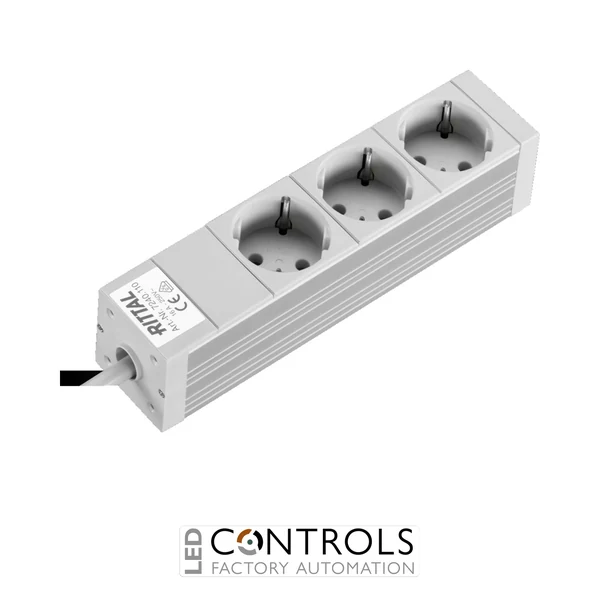

Rittal DK 7240.110 is a compact 3-way CEE 7/3 Type F socket strip rated at 250 V AC and 16 A with a 2 m connection cable for power distribution in network, IT and industrial enclosures.
£39.19
The Rittal DK 7240.110 is a compact and robust 3-way CEE 7/3 (Type F) socket strip designed to provide reliable mains power distribution inside network enclosures, IT cabinets and industrial installations. Part of the Rittal DK range, it combines a durable aluminium housing with flexible mounting options for professional enclosure applications.
The socket strip incorporates three earthed Type F (CEE 7/3) sockets and is rated for operation at 250 V AC, 50 Hz with a maximum rated current of 16 A. This version is supplied without an on/off switch, providing straightforward permanent power distribution for installed equipment.
Measuring 262.6 × 44 × 44 mm (L × H × D), the DK 7240.110 uses a natural anodised aluminium section with durable polycarbonate socket inserts. A 2 m H05VV-F3G1.5 connection cable is provided without a mains connector, allowing integration into the appropriate electrical installation. Two mounting brackets and fixing materials are also supplied for flexible installation.
Socket strips such as the Rittal DK 7240.110 provide convenient mains power distribution directly inside network and equipment enclosures. The three earthed Type F outlets allow multiple compatible devices to be powered from a single enclosure-mounted distribution point, helping create an organised electrical installation for networking, communications and industrial equipment.
The Rittal mounting system provides flexibility when positioning the socket strip. Its mounting brackets can be used with components featuring a 25 mm pitch pattern or directly on compatible enclosure frames, while the compact aluminium profile minimises the space required inside the cabinet.
Tick the specs you need, then view products that match.
| Voltage | 200–250 V AC | |
|---|---|---|
| Current | 16 A | |
| Material | Aluminium | |
| Accessory Type | Power Distribution | |
| Manufacturer | Rittal | |
| Series | DK | |
| Model | DK 7240.110 | |
| Product type | Socket strip / power distribution strip | |
| Socket type | CEE 7/3 (Type F) | |
| Number of sockets | 3 | |
| Rated voltage | 250 V AC | |
| Rated frequency | 50 Hz | |
| Rated current | 16 A | |
| Switch | No | |
| Length | 262.6 mm | |
| Height | 44 mm | |
| Depth | 44 mm | |
| Housing material | Aluminium section, natural anodised | |
| Socket insert material | Polycarbonate | |
| Socket insert colour | Grey | |
| Connection cable length | 2 m | |
| Connection cable type | H05VV-F3G1.5 | |
| Connection | Cable without mains connector | |
| Mounting dimension | 232.5 mm | |
| Mounting dimension tolerance | ±25 mm | |
| Mounting options | Components with 25 mm pitch pattern / enclosure frame | |
| Standard | DIN 49440-1 | |
| Protection category | IP20 | |
| Supply includes | Socket strip, 2 mounting brackets, fixing materials and connection cable | |
| Pack quantity | 1 piece | |
| EAN | 4028177255272 | |
| Customs tariff number | 85366990 | |
| ETIM 9 | EC000330 | |
| ECLASS 8.0 | 27142604 |
The Rittal DK 7240.110 provides mains power distribution inside network, IT and equipment enclosures, allowing up to three compatible Type F devices to be connected.
The socket strip has three earthed CEE 7/3 (Type F) sockets.
The Rittal DK 7240.110 is rated for 250 V AC, 50 Hz operation with a maximum rated current of 16 A.
No. The DK 7240.110 is a switchless socket strip designed to provide straightforward power distribution within an enclosure.
The socket strip is supplied with a 2 m H05VV-F3G1.5 connection cable without a mains connector.
Rittal DK socket strips provide compact and flexible power distribution for professional network, IT and industrial enclosure installations, combining robust aluminium construction with practical mounting options and dependable electrical connectivity.
