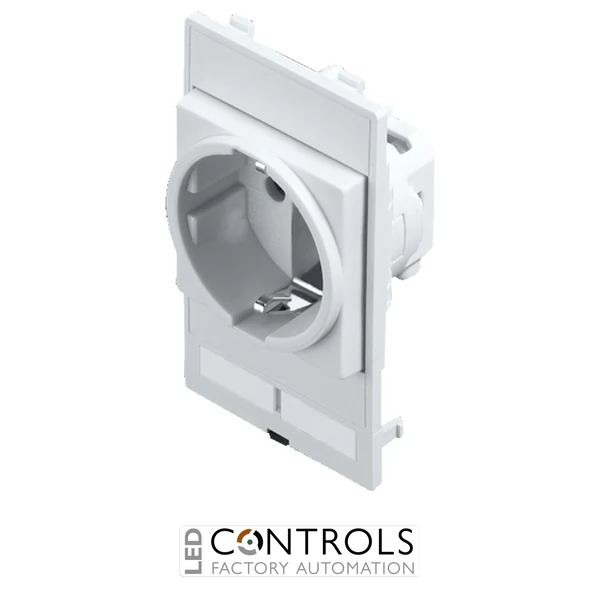

Rittal SZ2482.400 is a 250 V AC German VDE socket module with spring-action terminals for installation in compatible single or double Rittal modular interface flap mounting frames.
£21.42
The Rittal SZ2482.400 is a German VDE socket module for the Rittal modular interface flap system, designed to provide convenient power access at industrial enclosures, control cabinets and automation equipment. The module installs into a compatible single or double mounting frame, allowing maintenance personnel and engineers to access a power socket without opening the main enclosure.
Designed for German-standard applications, the SZ2482.400 uses spring-action terminals accepting up to 2 × 2.5 mm² conductors with the electrical connection located at the rear. The socket module is manufactured from PBTP plastic with a base material compliant with UL 94-V0, providing a durable solution for industrial electrical installations.
When installed as part of the appropriate Rittal modular interface flap assembly, the system can achieve IP65 protection with the flap sealed and correctly assembled. This arrangement enables rapid access to power and interfaces while the main enclosure remains closed, helping protect internal equipment from ambient influences and unauthorised access.
The Rittal modular interface flap system is designed for applications where engineers need rapid access to sockets and communication interfaces without opening the main electrical enclosure. Installing the SZ2482.400 socket module in a compatible mounting frame provides a convenient local power connection for commissioning, programming, servicing and maintenance equipment.
Keeping the main enclosure closed helps protect sensitive electrical and automation components from environmental influences and limits unnecessary access to the cabinet interior. With the compatible interface flap sealed and properly assembled, the system provides IP65 protection for demanding industrial installations.
Tick the specs you need, then view products that match.
| Current | 16 A | |
|---|---|---|
| Accessory Type | Power Distribution | |
| Manufacturer | Rittal | |
| Series | SZ Modular Interface Flap | |
| Model | SZ2482.400 | |
| Article number | 2482400 | |
| Product type | Socket module for modular interface flap | |
| Socket design | Germany (VDE) | |
| Rated operating voltage | 250 V AC | |
| Rated current | 10–16 A | |
| Phases | 1-phase | |
| Frequency | 50/60 Hz | |
| Terminal type | Spring-action terminals | |
| Maximum terminal capacity | 2 × 2.5 mm² | |
| Connection | Rear | |
| Material classification | UL 94-V0 | |
| Colour | Grey | |
| Protection rating | IP65 with sealed flap and proper assembly | |
| Mounting compatibility | Single or double mounting frame | |
| Packaging unit | 1 pc | |
| Net weight | 0.07 kg | |
| Gross weight | 0.071 kg | |
| Customs tariff number | 85366990 | |
| EAN | 4028177490703 | |
| ETIM 9 | EC002625 | |
| ECLASS 8.0 | 27189234 |
The Rittal SZ2482.400 provides a German VDE power socket within a compatible Rittal modular interface flap mounting frame, allowing convenient power access without opening the main enclosure.
The socket module has a rated operating voltage of 250 V AC for single-phase 50/60 Hz applications.
The module uses spring-action terminals accepting conductors up to 2 × 2.5 mm², with the connection positioned at the rear.
The modular interface flap system provides IP65 protection when the compatible flap is sealed and the assembly is installed correctly.
The socket module can be installed in compatible single or double Rittal modular interface flap mounting frames.
Rittal modular interface solutions provide machine builders, panel builders and maintenance engineers with convenient access to power and communication connections while helping keep sensitive equipment securely enclosed.
