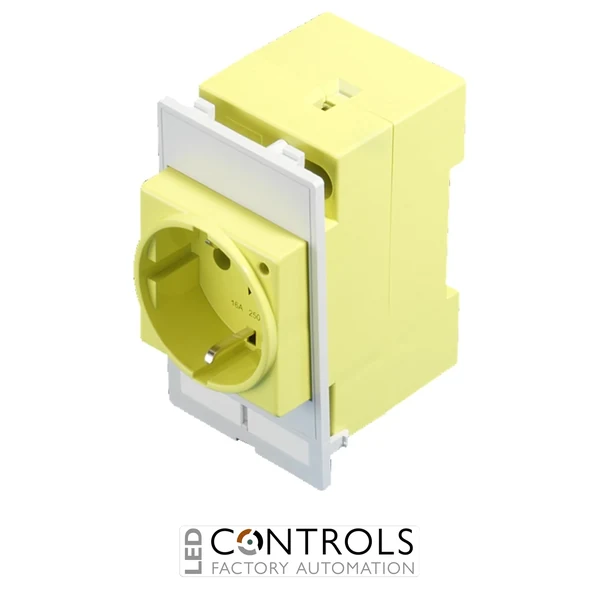

Rittal SZ2482.410 is a yellow RAL 1016 German VDE socket module with rear screw terminals up to 6 mm² for installation in compatible single or double Rittal modular interface flap mounting frames.
£37.36
The Rittal SZ2482.410 is a German VDE socket module for the Rittal modular interface flap system, designed to provide convenient access to mains power from industrial enclosures, control cabinets and automation equipment. The module installs into a compatible single or double mounting frame and is specifically designed for applications requiring a socket positioned in front of the main switch.
The SZ2482.410 features robust screw terminals accepting conductors up to 6 mm², with the electrical connection positioned at the rear for neat integration into the enclosure. Manufactured from PBTP plastic with base material conforming to UL 94-V0, the module combines durable industrial construction with straightforward installation.
Finished in distinctive yellow RAL 1016, the socket module is easy to identify within the interface assembly. When incorporated into the appropriate Rittal modular interface flap system, the assembly can provide IP65 protection with the flap sealed and properly installed, allowing power access while the main enclosure remains closed.
The Rittal modular interface flap system enables maintenance personnel, programmers and service engineers to access sockets and interfaces without opening the main electrical enclosure. Fitting the SZ2482.410 into a compatible mounting frame provides a readily accessible German VDE power socket while allowing sensitive equipment inside the cabinet to remain enclosed.
Its screw terminals support conductors up to 6 mm² and make the module particularly suitable where a secure, conventional terminal connection is preferred. The yellow RAL 1016 finish also provides clear visual identification, while installation in front of the main switch supports power access for service and maintenance requirements.
Tick the specs you need, then view products that match.
| Mounting Type | Panel mounted | |
|---|---|---|
| Accessory Type | Power Distribution | |
| Manufacturer | Rittal | |
| Series | SZ Modular Interface Flap | |
| Model | SZ2482.410 | |
| Article number | 2482410 | |
| Product type | Socket module for modular interface flap mounting frame | |
| Socket design | Germany (VDE) | |
| Rated operating voltage | 250 V AC | |
| Phases | 1-phase | |
| Frequency | 50/60 Hz | |
| Terminal type | Screw terminals | |
| Maximum terminal capacity | 6 mm² | |
| Connection position | Rear | |
| Installation position | In front of main switch | |
| Material classification | UL 94-V0 | |
| Colour | Yellow | |
| RAL colour | RAL 1016 | |
| Protection rating | IP65 with sealed flap and proper assembly | |
| Mounting compatibility | Single or double mounting frame | |
| Packaging unit | 1 pc | |
| Net weight | 0.139 kg | |
| Gross weight | 0.15 kg | |
| Customs tariff number | 85366990 | |
| EAN | 4028177490727 | |
| ETIM 9 | EC002625 | |
| ECLASS 8.0 | 27189234 |
The Rittal SZ2482.410 provides a German VDE power socket within a compatible modular interface flap mounting frame, allowing convenient power access while the main enclosure remains closed.
The socket module uses screw terminals suitable for conductors up to 6 mm², with the electrical connection located at the rear.
The module has a rated operating voltage of 250 V AC for single-phase 50/60 Hz applications.
The compatible Rittal modular interface flap assembly provides IP65 protection when the flap is sealed and the complete assembly is installed correctly.
The SZ2482.410 is supplied in yellow RAL 1016 and is designed for installation in front of the main switch, providing clear visual identification within the interface assembly.
Rittal modular interface solutions are used by panel builders, machine manufacturers and automation engineers to provide convenient access to power and communication connections while helping keep sensitive electrical equipment securely enclosed.
