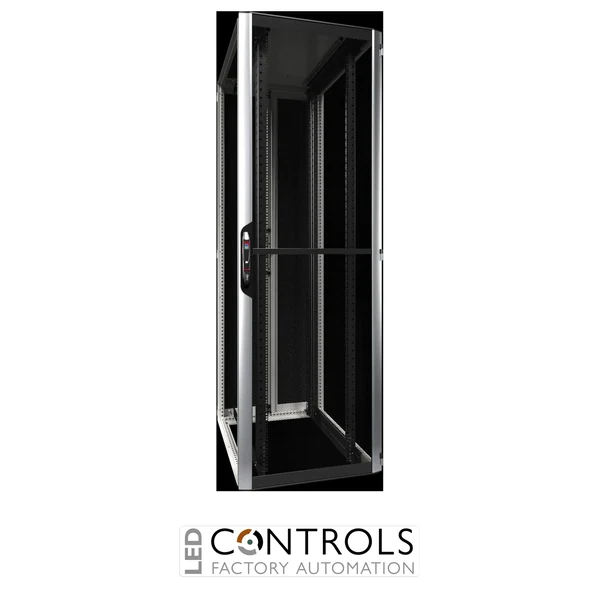

Rittal VX IT 5314.816 is a vented 47 U Dynamic network and server rack measuring 800 mm wide, 2200 mm high and 1000 mm deep, with front and rear depth-variable 482.6 mm (19-inch) mounting angles for high-load professional IT installations.
£1,580.59
The Rittal VX IT 5314.816 is a high-capacity vented network and server rack designed for professional installation of 482.6 mm (19") IT, networking and communications equipment. As part of the Rittal VX IT enclosure series, this dynamic version is engineered for room climate control applications and combines excellent airflow with flexible equipment mounting for modern data centres, server rooms and IT infrastructure.
The VX IT 5314.816 features depth-variable Dynamic 482.6 mm (19") mounting angles at the front and rear, providing a robust and adaptable installation platform for servers, network switches, patch panels and other rack-mounted equipment. Its vented front and rear doors have an approximately 85% perforated surface area, supporting efficient airflow through installed equipment when the rack is used with room-based climate control.
With dimensions of 800 mm wide × 2200 mm high × 1000 mm deep and a substantial 47 U installation capacity, the VX IT 5314.816 provides generous space for high-density IT installations. The dynamic mounting system supports a load capacity of up to 18,000 N, making this enclosure particularly suitable for demanding server and networking applications.
The Rittal VX IT Dynamic platform is designed to provide a strong and adaptable enclosure system for modern server, network and telecommunications infrastructure. The VX IT 5314.816 combines 47 U of installation space with depth-variable Dynamic 19-inch mounting angles, allowing the mounting levels to be configured for a wide range of servers, switches and supporting rack-mounted hardware.
Its highly vented front and rear doors make the enclosure particularly suitable for room climate control installations. The approximately 85% perforated door surfaces enable high volumes of conditioned room air to pass through installed equipment, while the 1000 mm enclosure depth provides generous space for deep servers, power distribution and rear cable management.
| HS Code | 94032080 |
|---|---|
| Manufacturer | Rittal |
| Series | VX IT |
| Model | VX IT 5314.816 |
| Article number | 5314.816 |
| Product type | Vented network / server rack |
| Design | Dynamic |
| Width | 800 mm |
| Height | 2200 mm |
| Depth | 1000 mm |
| Rack height | 47 U |
| Equipment mounting format | 482.6 mm (19") |
| Mounting angle design | Dynamic |
| 19-inch mounting levels | Front and rear |
| Distance between mounting levels | 700 mm as supplied |
| Free mounting space, front / rear | 87 mm / 213 mm |
| Mounting attachment | Depth stays, screw-fastened at top and bottom |
| Load capacity | 18,000 N |
| Maximum static load to UL 2416 | 15,000 N |
| General colour | RAL 7035 |
| Enclosure frame, rear door and roof colour | RAL 7035 |
| Interior installation / vent grille colour | RAL 9005 |
| Basic material | Sheet steel |
| Additional material | Aluminium |
| Front door material | Aluminium / sheet steel |
| Rear door material | 1.5 mm sheet steel |
| Mounting angle material | 2.5 mm sheet steel |
| Front door | Vented, one-piece, 180° hinges |
| Rear door | Vented, vertically divided, 180° hinges |
| Vented door surface area | Approx. 85% perforated |
| Roof | Multi-piece with side cable entry, double-sided, prepared for fan mounting plate |
| Base | Open |
| Net weight | 88.2 kg |
| Gross weight | 105.2 kg |
| EAN | 4028177945340 |
| Approvals | UL + C-UL listed |
This enclosure is designed to house 482.6 mm (19") servers, network equipment and telecommunications hardware, particularly in data centres and server rooms using room-based climate control.
The enclosure measures 800 mm wide × 2200 mm high × 1000 mm deep and provides 47 U of equipment installation space.
The VX IT 5314.816 uses depth-variable Dynamic 482.6 mm (19") mounting angles at the front and rear, providing a robust and flexible mounting platform for high-load IT equipment.
The enclosure has a specified 18,000 N load capacity, with a maximum static enclosure load of 15,000 N to UL 2416.
Yes. The enclosure is specifically designed for room climate control, with vented front and rear doors featuring approximately 85% perforated surface area to support high airflow through installed IT equipment.
Rittal VX IT Dynamic network and server racks provide a robust, high-load enclosure platform for data centres, server rooms, telecommunications systems and industrial IT infrastructure requiring flexible 19-inch equipment installation and efficient airflow for room-based climate control.
