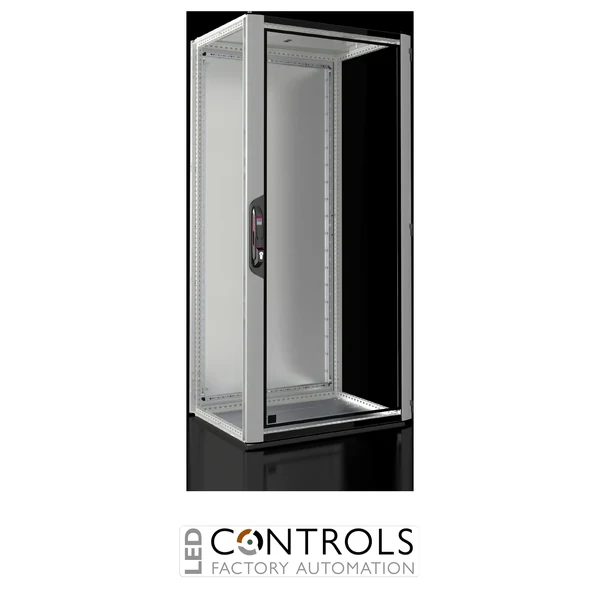

Rittal VX IT 5306.190 is a 42 U RAL 7035 network/server rack supplied as an empty enclosure measuring 800 x 2000 x 600 mm, with a glazed aluminium front door, solid sheet steel rear door and protection up to IP55 when correctly configured.
£779.52
The Rittal VX IT 5306.190 is a 42 U network/server rack with glazed front door, supplied as an empty enclosure for individual configuration. With external dimensions of 800 mm wide × 2000 mm high × 600 mm deep, it provides a robust platform for professional server, network, telecommunications and data centre installations.
Unlike preconfigured VX IT variants, the 5306.190 is supplied without 482.6 mm (19") interior installation, allowing the internal mounting system to be selected and configured around the requirements of the application. Its closed enclosure design is intended for direct climate control tailored to the individual rack and can achieve a protection category of IP55 when used with sealing or screw-fastened side panels.
The enclosure combines a VX sheet steel frame with an aluminium glazed front door incorporating 3 mm single-pane safety glass and a solid one-piece sheet steel rear door. The enclosure frame, rear door and roof are finished in RAL 7035, while RAL 9005 details and silver-coloured vertical front-door sections provide the characteristic VX IT appearance.
The key advantage of the Rittal VX IT 5306.190 is its empty-enclosure configuration. Rather than supplying a predetermined 482.6 mm (19") mounting arrangement, the enclosure provides the VX IT platform for an interior installation tailored to the equipment, mounting position, cable-management strategy and climate-control requirements of the project.
Its closed construction is particularly suitable for installations requiring enclosure-specific climate control. The glazed front door allows visual inspection of installed equipment without opening the rack, while the solid rear door, roof and multi-piece gland plate arrangement support a structured enclosure solution for servers, networking hardware and associated infrastructure.
Tick the specs you need, then view products that match.
| Device Type | Free-standing enclosure | |
|---|---|---|
| HS Code | 94032080 | |
| Manufacturer | Rittal | |
| Series | VX IT | |
| Model | VX IT 5306.190 | |
| Rittal article number | VX 5306190 | |
| Product type | Network/server rack with glazed door, empty enclosure | |
| Design | Solid, empty enclosure for individual configuration | |
| Width | 800 mm | |
| Height | 2000 mm | |
| Depth | 600 mm | |
| Rack units | 42 U | |
| Basic material | Sheet steel | |
| Additional material | Aluminium | |
| Glazed door | 3 mm single-pane safety glass | |
| Front door material | Aluminium, 1.25 mm | |
| Rear door material | Sheet steel, 1.5 mm | |
| Enclosure frame finish | Dipcoat-primed | |
| Rear door and roof finish | Dipcoat-primed and powder-coated | |
| Front door finish | Aluminium, anodised/spray-finished | |
| General colour | RAL 7035 | |
| Enclosure frame, rear door and roof colour | RAL 7035 | |
| Front door vertical sections | Silver coloured | |
| Front door horizontal sections | RAL 9005 | |
| Handle and hinge colour | RAL 9005 | |
| Front door design | Glazed aluminium, solid, one-piece, 180° hinges | |
| Rear door design | Sheet steel, solid, one-piece, 130° hinges | |
| Roof design | One-piece, solid | |
| Base design | Base tray with multi-piece solid gland plate | |
| 482.6 mm (19") mounting angle design | Without mounting angles | |
| Protection category | IP55 when used with sealing or screw-fastened side panels | |
| Pack quantity | 1 piece | |
| Net weight | 80.64 kg | |
| Gross weight | 90.8 kg | |
| EAN | 4028177944930 | |
| Customs tariff number | 94032080 | |
| Approval | UL + C-UL listed | |
| Supply includes | VX enclosure frame, glazed aluminium front door, solid sheet steel rear door, roof plate, base tray with multi-piece solid gland plate, front and rear comfort handles with 3524 E security locks, baying seal, gland plate sealing kit, 12 conductive 1 U 482.6 mm (19") fasteners, 25 conductive multi-tooth screws and IPPC pallet |
The 5306.190 is a 42 U VX IT network/server rack supplied as an empty enclosure with a glazed aluminium front door, solid sheet steel rear door, roof and base components for individual interior configuration.
The enclosure measures 800 mm wide × 2000 mm high × 600 mm deep and provides a rack height of 42 U.
No. The VX IT 5306.190 is supplied as an empty enclosure without 482.6 mm (19") mounting angles, allowing the interior installation to be configured to suit the application.
The closed VX IT enclosure can provide a protection category of IP55 when used in conjunction with sealing or screw-fastened side panels.
The enclosure has a one-piece glazed aluminium front door with 180° hinges and a one-piece solid sheet steel rear door with 130° hinges. Both front and rear closures use comfort handles for profile half-cylinders with 3524 E security locks.
Rittal VX IT network and server enclosures provide data centre professionals, system integrators and infrastructure engineers with a configurable platform for secure equipment installation, structured cabling and enclosure-specific IT infrastructure solutions.
