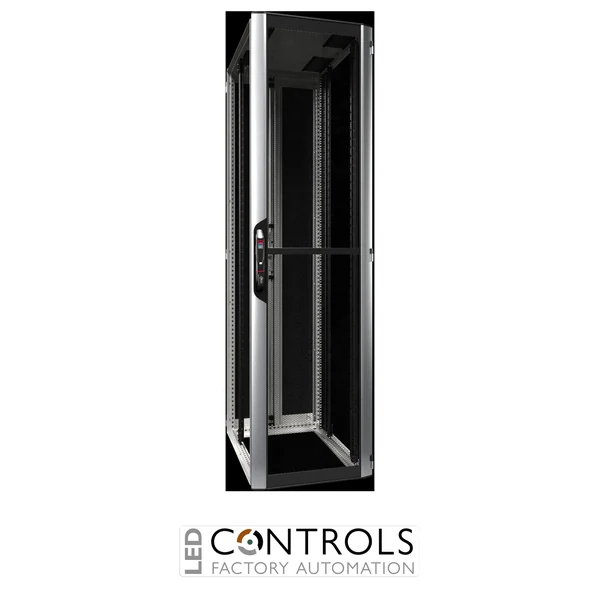

Rittal VX IT 5307.114 is a 42 U vented RAL 7035 network/server rack measuring 800 x 2000 x 800 mm with standard depth-variable 482.6 mm (19-inch) mounting angles at the front and rear, approximately 85% perforated doors and an 8000 N load capacity.
£1,347.36
The Rittal VX IT 5307.114 is a 42 U vented network/server rack designed for professional data centre, server room and telecommunications infrastructure. Measuring 800 mm wide × 2000 mm high × 800 mm deep, it combines the modular VX IT enclosure platform with standard depth-adjustable 482.6 mm (19") mounting angles at the front and rear.
Designed for room climate control, the enclosure features highly vented front and rear doors with an approximately 85% perforated surface area. This open-airflow configuration supports the movement of conditioned room air through installed servers, switches and other heat-generating IT equipment, making the rack suitable for modern data centre cooling strategies.
The VX IT 5307.114 combines a robust sheet steel enclosure frame with an aluminium/sheet steel front door and sheet steel rear door. The enclosure frame, rear door and roof are finished in RAL 7035, while the interior installation, front ventilation grille, handles and hinges use RAL 9005 detailing. A static load capacity of 8000 N supports demanding equipment installations.
The Rittal VX IT 5307.114 is designed around room-based climate control, using highly vented doors to allow conditioned air to flow through installed IT equipment. With approximately 85% perforation at both the front and rear, the enclosure provides a low-obstruction airflow path suitable for server and network environments where cooling is managed at room or aisle level.
Standard depth-variable 482.6 mm (19") mounting angles are installed at both the front and rear, giving system integrators flexibility when accommodating equipment with different installation depths. Combined with an 8000 N load capacity, open base and cable-entry provisions in the roof, the rack provides a versatile platform for structured IT infrastructure.
Tick the specs you need, then view products that match.
| Device Type | Free-standing enclosure | |
|---|---|---|
| HS Code | 94032080 | |
| Manufacturer | Rittal | |
| Series | VX IT | |
| Model | VX 5307.114 | |
| Product type | Network/server rack with vented doors | |
| Design | Vented, standard, with 482.6 mm (19") mounting angles | |
| Application | Network/server enclosure for room climate control | |
| Width | 800 mm | |
| Height | 2000 mm | |
| Depth | 800 mm | |
| Rack units | 42 U | |
| Basic material | Sheet steel | |
| Additional material | Aluminium | |
| Front door material | Aluminium, 1.25 mm | |
| Rear door material | Sheet steel, 1.5 mm | |
| Mounting angle material | Sheet steel, 2 mm | |
| General colour | RAL 7035 | |
| Enclosure frame finish | Dipcoat-primed | |
| Interior installation finish | Spray-finished | |
| Rear door and roof finish | Dipcoat-primed and powder-coated | |
| Front door finish | Aluminium, anodised/spray-finished | |
| Enclosure frame, rear door and roof colour | RAL 7035 | |
| Interior installation and front vent grille colour | RAL 9005 | |
| Handle and hinge colour | RAL 9005 | |
| Front door | Aluminium/sheet steel, vented, one-piece, 180° hinges | |
| Front door vented surface | Approximately 85% perforated | |
| Rear door | Sheet steel, vented, vertically divided, 180° hinges | |
| Rear door vented surface | Approximately 85% perforated | |
| Mounting angle design | Standard VX IT 482.6 mm (19") mounting angles | |
| 19-inch mounting levels | Front and rear | |
| Mounting angle position | Front and rear | |
| Mounting angle attachment | Screw-fastened to cross-members at the top and bottom | |
| Distance between mounting levels as supplied | 520 mm | |
| Free mounting space, front/rear | 150 mm / 130 mm | |
| Roof design | Multi-piece with side cable entry in the depth, double-sided and prepared for fan mounting plate | |
| Base design | Open | |
| Load capacity | 8000 N | |
| Maximum static load capacity to UL 2416 | 8000 N | |
| Protection category | IP00 with mounted side panels or in a bayed suite with seals | |
| Side panels | Not included | |
| Pack quantity | 1 piece | |
| Net weight | 76.72 kg | |
| Gross weight | 89.8 kg | |
| EAN | 4028177944947 | |
| ETIM 9 | EC002499 | |
| ECLASS 8.0 | 27180207 | |
| Approval | UL + C-UL listed | |
| Supply includes | VX enclosure frame, vented front and rear doors, roof plate, front and rear comfort handles with 3524 E security locks, 482.6 mm (19") mounting angles, 50 mm spacers for passive cooling where applicable, 12 conductive 1 U 19-inch fasteners, 25 conductive multi-tooth screws and IPPC pallet |
The 5307.114 is a 42 U vented VX IT network/server rack measuring 800 mm wide × 2000 mm high × 800 mm deep, supplied with standard depth-variable 482.6 mm (19") mounting angles at the front and rear.
The enclosure measures 800 mm wide × 2000 mm high × 800 mm deep and provides 42 U of rack installation height.
Yes. It is supplied with standard 482.6 mm (19") mounting angles at the front and rear. The levels are depth-variable and are supplied with a distance of 520 mm between them.
The enclosure is designed for room climate control and uses vented front and rear doors with an approximately 85% perforated surface area to support airflow through installed IT equipment.
The enclosure has a specified load capacity of 8000 N, including a maximum static load capacity of 8000 N per enclosure to UL 2416.
Rittal VX IT network and server racks provide data centre professionals, system integrators and infrastructure engineers with configurable 19-inch mounting, high-airflow enclosure designs and structured solutions for professional IT equipment installations.
