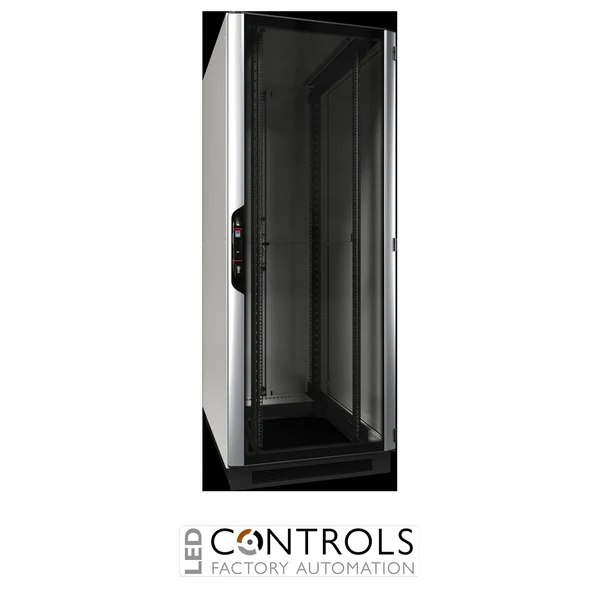

Rittal VX IT 5309.156 is a pre-configured 42 U network and server rack measuring 800 mm wide, 2000 mm high and 1000 mm deep with a 100 mm base/plinth and standard 482.6 mm (19-inch) mounting angles.
£1,548.90
The Rittal VX IT 5309.156 is a pre-configured network and server rack designed for professional installation of 482.6 mm (19") IT, networking and communications equipment. As part of the advanced Rittal VX IT enclosure series, it provides a flexible and robust platform for servers, network switches, patch panels and supporting IT infrastructure in data centres, server rooms and industrial environments.
This VX IT rack is supplied pre-assembled with practical equipment for efficient deployment, including standard 482.6 mm (19") mounting angles, screw-fastened side panels, cable management components and a 100 mm base/plinth system. The glazed aluminium front door provides clear visibility of installed equipment, while the solid, vertically divided sheet-steel rear door provides convenient rear access.
With an enclosure size of 800 mm wide × 2000 mm high × 1000 mm deep, plus a 100 mm base/plinth for an overall height of 2100 mm, the VX IT 5309.156 provides a substantial 42 U installation capacity. Its 1000 mm depth accommodates deep servers and associated cabling, while the RAL 7035 enclosure finish provides the professional appearance associated with Rittal IT infrastructure.
The Rittal VX IT platform is designed to provide an adaptable enclosure system for modern network, server and telecommunications infrastructure. The VX IT 5309.156 combines 42 U of 19-inch installation space with a 1000 mm enclosure depth, providing ample room for rack-mounted hardware, power distribution, cable routing and supporting equipment.
Its pre-configured design helps simplify installation by supplying key infrastructure components with the rack. Cable shunting rings, combination rails, conductive 19-inch fasteners and levelling components support organised equipment deployment, while the multi-piece roof provides cable entry and provision for optional fan-assisted ventilation.
Tick the specs you need, then view products that match.
| Device Type | Free-standing enclosure | |
|---|---|---|
| HS Code | 94032080 | |
| Manufacturer | Rittal | |
| Series | VX IT | |
| Model | VX IT 5309.156 | |
| Article number | 5309.156 | |
| Product type | Network / server rack | |
| Design | Standard, pre-configured | |
| Width | 800 mm | |
| Enclosure height | 2000 mm | |
| Base/plinth height | 100 mm | |
| Overall height including base/plinth | 2100 mm | |
| Depth | 1000 mm | |
| Rack height | 42 U | |
| Equipment mounting format | 482.6 mm (19") | |
| Free mounting space, front / rear | 87 mm / 193 mm | |
| General colour | RAL 7035 | |
| Interior installation / base-plinth colour | RAL 9005 | |
| Basic materials | Sheet steel, aluminium and plastic | |
| Front door material | 1.25 mm aluminium with 3 mm single-pane safety glass | |
| Rear door material | 1.5 mm sheet steel | |
| Front door | Glazed aluminium door, 180° hinges | |
| Rear door | Solid, vertically divided sheet-steel door, 180° hinges | |
| Side panels | One-piece, screw-fastened | |
| Roof | Multi-piece with side cable entry and preparation for fan mounting plate | |
| Base/plinth | VX base/plinth system, 100 mm, vented | |
| Levelling | Four M12 levelling feet with base/plinth adaptors supplied | |
| Front/rear locking | Comfort handles for profile half-cylinders with security lock 3524 E |
This enclosure is designed to house 482.6 mm (19") servers, network equipment and telecommunications hardware in professional data centre, server room and industrial IT installations.
The main enclosure measures 800 mm wide × 2000 mm high × 1000 mm deep. The supplied 100 mm base/plinth increases the overall installed height to 2100 mm.
The enclosure provides 42 U of installation capacity for compatible 482.6 mm (19") rack-mounted equipment.
Yes. The rack is supplied with a 100 mm vented Rittal VX base/plinth system, giving an overall enclosure and plinth height of 2100 mm.
The pre-configured rack includes 19-inch mounting angles, screw-fastened side panels, a glazed front door, solid divided rear door, 100 mm base/plinth, levelling feet, combination rails, cable shunting rings and installation fasteners.
Rittal VX IT network and server racks provide a robust, modular enclosure platform for data centres, server rooms, telecommunications systems and industrial IT infrastructure requiring dependable 19-inch equipment mounting, organised cable management and flexible installation options.
