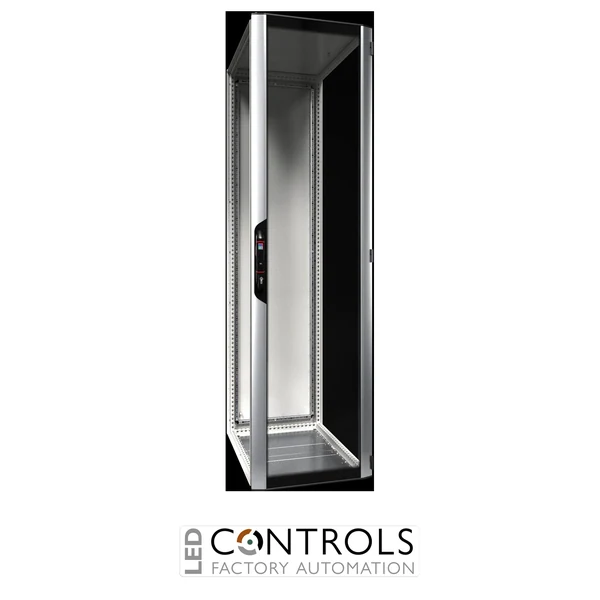

Rittal VX IT 5328.190 network and server rack empty enclosure with a glazed front door, 38 U capacity, 600 x 1800 x 800 mm dimensions and IP55 protection when correctly configured.
£750.38
The Rittal VX IT 5328.190 is a robust and highly configurable network and server rack enclosure designed to protect sensitive IT, networking and electronic equipment in demanding environments. As part of the advanced Rittal VX IT enclosure system, this empty enclosure provides a flexible platform for creating customised infrastructure solutions for data centres, communications rooms and industrial IT installations.
This VX IT rack features a glazed aluminium front door, a solid sheet steel rear door and a sealed enclosure construction suitable for direct, enclosure-based climate control. Its torsionally rigid frame, integrated 25 mm pitch pattern and accessible mounting levels simplify the installation of cable management, power distribution, climate control and equipment mounting accessories.
With external dimensions of 600 × 1800 × 800 mm and an available installation height of 38 U, the Rittal VX IT 5328.190 provides generous equipment capacity while maintaining a compact footprint. The enclosure is supplied without pre-configured 482.6 mm (19-inch) mounting angles, allowing system designers to create an interior configuration tailored to the application.
The Rittal VX IT 5328.190 provides a protected enclosure platform for servers, switches, patch panels, power distribution equipment and industrial electronic systems. Its sealed design makes it suitable for applications where equipment requires protection from dust, moisture and environmental contamination.
The symmetrical VX frame incorporates mounting levels that are accessible from both inside and outside the enclosure. Integrated square holes support cage nuts and metric screws up to M8, while the 25 mm pitch pattern provides extensive flexibility when installing rails, supports, cable management accessories and other interior components.
| Manufacturer | Rittal |
|---|---|
| Series | VX IT |
| Model | VX 5328.190 |
| Article number | 5328190 |
| Product type | Network and server rack empty enclosure |
| Installation height | 38 U |
| Width | 600 mm |
| Height | 1800 mm |
| Depth | 800 mm |
| Protection category | IP55 with baying seal or screw-fastened side panels |
| Impact resistance | IK08 |
| Frame material | Sheet steel |
| Front door material | Aluminium with 3 mm single-pane safety glass |
| Rear door material | Sheet steel |
| Front door design | Glazed, solid, one-piece, 180° hinges |
| Rear door design | Solid, one-piece, 130° hinges |
| Roof design | One-piece, solid |
| Base design | Multi-piece base tray with gland plate |
| Mounting angles | Not included |
| General colour | RAL 7035 |
| Net weight | 66.95 kg |
| Gross weight | 76.6 kg |
| EAN | 4028177945500 |
| Customs tariff number | 94032080 |
| Approval | UL and C-UL listed |
| HS Code | 94032080 |
The enclosure is designed to house and protect networking, server, communications and electronic equipment in data centres, industrial facilities and other IT environments.
The Rittal VX IT 5328.190 provides an installation height of 38 U.
No. The enclosure is supplied without pre-configured 482.6 mm (19-inch) mounting angles, allowing the interior to be configured for the specific installation.
The enclosure can achieve IP55 protection when used with an appropriate baying seal or screw-fastened side panels.
No. Side panels are not included and must be selected separately when required for a stand-alone installation.
Rittal VX IT enclosures provide a scalable and configurable platform for securely housing modern network, server and electronic infrastructure in data centres and industrial environments.
