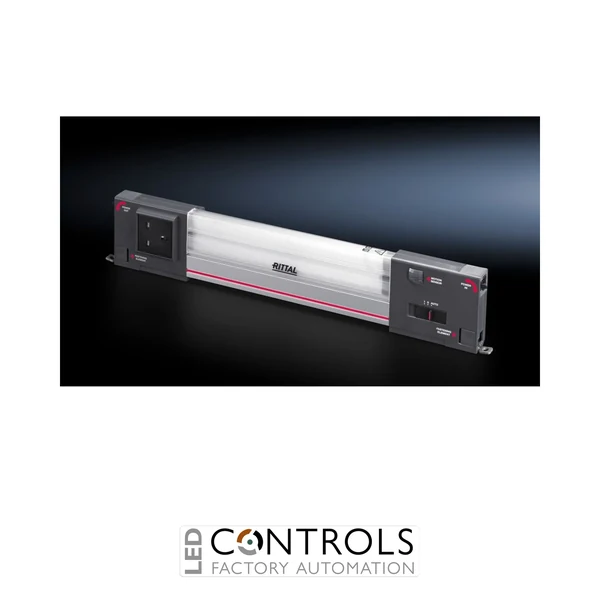

Rittal SZ2500.311 is a 13 W LED enclosure system light delivering 1,200 lm of 4000 K neutral-white illumination with an integrated GB Type G socket and motion detector for industrial control cabinets.
£193.14
The Rittal SZ2500.311 is a high-performance LED system light for electrical enclosures and control cabinets, combining powerful illumination with an integrated GB Type G socket and motion detector. Designed specifically for enclosure applications, it delivers optimum illumination throughout the cabinet, helping engineers clearly see electrical, control and automation components during installation, inspection and maintenance.
Producing a luminous flux of 1,200 lm with a neutral-white colour temperature of 4000 K, the SZ2500.311 provides bright, uniform illumination while consuming only 13 W. It operates from a 100–230 V AC, single-phase, 50/60 Hz supply and features 3-pole power infeed and through-wiring connections for flexible integration into enclosure lighting systems.
The integrated GB Type G socket to BS 1363 provides a convenient power outlet for service and maintenance equipment, while the built-in motion detector enables practical automatic light activation. A 90° rotating connector, adjustable light direction and adjustable light distribution further simplify installation and allow the illumination to be tailored to the enclosure layout.
Effective internal lighting makes commissioning, inspection and maintenance of electrical cabinets significantly easier. With its 1,200 lm output, the Rittal SZ2500.311 provides bright neutral-white illumination that helps engineers identify terminals, wiring, protection devices and automation components throughout the enclosure.
The integrated motion detector can activate the lighting when access is required, while the GB socket provides a convenient power connection for compatible service equipment. Adjustable light direction, adjustable light distribution and the 90° rotating connector allow the system light to be configured around the requirements of the individual enclosure.
Tick the specs you need, then view products that match.
| Device Type | Panel Light | |
|---|---|---|
| Accessory Type | Power Distribution | |
| Manufacturer | Rittal | |
| Series | SZ LED System Light | |
| Model | SZ2500.311 | |
| Article number | 2500311 | |
| Product type | LED enclosure system light with socket and motion detector | |
| Power consumption | 13 W | |
| Luminous flux | 1,200 lm | |
| Light colour | Neutral white | |
| Colour temperature | 4000 K | |
| Rated operating voltage | 100–230 V AC | |
| Phases | 1-phase | |
| Frequency | 50/60 Hz | |
| Socket | GB Type G, BS 1363 | |
| Motion detector | Yes | |
| Connection options | 3-pole infeed and 3-pole through-wiring | |
| Protection rating | IP20 | |
| Protection class | II, all-insulated | |
| Overvoltage category | II | |
| Rated impulse withstand voltage, phase to earth | 2500 V AC | |
| Rated insulation voltage | 300 V AC | |
| Width | 437 mm | |
| Height | 85 mm | |
| Depth | 44 mm | |
| Operating temperature | -20 to +55 °C | |
| Light body material | Extruded aluminium | |
| Light cover material | Polycarbonate | |
| Light end material | PC-ABS | |
| Enclosure colour | RAL 7016 | |
| Installation type | Screw fastening or clip attachment | |
| Installation option | Directly onto enclosure sections with 25 mm pitch pattern | |
| Supply includes | Assembly screws | |
| Packaging unit | 1 pc | |
| Net weight | 0.68 kg | |
| Gross weight | 0.706 kg | |
| Customs tariff number | 94054990 | |
| EAN | 4028177811317 | |
| ETIM 9 | EC000321 | |
| ECLASS 8.0 | 27189241 |
The Rittal SZ2500.311 is an LED system light for electrical enclosures and control cabinets, providing powerful internal illumination together with an integrated GB socket and motion detector.
The LED system light produces 1,200 lm of neutral-white light with a colour temperature of 4000 K.
The SZ2500.311 incorporates a GB Type G socket to BS 1363, making it suitable for compatible UK electrical equipment.
Yes. The system light has an integrated motion detector for convenient automatic illumination when access to the enclosure is required.
The system light operates from a 100–230 V AC, single-phase, 50/60 Hz supply and has a power consumption of 13 W.
Rittal LED enclosure lighting solutions are widely used by panel builders, machine manufacturers and industrial engineers to provide bright, efficient and convenient illumination for electrical and automation equipment during commissioning, servicing and maintenance.
