Why Choose the ABB 831132 ARIA 86 Glazed Door Electrical Enclosure?

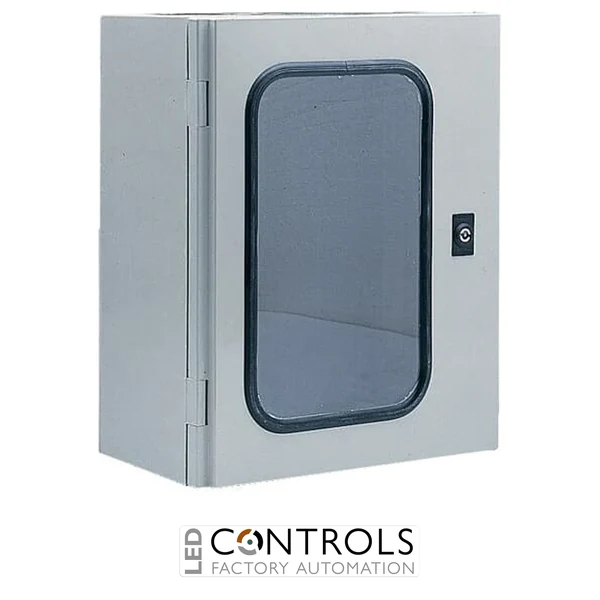

The ABB 831132 ARIA 86 Electrical Enclosure is a robust, general-purpose electrical cabinet designed to house and protect electrical distribution, control and switching equipment. Measuring 635 mm wide × 835 mm high × 300 mm deep, this enclosure features a glazed viewing door and a secure three-point locking mechanism. Its combination of equipment visibility, protective construction and generous internal space makes it a practical choice for professional electrical installations.
Manufactured from hot-pressed, glass-fibre reinforced polyester, the ABB 831132 provides a strong, corrosion-resistant, non-metallic enclosure body. The cabinet is finished in RAL 7035 light grey and incorporates a transparent viewing section that allows suitable equipment, indicators and displays to be inspected without routinely opening the outer door. The enclosure has a product-specific IP54 ingress protection rating and IK07 mechanical impact resistance, making it suitable for appropriately specified commercial and industrial environments.
Identified by ABB extended product type AR086T33 and order code 4TBA831132C0100, this enclosure forms part of the ABB ARIA universal polyester enclosure range. Its single glazed door features a 3 mm double-bit lock with three-point closure, while internal threaded mounting provisions support compatible ABB ARIA mounting plates and frames. The cabinet provides a flexible foundation for building electrical assemblies where protection, accessibility and visual monitoring are important.
Key Advantages
- Glazed viewing door allows suitable internal equipment, indicators and displays to be inspected without opening the enclosure.
- IP54 ingress protection provides protection against harmful dust ingress and water splashing when correctly installed.
- IK07 mechanical impact resistance supports durability in appropriately selected installation environments.
- Glass-fibre reinforced polyester construction combines mechanical strength with corrosion resistance.
- 635 × 835 × 300 mm external dimensions provide substantial space for electrical equipment and cable management.
- Three-point locking mechanism secures the enclosure door at multiple positions.
- 3 mm double-bit lock provides a defined locking arrangement for electrical cabinet access.
- RAL 7035 light grey finish offers a professional appearance for industrial and commercial installations.
- Non-metallic enclosure body supports protective insulation within appropriately designed electrical assemblies.
- 1,000 V rated insulation voltage supports suitable low-voltage electrical applications.
- Self-extinguishing, halogen-free polyester material offers useful characteristics for electrical equipment housing.
- Surface-mounted construction supports installation on suitable walls and supporting structures.
- Internal mounting provisions accommodate compatible ABB ARIA equipment mounting accessories.
- 300 mm enclosure depth provides room for suitable components, wiring and installation clearances.
- Part of the established ABB ARIA 86 electrical enclosure system.
Key Features
- ABB ARIA 86 universal polyester electrical enclosure.
- Product model: 831132.
- ABB extended product type: AR086T33.
- ABB order code: 4TBA831132C0100.
- Enclosure configuration: Cabinet with glazed viewing door.
- Enclosure material: Hot-pressed, glass-fibre reinforced polyester.
- Colour: RAL 7035 light grey.
- External width: 635 mm.
- External height: 835 mm.
- External depth: 300 mm.
- Ingress protection: IP54.
- Mechanical impact resistance: IK07.
- Rated insulation voltage: 1,000 V.
- Door configuration: Single transparent viewing door.
- Locking mechanism: Three-point closure.
- Lock type: 3 mm double-bit.
- Mounting method: Surface mounted.
- Material temperature resistance: Up to 70 °C continuously.
- Peak material temperature resistance: Up to 130 °C.
- Material characteristics: Self-extinguishing and halogen-free.
- Internal accessory mounting: Threaded mounting provisions for suitable plates and frames.
Glazed Door Visibility, IP54 Protection and Secure Three-Point Locking
The ABB 831132 AR086T33 is designed for electrical installations where visual inspection of equipment is useful. Its glazed door allows suitable instruments, status indicators and control equipment to remain visible while the cabinet is closed. This can help maintenance personnel identify operating conditions before accessing the enclosure. The viewing section does not remove the need for appropriate electrical isolation, and the cabinet must still be opened whenever inspection or maintenance requires direct access to internal components.
The enclosure's IP54 rating is an important distinction for this glazed-door model. IP54 indicates protection against dust ingress sufficient to prevent harmful deposits and protection against splashing water from any direction. The IK07 rating describes its mechanical impact resistance. These ratings apply to the specified enclosure configuration under the relevant test conditions and should not be confused with the higher ratings available on some solid-door ARIA models. Cable glands, drilled entries, seals and other modifications must be correctly selected and installed to maintain the required protection of the finished assembly.
The cabinet body is manufactured from glass-fibre reinforced polyester, which provides corrosion resistance and protective insulating properties. ABB specifies a 1,000 V rated insulation voltage for the enclosure material system, together with continuous temperature resistance up to 70 °C and peak material resistance up to 130 °C. These are material characteristics rather than permissible operating limits for every device installed inside the cabinet. The three-point locking door and internal mounting provisions help support a professionally assembled installation, subject to correct equipment selection, thermal assessment and installation practices.
Typical Applications
- Electrical control cabinets requiring a glazed viewing door.
- Industrial control panels with visible status indicators or displays.
- Commercial electrical distribution and switching equipment.
- Building management and building services control systems.
- Industrial automation and process control installations.
- Electrical monitoring equipment requiring visual inspection.
- Surface-mounted electrical enclosures in appropriately assessed environments.
- Electrical equipment installations requiring IP54 ingress protection.
- Control panels with components positioned behind a transparent viewing door.
- Custom electrical distribution assemblies using compatible ABB ARIA accessories.
- Replacement or refurbishment of ABB ARIA 86 electrical cabinets.
- Professional electrical panel-building and maintenance applications.
