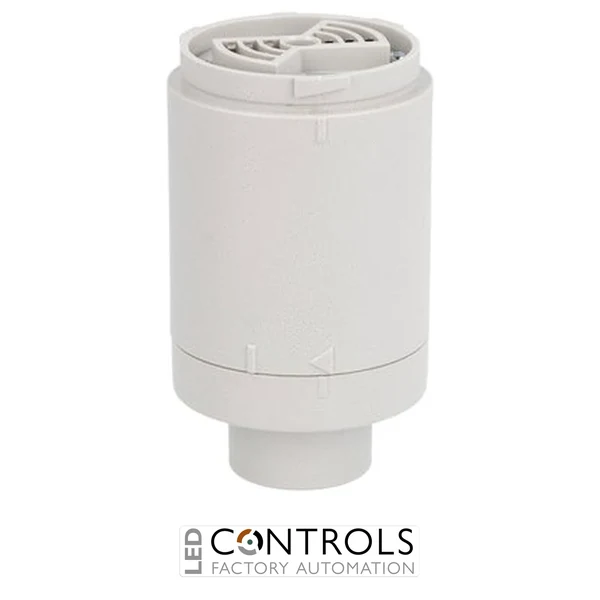

Lovato LTN50MW024 is a 50 mm tube-mounted wiring module for LTN50 modular signal towers, designed for 12–24 V DC operation with spring terminals and IP65 protection.
£47.16
The Lovato LTN50MW024 is a Ø50 mm wiring module for modular signal towers, designed for use with the Lovato LTN50 signalling system. It provides the electrical connection and power interface for compatible light and sound modules used in industrial machinery, production lines and automation equipment.
Designed for a 12–24 V DC supply, the LTN50MW024 supports low-voltage industrial signalling installations and is intended for tube mounting. Its spring-terminal wiring system allows straightforward connection of control conductors while maintaining a compact modular format.
The module provides IP65 protection as part of a correctly assembled signal tower and is housed in durable ABS. With a power consumption of 1 VA and an operating temperature range of -30 to +50 °C, it is suitable for demanding industrial signalling applications.
A wiring module forms the electrical base of a modular signal tower, distributing the control supply to the installed visual and audible signalling elements. The Lovato LTN50MW024 provides this interface for 12–24 V DC LTN50 assemblies while allowing the individual signalling modules to be stacked according to the machine’s indication requirements.
Its tube-mounting design makes it suitable for raised signal tower installations where improved visibility is required. Spring terminals simplify field wiring and support secure conductor retention in machinery, production and factory-automation environments.
Tick the specs you need, then view products that match.
| Device Type | Wiring Module | |
|---|---|---|
| Mounting Type | Tube / pole | |
| Coil / Supply Voltage | 12–24 V DC | |
| IP Rating | IP65 | |
| Manufacturer | Lovato Electric | |
| Series | LTN | |
| Model | LTN50MW024 | |
| Product type | Signal tower wiring module | |
| System type | Modular signal tower | |
| Compatible tower diameter | 50 mm / 1.97 in | |
| Supply voltage | 12–24 V DC | |
| Power consumption | 1 VA | |
| Mounting type | Tube mounting | |
| Terminal type | Spring terminals | |
| Conductor section | 0.25–1.5 mm² | |
| Conductor size | AWG 24–16 | |
| IEC degree of protection | IP65 | |
| Housing material | ABS | |
| Operating temperature | -30 to +50 °C | |
| Product weight | 98 g | |
| ETIM classification | EC001154 – Stand for signal tower without tube | |
| EAN | 8013975294369 | |
| HS code | 85318040 | |
| Certification | cULus | |
| Standards | IEC/EN/BS 60947-5-1; IEC/EN/BS 60947-1; UL 508; CSA C22.2 No. 14 |
The LTN50MW024 is the wiring and power module for compatible Ø50 mm Lovato LTN50 modular signal towers, providing the electrical interface for the installed signalling elements.
The module is designed for a 12–24 V DC supply.
The LTN50MW024 is designed for tube mounting as part of a modular LTN50 signal tower assembly.
The module uses spring terminals and accepts conductors from approximately 0.25 to 1.5 mm².
The LTN50MW024 is specified with an IP65 IEC degree of protection when correctly incorporated into the compatible signal tower assembly.
Lovato Electric LTN modular signal tower components provide flexible visual and audible signalling solutions for machinery, manufacturing equipment and industrial automation systems.
