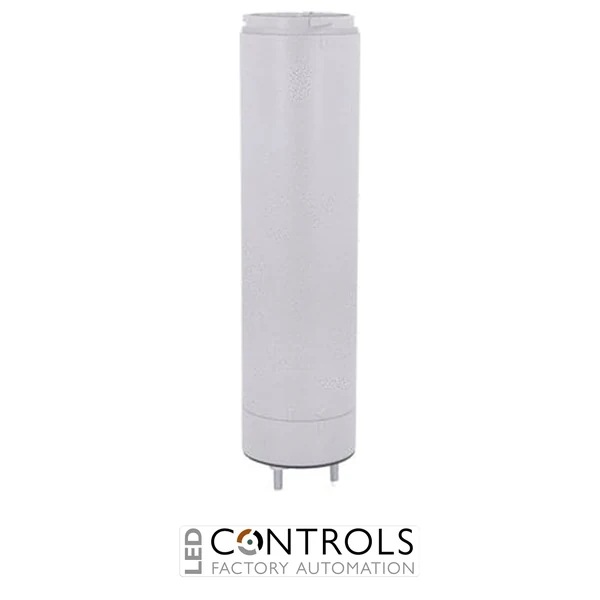

Lovato LTN50MWB230 is a 110–230 V AC wiring base module for direct screw mounting of 50 mm LTN modular signal towers, featuring spring terminals, an ABS housing and IP65 protection.
£85.84
The Lovato LTN50MWB230 is a 50 mm wiring base module designed for direct screw mounting of modular Lovato LTN signal towers. Operating from a wide 110–230 V AC supply, it provides the electrical connection and mounting base required to build a compatible industrial visual or audible signalling assembly.
Part of the Lovato LTN series, the LTN50MWB230 is specifically designed for direct screw mounting, allowing a signal tower to be installed without an extension tube and separate fixing base. Compatible LTN50 light and sound modules can then be stacked above the wiring module to create the required machine-status signalling arrangement.
The module features an ABS housing, spring terminals and IP65 protection. With an operating temperature range of -30 to +50 °C and compliance with recognised IEC, UL and CSA standards, it provides a robust base for industrial signalling installations.
The LTN50MWB230 provides both the electrical wiring interface and direct mounting point for a modular LTN50 signal tower. Unlike LTN wiring modules intended for tube mounting, the MWB version is designed to be secured directly by screws, simplifying installations where an extension tube and separate fixing base are unnecessary.
The LTN50 modular system can accommodate up to five light modules with a top cover, or up to four light modules plus one sound module. This allows the LTN50MWB230 to form the base of anything from a simple single-stage indicator to a multi-level visual and audible machine-status signalling system.
Tick the specs you need, then view products that match.
| Device Type | Wiring Module | |
|---|---|---|
| Diameter | 50 mm | |
| Mounting Type | Wall / surface | |
| Coil / Supply Voltage | 110–230 V AC | |
| IP Rating | IP65 | |
| Manufacturer | Lovato Electric | |
| Series | LTN | |
| Model | LTN50MWB230 | |
| Product type | Signal tower wiring base module | |
| Configuration | Modular | |
| Component type | Wiring module | |
| Supply voltage | 110–230 V AC | |
| Diameter | 50 mm / 1.97 in | |
| Mounting method | Direct screw mounting | |
| Housing material | ABS | |
| Terminal type | Spring terminals | |
| IEC conductor size | 0.25–1.5 mm² | |
| AWG conductor size | 24–16 AWG | |
| Power consumption | 1 VA | |
| IEC degree of protection | IP65 | |
| Operating temperature | -30 to +50 °C | |
| Product weight | approx. 237 g | |
| ETIM classification | EC001154 – Stand for signal tower without tube | |
| EAN | 8013975318478 | |
| HS code | 85318040 | |
| Certifications | cULus | |
| Conformity | IEC/EN/BS 60947-5-1, IEC/EN/BS 60947-1, UL 508, CSA C22.2 No. 14 |
The LTN50MWB230 operates from a 110–230 V AC supply, making it suitable for a broad range of AC-powered industrial signalling installations.
No. The LTN50MWB230 is designed for direct screw mounting, so it can be installed without an extension tube and separate fixing base.
The module is designed for the modular Lovato LTN signal tower system with a nominal diameter of 50 mm / 1.97 in.
The LTN50MWB230 uses spring terminals and accepts IEC conductor cross-sections from 0.25 to 1.5 mm².
The wiring module has an IP65 IEC degree of protection and is specified for operation from -30 to +50 °C.
Lovato Electric LTN signal towers provide modular visual and audible signalling for industrial machinery and automation systems, with dedicated wiring modules, light modules and sound modules enabling flexible machine-status signalling configurations.
