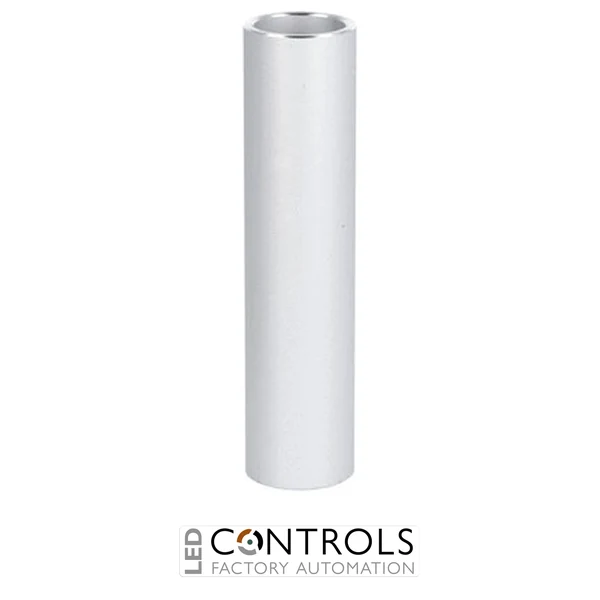

Lovato LTN70P100 is a 100 mm non-threaded metal extension tube for Ø70 mm LTN70 modular signal towers, providing additional mounting height and clearance for industrial signalling installations.
£8.14
The Lovato LTN70P100 is a 100 mm metal extension tube designed for Lovato LTN series Ø70 mm modular signal towers. It provides additional separation between the signal tower and its mounting base, helping position visual and audible signalling modules for improved visibility on industrial machinery, control enclosures and automated equipment.
As part of the Lovato Electric LTN70 modular signal tower range, the LTN70P100 provides a compact way to increase the mounting height of a signalling assembly. Its 100 mm length is suitable where additional clearance is required above machinery or an enclosure without the greater elevation provided by longer extension tubes.
The LTN70P100 is manufactured from metal and is the non-threaded version of the 100 mm LTN70 extension tube. Lovato specifies non-threaded extension tubes for use with the LTN70BP2 wall-mount plastic fixing base, providing the correct mounting arrangement for this configuration.
Correct positioning is important for ensuring that industrial signal towers remain clearly visible to operators. The Lovato LTN70P100 provides 100 mm of additional mounting height, helping raise an LTN70 signalling assembly above control enclosures, machine structures and other potential visual obstructions.
The non-threaded LTN70P100 forms part of Lovato's modular signal tower mounting system and is specified for installations using the compatible LTN70BP2 wall-mount plastic base. Combined with suitable LTN70 light, sound and wiring modules, it supports a flexible signalling solution for communicating machine status, warnings and alarms.
Tick the specs you need, then view products that match.
| Device Type | Mounting / Base | |
|---|---|---|
| Manufacturer | Lovato Electric | |
| Series | LTN | |
| Model | LTN70P100 | |
| Product designation | Signal tower Ø70 mm / 2.75 in | |
| Product type | Signal tower extension tube | |
| Component type | Extension tube | |
| Signal tower type | Modular | |
| Compatible series | LTN70 | |
| Compatible signal tower diameter | 70 mm / 2.75 in | |
| Extension tube length | 100 mm | |
| Material | Metal | |
| Connection type | Non-threaded | |
| Operating temperature | -30 to +50 °C | |
| Product weight | 43 g | |
| Order weight | 49 g | |
| Quantity per package | 5 | |
| Package dimensions | 70 × 65 × 110 mm | |
| Package volume | 100.1 cm³ | |
| ETIM classification | EC001155 - Tube for signal tower | |
| Certification | cULus | |
| Standards | IEC/EN/BS 60947-5-1, IEC/EN/BS 60947-1, UL508, CSA C22.2 No. 14 | |
| EAN | 8013975294000 | |
| HS code | 85318040 |
The LTN70P100 is a 100 mm metal extension tube used to provide additional mounting height for Lovato LTN70 Ø70 mm modular signal towers.
The LTN70P100 has an extension length of 100 mm.
No. The LTN70P100 is the non-threaded 100 mm extension tube. Lovato also offers the LTN70P100T where a threaded-end extension tube is required.
The LTN70P100 is designed for Lovato LTN70 Ø70 mm / 2.75 in modular signal towers.
Lovato specifies the non-threaded extension tube for the LTN70BP2 wall-mount plastic fixing base. Other LTN70 fixing-base configurations requiring an extension tube use the corresponding threaded-end version.
Lovato Electric LTN modular signal tower accessories provide machine builders, panel builders and automation engineers with flexible mounting solutions for positioning industrial status, warning and alarm indicators across machinery and automated equipment.
