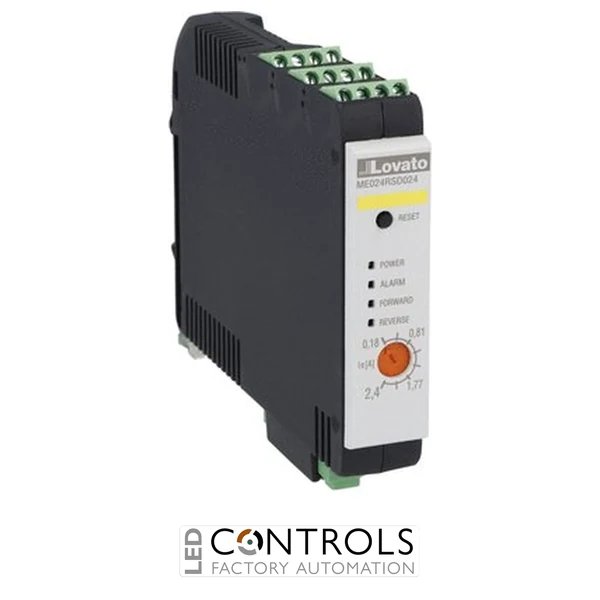

Lovato ME024RSD024 is a 2.4 A electronic reversing motor starter with a 40–500 V AC operational range, 24 V DC auxiliary supply, adjustable Class 10A thermal motor protection and built-in SIL 3 / PL e Safe Torque Off functionality.
£148.64
The Lovato ME024RSD024 is a compact electronic reversing motor starter with integrated STO (Safe Torque Off), designed to provide forward/reverse motor control, electronic switching and motor thermal protection in a single device. It has a rated operational current of 2.4 A AC-3 / AC-53a and supports operational voltages from 40–500 V AC.
Unlike conventional reversing arrangements that require multiple electromechanical contactors and interlocking components, the ME024RSD024 integrates the reversing function electronically. Its built-in Class 10A thermal motor protection has an adjustable trip range of 0.18–2.4 A, allowing the starter to be configured for the rated current of the connected motor.
For safety-related machine applications, the ME024RSD024 incorporates a Safe Torque Off (STO) function rated to SIL 3 according to IEC 61508 and Performance Level e according to ISO 13849-1. A 24 V DC auxiliary and control supply, diagnostic outputs and compact construction make it a versatile solution for modern industrial automation and machine-control systems.
The ME024RSD024 combines several functions traditionally implemented using separate motor-control components. Electronic forward/reverse switching provides the reversing function, while the integrated Class 10A thermal protection monitors the motor load and can be adjusted from 0.18–2.4 A to suit the connected motor.
Its integrated STO safety function provides a means of preventing torque generation when correctly incorporated into the machine safety system. With safety capability up to SIL 3 and PL e, the ME024RSD024 is particularly suited to modern machinery where compact motor control and safety-related stopping functions need to be coordinated within the automation architecture.
Tick the specs you need, then view products that match.
| Starter Type | Reversing (REV) | |
|---|---|---|
| Device Type | Electronic compact starter | |
| Safety Functions | STO (Safe Torque Off) | |
| Mounting Type | DIN rail | |
| Power | 0.75 kW | |
| Current Range | 0.18–2.4 A | |
| Product Series | Lovato ME | |
| Manufacturer | Lovato Electric | |
| Family | Electromechanical & Electronic Starters | |
| Series | ME | |
| Order code | ME024RSD024 | |
| Product designation | Electronic reversing starter with STO, 2.4 A | |
| Function | Reversing starter | |
| Rated operational voltage | 40–500 V AC | |
| Rated frequency | 50/60 Hz | |
| Auxiliary/control supply | 24 V DC | |
| Rated current AC-3 / AC-53a | 2.4 A | |
| Motor rating at 400 V | 0.75 kW | |
| Thermal protection | Integrated, Class 10A | |
| Thermal trip adjustment range | 0.18–2.4 A | |
| Safe Torque Off | Built-in | |
| STO safety integrity level | SIL 3 according to IEC 61508 | |
| STO performance level | PL e according to ISO 13849-1 | |
| Power dissipation | 1.2–9.4 W | |
| Number of digital outputs | 3 | |
| Output configuration | 1 relay output with changeover contact + 2 PNP digital outputs | |
| Relay output rating | 3 A at 230 V AC-15; 2 A at 24 V DC-13 | |
| PNP digital output rating | 40 mA at 24 V DC | |
| Terminal type | Screw terminals | |
| IEC conductor range | 0.2–2.5 mm² | |
| AWG conductor range | AWG 24–14 | |
| Weight | 300 g | |
| Quantity per package | 1 | |
| EAN | 8013975321003 | |
| HS code | 85365003 |
The ME024RSD024 is a 2.4 A electronic reversing motor starter with integrated Class 10A thermal motor protection and a built-in STO (Safe Torque Off) safety function.
The integrated thermal protection has an adjustable trip range of 0.18–2.4 A, allowing it to be matched to a suitable motor within this range.
The motor-side rated operational voltage range is 40–500 V AC at 50/60 Hz, while the starter requires a 24 V DC auxiliary and control supply.
Yes. The ME024RSD024 incorporates a built-in STO safety function with safety capability up to SIL 3 according to IEC 61508 and PL e according to ISO 13849-1.
The starter provides three outputs: one relay output with a changeover contact and two 24 V DC PNP digital outputs for signalling and control-system integration.
Lovato ME electronic motor starters provide machine builders and automation engineers with compact solutions that integrate motor switching, reversing, thermal protection and functional-safety capabilities for modern industrial machinery.
