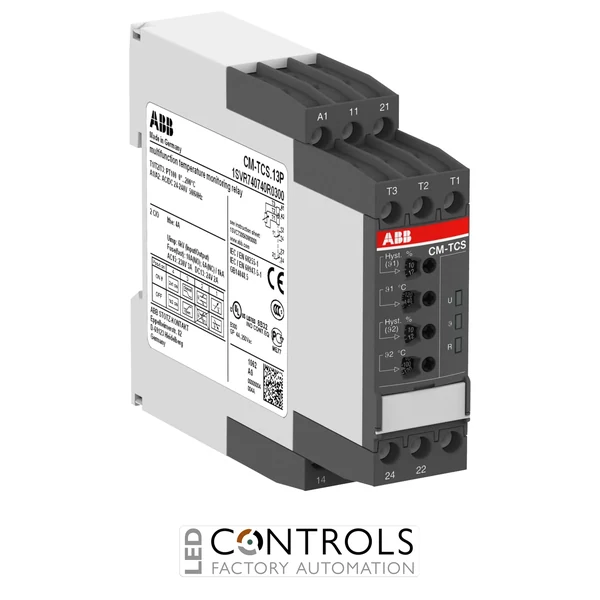

ABB CM-TCS.13P temperature monitoring relay 1SVR740740R0300 with a 0 to +200 °C measuring range, PT100 sensor input, two adjustable thresholds, 24–240 V AC/DC supply and two changeover outputs.
£175.83
The ABB CM-TCS.13P is a precise temperature monitoring relay designed for temperature supervision in industrial machinery, processes and control systems. Supplied under ABB order code 1SVR740740R0300, it belongs to the ABB CM-TCS temperature monitoring relay series and provides a measuring range of 0 to +200 °C.
The CM-TCS.13P uses a PT100 temperature sensor and provides overtemperature, undertemperature and window monitoring through one sensor circuit. Its two adjustable thresholds allow precise monitoring of upper and lower temperature limits, while adjustable hysteresis supports stable switching around the selected setpoints.
Operating from a wide 24–240 V AC/DC control supply, the CM-TCS.13P provides 2 changeover (SPDT) output contacts rated at 250 V / 4 A. Maintenance-free Easy Connect push-in terminals, sensor-circuit supervision and a compact 22.5 mm DIN rail housing make it well suited to industrial control-panel applications.
The ABB CM-TCS.13P evaluates the resistance of a connected PT100 temperature sensor and compares the measured temperature with its configured threshold values. When the temperature exceeds or falls below the selected limits, the output relays change state according to the configured monitoring function, enabling alarms, contactors or other control equipment to respond.
Its 0 to +200 °C measuring range makes the CM-TCS.13P suitable for a broad range of machinery and process applications. Two adjustable thresholds, adjustable hysteresis and sensor-circuit fault detection provide flexible and dependable temperature supervision for industrial automation and control systems.
Tick the specs you need, then view products that match.
| Monitoring Function | Temperature / thermistor | |
|---|---|---|
| Series | CM-TCS | |
| ABB order code | 1SVR740740R0300 | |
| Product group | 310921-Measuring & Monitoring Relays | |
| Product type | Temperature monitoring relay | |
| Measuring range | 0 to +200 °C | |
| Sensor type | PT100 | |
| Number of sensor circuits | 1 | |
| Monitoring functions | Overtemperature, undertemperature and window monitoring | |
| Thresholds | 2 adjustable thresholds | |
| Hysteresis | 2–20%, adjustable | |
| Sensor monitoring | Short-circuit and interrupted-wire detection | |
| Operating principle | Open- or closed-circuit, configurable | |
| Rated control supply voltage | 24–240 V AC/DC | |
| Outputs | 2 changeover (SPDT) contacts | |
| Contact rating | 250 V / 4 A | |
| Rated operational current AC-12 | 4 A at 230 V AC | |
| Rated operational current AC-15 | 3 A at 230 V AC | |
| Rated operational current DC-12 | 4 A at 24 V DC | |
| Rated operational current DC-13 | 2 A at 24 V DC | |
| Minimum switching capacity | 24 V / 10 mA | |
| Maximum output circuit operating voltage UL/CSA | 300 V AC | |
| UL/CSA contact rating | B300 | |
| Connection technology | Easy Connect push-in terminals | |
| Protection rating | Housing IP50, terminals IP20 | |
| Operating temperature | -40 to +60 °C | |
| Storage temperature | -40 to +85 °C | |
| Mounting | DIN rail | |
| Dimensions (H × W × D) | 85.6 × 22.5 × 103.7 mm | |
| Net weight | approx. 0.14 kg | |
| EAN | 4016779852791 |
The CM-TCS.13P is used for industrial temperature monitoring, providing overtemperature, undertemperature and window monitoring using a PT100 temperature sensor.
The CM-TCS.13P provides a measuring range of 0 to +200 °C.
The CM-TCS.13P is designed for use with a PT100 resistance temperature sensor through its single sensor circuit.
The CM-TCS.13P operates from a wide 24–240 V AC/DC control supply.
The CM-TCS.13P provides 2 changeover (SPDT) output contacts rated at 250 V / 4 A for integration with alarm, switching and control circuits.
ABB CM-TCS temperature monitoring relays provide dependable PT100-based temperature supervision for machinery, processes and industrial control systems, combining adjustable thresholds, sensor-circuit monitoring and compact DIN rail installation.
