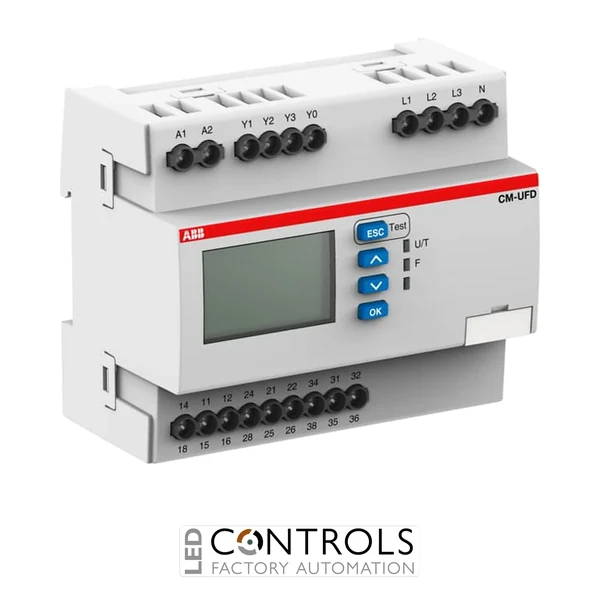

ABB 1SVR560730R3402 CM-UFD.M33 grid feeding monitoring relay with 3 change-over contacts, voltage and frequency monitoring, RoCoF and vector shift detection for renewable energy interface protection.
£727.03
The ABB 1SVR560730R3402, also known as CM-UFD.M33, is a multifunctional grid feeding monitoring relay designed to provide interface protection between renewable energy systems and the public grid. As part of ABB’s CM-UFD range, it monitors key voltage and frequency parameters to help maintain grid stability and support safe disconnection when abnormal supply conditions are detected.
This relay is suitable for renewable energy installations such as solar PV, wind and distributed generation systems where reliable grid monitoring is required. It provides monitoring functions including overvoltage, undervoltage, overfrequency, underfrequency, rate of change of frequency and vector shift detection.
With a measuring range of L-L 0–550 V AC and L-N 0–317 V AC, the CM-UFD.M33 is suitable for a wide range of single-phase and three-phase grid connection applications. Its 3 change-over contact outputs allow signalling to external decoupling devices such as contactors, switch-disconnectors or circuit breakers.
Grid feeding monitoring relays such as the ABB CM-UFD.M33 are used to monitor the quality and stability of the public grid when renewable energy systems are feeding power into it. If voltage or frequency values move outside permitted limits, the relay changes state and can signal an external disconnection device to separate the generation system from the grid.
The ABB 1SVR560730R3402 supports reliable grid protection by combining multiple monitoring functions in one compact DIN rail device. It is particularly useful in systems where accurate monitoring, fast response and dependable signalling are required for safe renewable energy connection.
Tick the specs you need, then view products that match.
| Signal / Input Range | 0–550 V AC | |
|---|---|---|
| Monitoring Function | Frequency | |
| Voltage | 550 V | |
| Manufacturer | ABB | |
| Series | CM-UFD Grid Feeding Monitoring Relays | |
| Model | CM-UFD.M33 | |
| Product type | Grid feeding monitoring relay | |
| Product ID | 1SVR560730R3402 | |
| EAN | 4013614492921 | |
| Contact configuration | 3 change-over contacts | |
| Measuring voltage L-L | 0–550 V AC | |
| Measuring voltage L-N | 0–317 V AC | |
| Supply voltage | 24–240 V AC/DC | |
| Monitoring functions | Voltage, frequency, RoCoF and vector shift | |
| Mounting type | DIN rail mounting | |
| Terminal type | Screw terminals | |
| Protection rating | IP20 terminals / IP50 housing | |
| Operating temperature | -20 to +60 °C | |
| Package dimensions | approx. 121 × 71 × 99 mm | |
| Package weight | approx. 0.36 kg | |
| HS Code | 85364900 | |
| Country of Manufacture | Germany |
The ABB 1SVR560730R3402 is used for monitoring grid voltage and frequency in renewable energy systems connected to the public grid.
The model number is CM-UFD.M33.
It monitors voltage, frequency, rate of change of frequency and vector shift to help detect abnormal grid or loss-of-mains conditions.
The relay has 3 change-over contacts for signalling external switching or decoupling equipment.
It is typically installed on a DIN rail inside electrical control panels used for renewable energy and grid interface protection systems.
ABB CM-UFD grid feeding monitoring relays are trusted by electrical engineers, renewable energy installers and panel builders for dependable interface protection and grid monitoring in low-voltage power systems.
