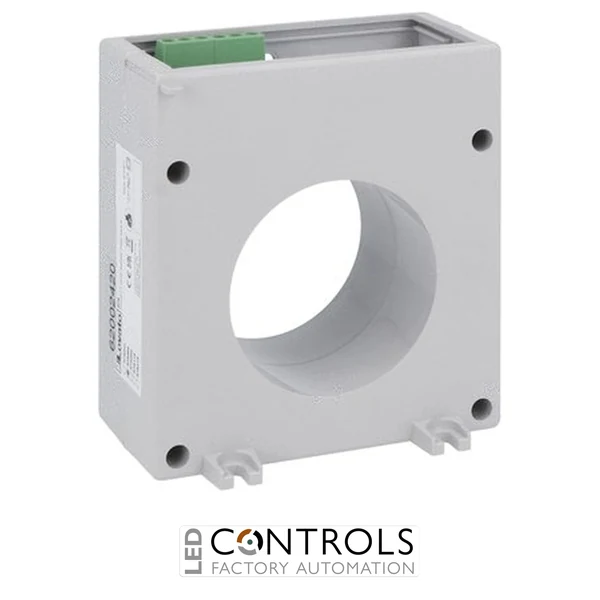

Lovato RTB060 is a Type B toroidal current transformer with a 60 mm internal aperture designed for AC, DC and pulsating residual-current sensing with compatible Lovato Type B earth leakage relays.
£150.25
The Lovato RTB060 is a Type B toroidal current transformer designed for residual-current monitoring and protection when used with compatible Lovato earth leakage relays. Its Type B characteristics enable the measurement of AC, DC and pulsating leakage currents, making it suitable for modern electrical installations containing power electronic equipment.
Featuring a 60 mm internal aperture, the RTB060 provides additional conductor capacity compared with smaller toroids while supporting monitored circuits with a minimum rated current of 30 mA. Lovato specifically designs the RTB range for use with compatible Type B earth leakage relays, including the RM2DB230, which provides the associated trip-current sensitivity.
The RTB060 offers 10–15% measurement accuracy, IP20 protection and a 2.5 kV insulation pulse test. Its ability to monitor leakage currents containing DC components and frequencies up to 1 kHz makes it particularly useful for applications such as variable speed drives, EV charging equipment, UPS systems, photovoltaic installations and active filters.
Type B residual-current monitoring is important in electrical systems where power electronics can generate leakage currents containing AC, pulsating DC or smooth DC components. The Lovato RTB060 is specifically designed to measure these residual currents and, when connected to a compatible Type B earth leakage relay, can be used to monitor single-phase or three-phase loads including variable speed drives, electric vehicle charging equipment, UPS systems, photovoltaic plants and active filters.
For correct residual-current measurement, all live conductors of the monitored circuit must pass through the RTB060 aperture, including the neutral conductor when present, while the protective earth conductor must not pass through the toroid. Lovato also recommends keeping the toroid-to-relay wiring away from power cables, minimising the connection distance and using shielded wiring where strong electromagnetic fields are present.
Tick the specs you need, then view products that match.
| Monitoring Function | Earth leakage / residual current | |
|---|---|---|
| IP Rating | IP20 | |
| Manufacturer | Lovato Electric | |
| Series | RTB | |
| Model | RTB060 | |
| Product designation | Toroidal current transformer | |
| Product type | Toroidal current transformer for earth leakage relays | |
| Residual operation characteristic | Type B | |
| Toroidal transformer diameter | 60 mm (2.36 in) | |
| Minimum rated current of monitored circuit | 30 mA | |
| Measurement accuracy | 10–15% | |
| Insulation pulse test | 2.5 kV | |
| Terminal type | Fixed screw terminals | |
| Number of terminals | 6 | |
| Maximum conductor cross-section | 2.5 mm² | |
| Protection degree | IP20 | |
| Operating temperature | -10 to +60 °C | |
| Storage temperature | -20 to +80 °C | |
| Relative humidity | 10–95% | |
| Dimension A | 100 mm | |
| Dimension B | 110 mm | |
| Dimension C | 60 mm | |
| Internal diameter D | 60 mm | |
| Dimension E | 47 mm | |
| Dimension F | 70 mm | |
| Dimension G | 63 mm | |
| Dimension H | 50 mm | |
| Reference standards | IEC 62020, IEC 60755, IEC 60947-2-M, IEC 61869-2 | |
| ETIM 8.0 classification | EC002048 – Current transformer | |
| Catalogue weight | 392 g | |
| Quantity per package | 1 | |
| Package dimensions | 113 × 72 × 120 mm | |
| EAN | 8013975323854 | |
| HS code | 85043121 |
The RTB060 is a Type B toroidal current transformer with a 60 mm internal aperture, designed for residual-current sensing with compatible Lovato Type B earth leakage relays.
The Lovato RTB060 is designed for measuring AC, DC and pulsating leakage currents as part of a compatible Type B residual-current monitoring system.
The RTB060 has a useful internal toroidal diameter of 60 mm (2.36 in).
Yes. Lovato specifies a minimum rated current of the monitored circuit of 30 mA for the RTB060.
The RTB060 is suitable for Type B residual-current monitoring in applications such as variable speed drives, EV charging equipment, UPS systems, photovoltaic plants and active filters.
The phases and neutral conductor, when present, of the monitored circuit should pass through the toroid. The protective earth conductor must not pass through the RTB060.
The RTB060 has an enclosure protection degree of IP20 and is designed for professional electrical protection installations.
Lovato Electric Type B earth leakage monitoring components provide dependable residual-current sensing for modern electrical installations, including systems containing variable speed drives, photovoltaic equipment, UPS systems and EV charging technology where AC and DC leakage-current components may be present.
