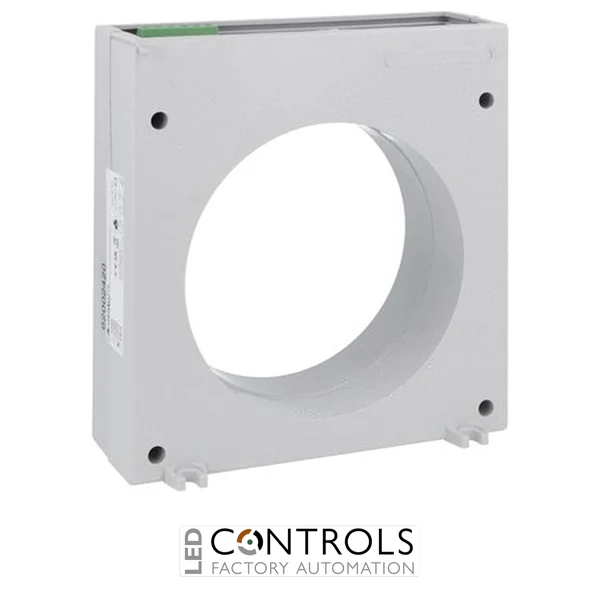

Lovato RTB110 is a Type B toroidal current transformer with a 110 mm internal aperture for residual current monitoring in compatible earth leakage relay systems.
£225.38
The Lovato RTB110 is a robust Type B toroidal current transformer designed for use with compatible Lovato earth leakage relays in residual current monitoring systems. As part of the Lovato RTB toroidal current transformer range, it provides reliable sensing for installations where Type B earth leakage detection is required.
The RTB110 features a large 110 mm internal aperture, allowing multiple phase conductors and the neutral, where present, to pass through the toroid for residual current measurement. The protective earth conductor must remain outside the transformer. In compatible Lovato Type B earth leakage relay systems, the RTB110 is intended for residual current thresholds of 100 mA or higher.
With overall dimensions of approximately 150 × 160 × 110 mm and a weight of 680 g, the RTB110 is well suited to industrial electrical panels and power distribution systems with larger cable groups. Compliance with IEC/EN/BS 60947-2 supports dependable integration into professional earth leakage protection installations.
Toroidal current transformers such as the Lovato RTB110 detect residual current by measuring the vector sum of the currents flowing through the conductors that pass through the toroid. Under normal operating conditions these currents balance, while an imbalance indicates leakage current that can be evaluated by the connected earth leakage relay.
For correct installation, all live conductors of the monitored circuit, including the neutral where present, should pass through the RTB110 while the protective earth conductor remains outside. Connection wires between the toroid and relay should be twisted, kept away from power cables and kept as short as practical to help maintain reliable signal integrity.
Tick the specs you need, then view products that match.
| Monitoring Function | Current | |
|---|---|---|
| Manufacturer | Lovato Electric | |
| Series | RTB | |
| Model | RTB110 | |
| Product type | Toroidal current transformer | |
| Residual operation characteristic | Type B | |
| Internal diameter | 4.33 in | |
| Recommended residual current threshold | ≥100 mA | |
| Overall height | 150 mm | |
| Overall width | 160 mm | |
| Overall depth | 110 mm | |
| Mounting depth | 70 mm | |
| Mounting width | 70 mm | |
| Mounting centres | 63 mm | |
| Body thickness | 50 mm | |
| Weight | 680 g | |
| ETIM 8.0 classification | EC002048 - Current transformer | |
| Compliance | IEC/EN/BS 60947-2 | |
| EAN13 | 8013975323878 | |
| HS code | 85043121 |
The RTB110 is a Type B toroidal current transformer used with compatible earth leakage relays to monitor residual current in electrical circuits.
The Lovato RTB110 has an internal aperture diameter of 110 mm, equivalent to approximately 4.33 in.
In Lovato Type B earth leakage relay systems, the RTB110 is intended for residual current thresholds of 100 mA or higher.
The monitored phase conductors and neutral, where present, should pass through the toroid, while the protective earth conductor must remain outside.
The RTB110 is specified in accordance with IEC/EN/BS 60947-2.
Lovato Electric RTB toroidal current transformers provide dependable residual current sensing for Type B earth leakage protection systems used in industrial distribution, machinery and professional electrical installations.
