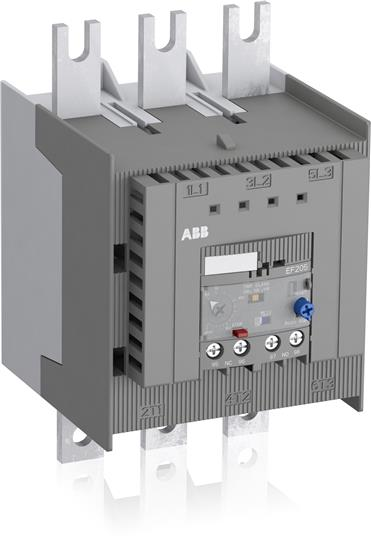

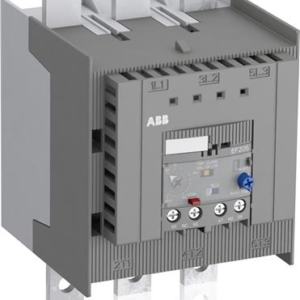

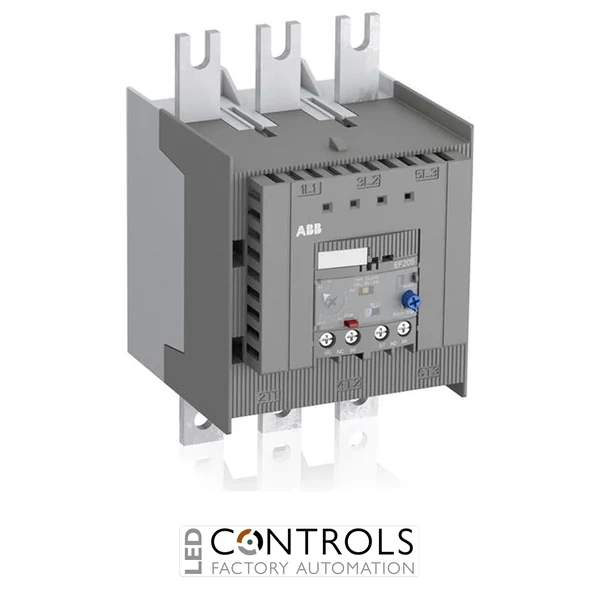

ABB EF205-210 electronic overload relay with adjustable 63-210 A setting range, selectable trip classes and integrated phase failure protection for industrial motor control applications.
£527.15
The ABB EF205-210 Electronic Overload Relay (Part Number: 1SAX531001R1101) is a heavy-duty electronic motor overload protection relay designed to provide precise protection for large three-phase motors against overload, phase failure and overheating. As part of the advanced ABB EF205 electronic overload relay series, it delivers dependable motor protection for demanding industrial applications while helping maximise equipment reliability and minimise downtime.
Using advanced electronic sensing technology, the EF205-210 delivers highly accurate motor protection across a wide operating temperature range. The relay is self-powered, requiring no external control supply, and offers selectable Trip Class 10E, 20E and 30E to suit a wide variety of motor starting characteristics. It mounts directly onto compatible ABB contactors for straightforward installation.
With an adjustable current setting range of 63-210 A, integrated auxiliary contacts and robust industrial construction, the EF205-210 is ideal for protecting large motors used in pumps, compressors, conveyors, crushers, HVAC equipment and heavy industrial automation systems.
Electronic overload relays continuously monitor motor current and rapidly detect overload or phase loss conditions before damage occurs. This helps reduce costly downtime, extend motor service life and improve the reliability of high-power industrial equipment.
The ABB EF205 series combines high measurement accuracy, temperature compensation and adjustable trip characteristics, making it an ideal solution for OEM machine builders, system integrators and industrial maintenance professionals working with large motor installations.
| Current | 210 A |
|---|---|
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | EF205 |
| Part number | 1SAX531001R1101 |
| Product type | Electronic overload relay |
| Current setting range | 63–210 A |
| Rated operational current | 210 A |
| Trip classes | 10E / 20E / 30E selectable |
| Rated operational voltage | Up to 690 V AC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Number of poles | 3P |
| Auxiliary contacts | 1 NC + 1 NO |
| Connection type | Screw terminals |
| Degree of protection | IP20 |
| Mounting type | Direct attachment to contactor |
| Voltage type | Self-powered |
| Frequency | 50 / 60 Hz |
| Operating temperature | approx. -25 °C to +70 °C |
| Standards | IEC/EN 60947-4-1, UL 60947-4-1 |
| Dimensions (W × H × D) | approx. 105 × 171 × 123 mm |
| Weight | approx. 1.62 kg |
The EF205-210 protects large three-phase electric motors against overload, phase failure and overheating in industrial motor control systems.
The relay provides an adjustable protection range from 63 A to 210 A.
No. The relay is self-powered and operates without an additional external control supply.
The relay supports selectable Trip Class 10E, 20E and 30E for different motor starting requirements.
The EF205-210 is designed for direct mounting onto compatible ABB A145, A185, AF145, AF185, AF190 and AF205 contactors.
ABB EF205 electronic overload relays are trusted by OEM manufacturers, panel builders and industrial maintenance engineers worldwide for delivering accurate motor protection, dependable performance and long service life in demanding industrial environments.
