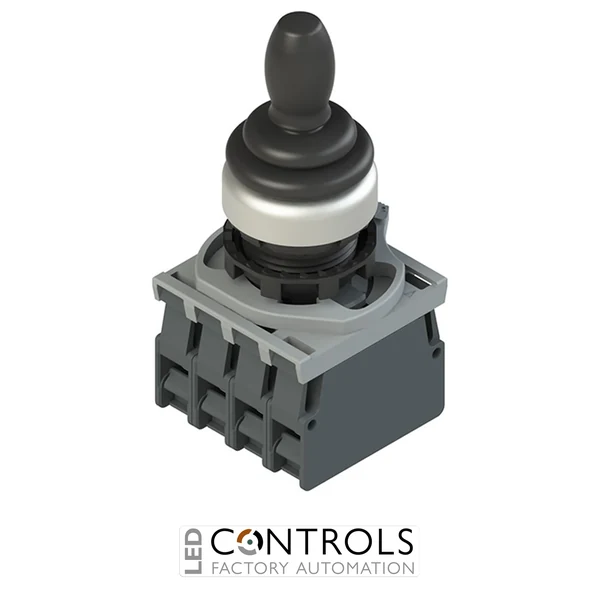

Pizzato E2AC-DXBC2609 industrial joystick control unit with reduced height, 4-direction control, spring return and 4 normally open contacts for automation systems.
£47.39
The Pizzato E2 AC-DXBC2609 is a complete industrial joystick control unit designed for reliable machine operation, operator interfaces and industrial automation applications. Part of the advanced Pizzato E2 series, this compact joystick assembly combines a reduced-height actuator, fixing adapter and contact blocks into a complete solution for demanding machinery control systems.
Manufactured by Pizzato Elettrica, the E2 AC-DXBC2609 provides intuitive directional control through a durable 45 mm reduced-height joystick mechanism. Its compact construction and dependable switching performance make it suitable for electrical control panels, operator stations and OEM automation equipment requiring accurate manual input.
The complete unit includes a 45 mm reduced-height joystick without lock, a 4-slot mounting adapter for E2 CP contact blocks and four 1NO slow action contact blocks. The joystick provides 4-function maintained operation, allowing flexible directional control for industrial machinery applications.
Industrial joystick controllers provide operators with intuitive control for machine movement, positioning and equipment adjustment. The Pizzato E2 AC-DXBC2609 delivers dependable four-direction maintained manual control where accurate operator input and reliable switching performance are required.
Its reduced-height design, flexible contact arrangement and durable mechanical construction allow straightforward integration into industrial control panels, machinery interfaces and OEM automation systems.
Tick the specs you need, then view products that match.
| Product Series | Pizzato E2 / EROUND | |
|---|---|---|
| Mounting Diameter | 22 mm | |
| Contacts | 4NO | |
| Device Type | Joystick | |
| IP Rating | IP67 | |
| Series | E2 Control Devices | |
| Product type | Joystick control unit | |
| Control directions | 4 (up, down, left, right) | |
| Return type | Spring return (centre position) | |
| Contact configuration | 4 NO (slow action) | |
| Actuator height | approx. 45 mm | |
| Mounting type | Panel mounting | |
| Construction | Complete unit with fixing adapter and contacts | |
| Operating temperature | approx. -25 to +80 °C | |
| Protection rating | IP67 / IP69K | |
| HS Code | 85369095 |
The Pizzato E2 AC-DXBC2609 is an industrial joystick control unit used for directional machine control and operator interface applications.
The joystick provides 4-function operation for flexible machine movement and control applications.
No, the E2 AC-DXBC2609 is supplied without a locking mechanism.
The complete unit includes four 1NO slow action contact blocks.
The unit features a reduced-height 45 mm joystick designed for compact industrial control applications.
Pizzato Elettrica operator control devices are designed for automation engineers and machine builders requiring reliable manual controls, durable construction and dependable industrial performance.
