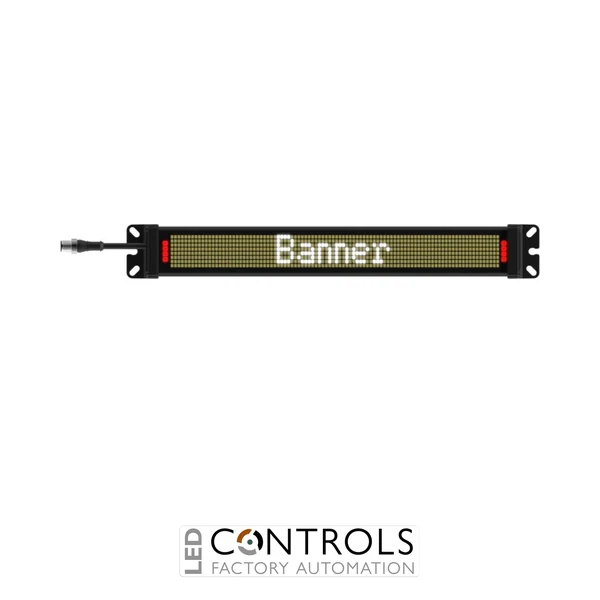

Why Choose the Turck Banner SD50P300WKQP LED Status Display?
The Turck Banner SD50P300WKQP is a programmable IO-Link LED matrix status display designed to provide clear visual communication for industrial automation, machine monitoring and smart manufacturing applications. As part of the Banner SD50 Pro Status Display series, it combines a bright white LED matrix display with RGB status indicators to deliver real-time machine information directly to operators.
This advanced display uses IO-Link communication to enable flexible parameterisation and dynamic message control through automation systems. The SD50P300WKQP allows users to display operating states, production information, warnings, instructions and process data without requiring a complex HMI interface.
Featuring an 8 × 96 pixel white LED matrix, a 300 mm display length, RGB indicator LEDs and an industrial IP65-rated housing, the SD50P300WKQP provides excellent visibility and reliable operation in demanding factory environments. Its compact design and M12 connection simplify integration into modern control systems.
Key Advantages
- Advanced IO-Link programmable LED status display for industrial automation.
- White LED matrix display provides clear operator communication.
- Dynamic messaging through IO-Link process data.
- RGB status LEDs provide immediate visual machine feedback.
- IP65 protection supports reliable use in industrial environments.
- Simple integration with IO-Link masters and automation networks.
Key Features
- Turck Banner SD50 Pro Status Display series.
- 8 × 96 pixel LED matrix display.
- 300 mm display length.
- White LED display with RGB status indicators.
- IO-Link communication protocol.
- IO-Link specification V1.1.
- COM 2 communication mode at 38.4 kBaud.
- 18–30 VDC operating voltage.
- Programmable text and process information display.
- Compact polycarbonate/ABS industrial enclosure.
Reliable Visual Communication for Smart Manufacturing
The Turck Banner SD50P300WKQP improves production efficiency by providing operators with immediate access to important machine information. Through IO-Link communication, the display can receive dynamic messages, measurements, counters and status updates directly from automation controllers.
Designed as a flexible alternative to traditional operator interfaces, the SD50 series helps manufacturers improve visibility, reduce response times and support modern visual factory concepts. Its configurable display functions make it suitable for machine status indication, assembly guidance, production monitoring and process communication.
Typical Applications
- Industrial machine status indication.
- Production line visual management.
- Assembly instructions and operator guidance.
- Manufacturing process monitoring.
- Production counters and takt time displays.
- Automation systems using IO-Link communication.
- Equipment status and warning indication.
