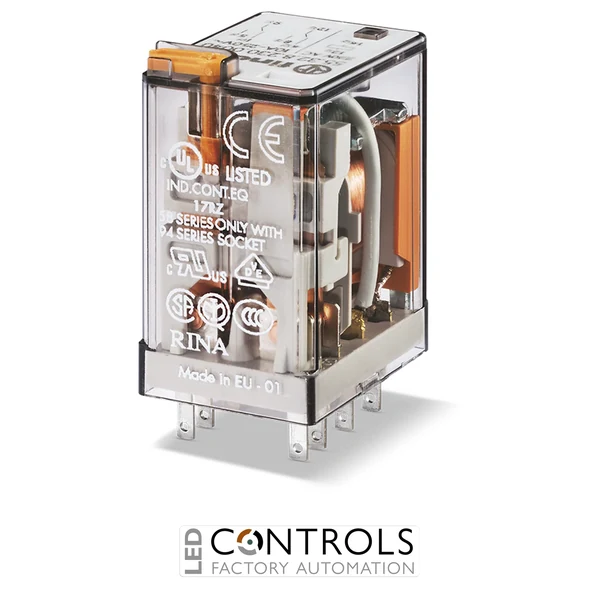

Why Choose the Finder 55.32.9.024.2094 Industrial Relay?
The Finder 55.32.9.024.2094 is a versatile 10 A general-purpose industrial relay from the Finder 55 Series, designed for dependable switching in industrial automation, electrical control panels and machinery applications. Featuring a 24 V DC coil, two changeover contacts (2 CO / DPDT) and plug-in socket mounting, this relay provides flexible control of two independent electrical circuits.
This particular configuration incorporates silver cadmium oxide (AgCdO) contacts, a lockable test button, LED operating indication, an integrated suppression diode and a mechanical status indicator. These features make the Finder 55.32.9.024.2094 particularly useful for applications requiring straightforward commissioning, visual monitoring and reliable electromechanical switching.
With a 250 V AC rated contact voltage, 2,500 VA AC-1 switching capacity and compatibility with suitable Finder 94 Series sockets, the relay offers a practical solution for industrial control engineers, panel builders and equipment manufacturers.
Key Advantages
- 10 A rated contact current for appropriately rated industrial loads.
- 24 V DC operating coil compatible with common industrial control supplies.
- Two changeover contacts (2 CO / DPDT) for independent switching and control functions.
- 250 V AC rated contact voltage for suitable electrical switching applications.
- 2,500 VA AC-1 switching capacity for resistive loads.
- AgCdO contact material for industrial electromechanical switching duties.
- Lockable test button assists commissioning and controlled testing.
- Integrated LED provides visual indication of coil energisation.
- Mechanical indicator provides an additional visual indication of relay operation.
- Integrated suppression diode helps protect control electronics from coil switching transients.
- Plug-in construction enables straightforward relay replacement.
- Finder 94 Series socket compatibility supports flexible panel installation.
- Compact housing saves space in electrical control cabinets.
- Monostable operation returns contacts to their normal state when coil power is removed.
Key Features
- Finder 55 Series general-purpose industrial relay.
- 55.32 two-pole plug-in relay configuration.
- 24 V DC nominal coil voltage.
- 2 CO / DPDT contact arrangement.
- 10 A rated contact current.
- 20 A maximum peak contact current.
- 250 V AC rated contact voltage.
- 400 V AC maximum switching voltage.
- 2,500 VA rated AC-1 switching capacity.
- 500 VA rated AC-15 switching capacity at 230 V AC.
- 0.37 kW single-phase motor rating at 230 V AC.
- Silver cadmium oxide (AgCdO) contact material.
- 600 Ω nominal coil resistance.
- 40 mA nominal coil current.
- Approximately 1 W nominal coil consumption.
- Lockable manual test button.
- Integrated LED operating indicator.
- Integrated DC coil suppression diode.
- Mechanical relay status indicator.
- Polarity-sensitive coil connection, positive at A1/13.
- Plug-in terminals for compatible relay sockets.
- RT I environmental protection category.
- Suitable for industrial control and automation applications.
Reliable 24 V DC Switching with Two Changeover Contacts
The Finder 55.32.9.024.2094 uses a 24 V DC electromagnetic coil to operate two changeover contacts simultaneously. When the coil is energised, each common contact transfers from its normally closed position to its normally open position. When the coil is de-energised, the contacts return to their normal state.
This DPDT arrangement allows the relay to control two separate circuits or provide complementary switching functions. It is particularly useful in machinery controls, auxiliary switching circuits, PLC interfaces and industrial signalling equipment.
The relay's 10 A contact rating and 2,500 VA AC-1 switching capacity support a broad range of resistive switching applications. Inductive, motor and DC loads must be assessed against their applicable utilisation ratings rather than the AC-1 rating alone.
Integrated Test Button, LED and Mechanical Indicator
The lockable test button provides a convenient method of manually checking relay contact operation during installation and maintenance. Its locking function can assist with controlled testing where appropriate, but the relay should not be used as a substitute for a dedicated safety-rated isolation device.
An integrated LED provides visual indication of coil energisation, while the mechanical indicator shows the relay's operating position. Together, these features help technicians diagnose control circuit behaviour and identify relay operation without removing the device from its socket.
The integrated suppression diode limits the voltage transient generated when the DC coil is switched off. Because the diode is polarity-sensitive, the positive control supply must be connected to A1/13. The suppression circuit may also affect release time compared with an unsuppressed relay.
Plug-in Installation and Maintenance
The Finder 55.32.9.024.2094 is designed for installation into a compatible Finder 94 Series relay socket. This plug-in arrangement allows the relay to be replaced without disconnecting the socket wiring, making it suitable for industrial panels where serviceability is important.
The compact relay housing accommodates two changeover contact circuits, a DC coil and the integrated operating accessories. Its design supports straightforward integration into industrial control cabinets and automation assemblies.
Before installation, verify the socket type, coil polarity, contact ratings, electrical protection and operating conditions. The AgCdO contact material contains cadmium and should be handled and disposed of in accordance with applicable regulations.
Typical Applications
- PLC output interfacing and industrial automation systems.
- Electrical control cabinets and relay panels.
- Industrial machinery and production equipment.
- Motor starter and contactor auxiliary circuits.
- Building automation and HVAC controls.
- Lighting and auxiliary electrical switching.
- Alarm, monitoring and signalling systems.
- Process control and instrumentation interfaces.
- Industrial equipment fault indication.
- Control circuit interlocking and sequencing.
- OEM electrical equipment and machinery.
- Maintenance and replacement of compatible Finder 55 Series relays.
