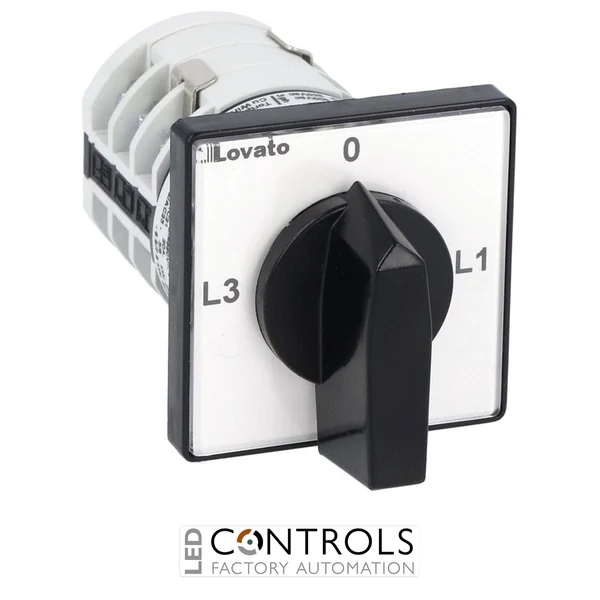

The Lovato 7GN2097U is a rotary cam ammeter switch from the 7GN series, designed for voltmeters and ammeters applications in control panels.
£35.72
The Lovato 7GN2097U is a rotary cam ammeter switch from the Lovato 7GN series, designed for direct current measurement selection in industrial electrical panels and control systems. Featuring a 20A thermal current rating, 4-position switching arrangement (0-L1-L2-L3), and a front mounting design with black handle and 48x48mm front plate, this compact switch provides reliable phase selection for ammeter monitoring applications.
Designed for professional panel builders and automation applications, the Lovato 7GN2097U includes a robust rotary cam mechanism, screw terminals, IP40 front protection, and a 6kV rated impulse withstand voltage. It is suitable for selecting L1, L2, and L3 measurement points on three-phase electrical systems where accurate current monitoring is required.
Tick the specs you need, then view products that match.
| Product Series | Lovato 7GN | |
|---|---|---|
| Device Type | Cam Switch | |
| IP Rating | IP40 | |
| Brand | Lovato Electric | |
| Part Number | 7GN2097U | |
| Product Type | Rotary Cam Ammeter Switch | |
| Series | 7GN | |
| Switching Diagram | 97 - Ammeter Switch | |
| Number of Positions | 4 | |
| Position Selection | 0-L1-L2-L3 | |
| Rated Thermal Current Ith | 20A | |
| Rated Operational Voltage | 480V | |
| Rated Insulation Voltage Ui | 690V IEC/EN | |
| Rated Impulse Withstand Voltage Uimp | 6kV | |
| Mounting Type | Front Mounting | |
| Front Plate Size | 48 x 48mm | |
| Handle Type | Black Rotary Handle | |
| Protection Rating | IP40 Front | |
| Terminal Type | Screw Connection | |
| Operating Temperature | -25°C to +55°C | |
| Mechanical Life | 5 x 10⁶ operations | |
| EAN | 3850144004672 | |
| HS Code | 85365080 |
The Lovato 7GN2097U is a rotary cam ammeter selector switch used for selecting current measurement points in three-phase systems.
The switch has four stable positions: 0, L1, L2, and L3.
The switch has a conventional thermal current rating of 20A Ith.
The switch is designed for front mounting with a 48x48mm front plate.
Yes. It is designed for selecting L1, L2, and L3 phases for direct ammeter readings.
