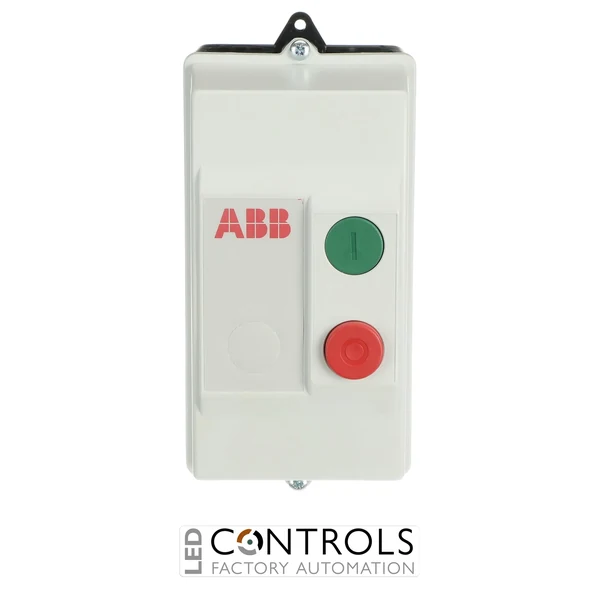

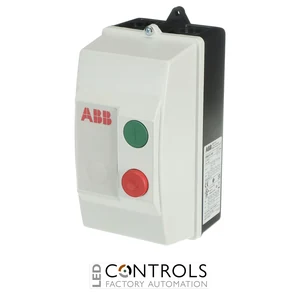

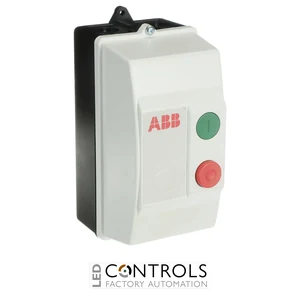

ABB DRAF12-14P enclosed Direct-On-Line starter with 250–500 V AC 50/60 Hz control supply designed for reliable three-phase motor control applications.
£68.25
The ABB DRAF12-14P is a compact and reliable enclosed Direct-On-Line (DOL) motor starter designed for controlling three-phase asynchronous motors in industrial applications. As part of the ABB DRAF enclosed starter series, it provides a pre-assembled and wired solution for straightforward motor starting and control installations.
This starter combines an ABB AF contactor with a durable enclosure, providing dependable motor switching performance while simplifying installation and commissioning. The DRAF series is designed for industrial environments where reliable motor control, protection and efficient panel integration are required.
With a 250–500 V AC 50/60 Hz control supply, a 12 A operational current rating and suitability for motors up to 5.5 kW at 380/400 V, the ABB DRAF12-14P is ideal for pumps, fans, conveyors and general industrial machinery requiring direct motor starting. :chatgpt-content-reference{index="0"}
Direct-On-Line starters such as the ABB DRAF12-14P provide a simple and effective method for switching three-phase motors directly across the supply network. The integrated contactor arrangement allows reliable motor operation while the enclosed design protects the control components from environmental exposure.
The ABB DRAF series is designed for industrial automation systems, machinery and electrical installations requiring a compact starter assembly. Its pre-wired construction reduces installation time and supports efficient integration into motor control applications.
| Series | DRAF Enclosed Starters |
|---|---|
| Order code | 1SBK154037R1400 |
| Product type | Enclosed Direct-On-Line motor starter |
| Starter type | Contactor starter |
| Control supply voltage | 250–500 V AC |
| Frequency | 50/60 Hz |
| Rated operational current | 12 A |
| Rated operational power | 5.5 kW at 380/400 V AC |
| Motor application | Three-phase asynchronous motors |
| Maximum motor voltage | Up to 690 V AC |
| Contactor | AF12-30-10-14 three-pole contactor |
| Enclosure protection | IP66 |
| Enclosure type | Type 4X plastic enclosure with double insulation |
| Thermal overload relay | TF42 to be selected separately |
The ABB DRAF12-14P is an enclosed Direct-On-Line starter used for controlling three-phase asynchronous motors in industrial applications.
The starter operates with a 250–500 V AC 50/60 Hz phase-to-phase control supply.
The starter is suitable for motors up to approximately 5.5 kW at 380/400 V AC.
The starter includes an AF12-30-10-14 three-pole ABB contactor with holding contact.
The starter is designed for use with an ABB TF42 thermal overload relay, which is selected separately according to the motor nominal current.
ABB DRAF enclosed starters are used by engineers and machine builders worldwide for dependable direct motor starting, simplified installation and reliable industrial motor control.
