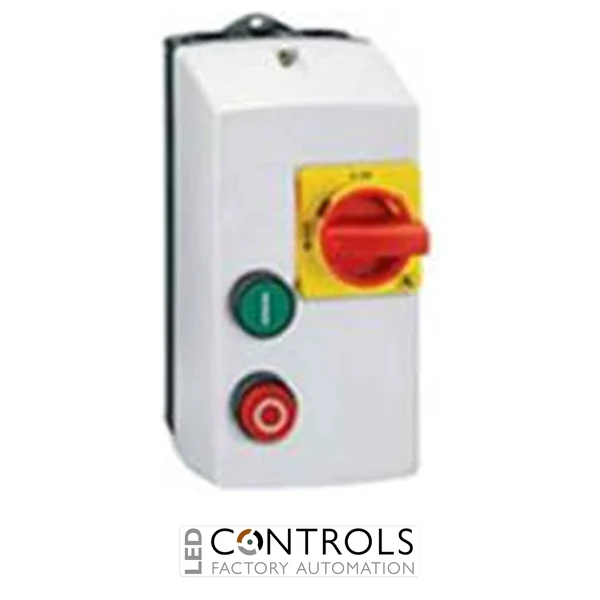

Lovato DOLSW7.5230 direct-on-line motor starter with integrated isolator rated for 7.5 kW three-phase motors with 18 A AC3 current rating and 230 V AC control voltage.
£149.56
The Lovato DOLSW7.5230 is a reliable direct-on-line (DOL) motor starter with integrated rotary isolator designed for the safe starting, stopping and isolation of three-phase induction motors. As part of the proven Lovato L-Starter range, this enclosed starter combines dependable motor control with an integrated isolator, making it ideal for industrial machinery, pumps, compressors, conveyors and manufacturing equipment.
The integrated rotary isolator enables the motor supply to be safely disconnected before maintenance or servicing, helping improve operator safety while reducing installation complexity. Housed within a durable IP65 insulated enclosure, the DOLSW7.5230 protects internal switching components against dust and water ingress, ensuring reliable operation in demanding industrial environments.
With a rated motor power of 7.5 kW, an 18 A AC-3 operational current and a 230 V AC control coil, the DOLSW7.5230 provides dependable motor control for fixed-speed applications. A compatible Lovato RF38 thermal overload relay is selected separately to provide overload protection matched to the motor full-load current.
Direct-on-line starters provide a simple and effective method of starting three-phase induction motors by applying full supply voltage directly to the motor terminals. The integrated rotary isolator enables the motor supply to be safely disconnected before maintenance or servicing, improving safety while simplifying installation.
The Lovato DOLSW7.5230 is widely used by OEM machine builders, panel manufacturers and maintenance engineers requiring dependable motor control with integrated isolation for industrial applications.
Tick the specs you need, then view products that match.
| With Isolator | Yes | |
|---|---|---|
| Starter Type | DOL | |
| Voltage | 400 V | |
| Power | 7.5 kW | |
| Current | 18 A | |
| Phase | Three Phase | |
| IP Rating | IP65 | |
| Coil / Supply Voltage | 230 V AC | |
| Series | L-Starter DOLSW Series | |
| Product type | Direct-on-line starter with isolator | |
| Rated motor power | 7.5 kW | |
| Horsepower rating | 10 HP | |
| Maximum AC3 current | 18 A | |
| Control voltage | 230 V AC | |
| Input phases | 3-phase | |
| Protection rating | IP65 / IP68 enclosure | |
| Enclosure material | Insulated polycarbonate | |
| Operating temperature | -25°C to +60°C | |
| Mounting type | Surface mounting | |
| Dimensions (H × W × D) | approx. 193 × 88 × 134 mm | |
| Overload relay compatibility | RF38 series | |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1 |
It is designed to safely start, stop and isolate three-phase induction motors used in industrial and commercial applications.
The DOLSW7.5230 is suitable for motors rated up to 7.5 kW.
This model is fitted with a 230 V AC control coil.
No. A compatible Lovato RF38 thermal overload relay must be selected separately to match the motor full-load current.
The built-in rotary isolator enables the motor supply to be safely disconnected for servicing or maintenance without requiring a separate external isolator.
Lovato L-Starter motor starters with integrated isolators are trusted by OEM manufacturers, panel builders and industrial engineers for dependable motor starting, safe isolation and reliable long-term performance.
