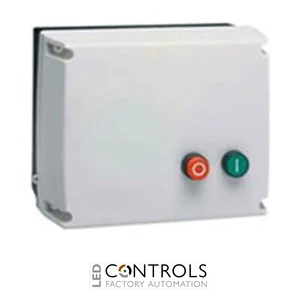

Lovato YD15230 star-delta motor starter rated for 15 kW three-phase motors with 28 A AC3 current rating and 230 V AC control voltage for reduced-current motor starting.
£327.97
The Lovato YD15230 is a robust star-delta motor starter designed to reduce motor starting current while providing reliable starting and stopping of three-phase induction motors. As part of the trusted Lovato L-Starter range, this enclosed starter is ideal for industrial applications where reduced inrush current is essential for larger motors.
Featuring integrated Start and Stop push-button controls, the YD15230 automatically transfers from star to delta operation after the preset starting period. This reduces electrical stress on the supply network while minimising mechanical stress on motors and driven equipment. The durable IP65 insulated enclosure protects the internal components from dust and water ingress, ensuring dependable performance in demanding industrial environments.
With a rated motor power of 15 kW, a 28 A operational current and a 230 V AC control coil, the YD15230 is ideal for compressors, pumps, conveyors, fans and other industrial machinery requiring reduced-current motor starting. A compatible thermal overload relay is selected separately and should be set to approximately 58% of the motor full-load current for star-delta operation.
Star-delta starters reduce motor starting current by initially connecting the motor windings in a star configuration before automatically switching to delta for normal operation. This proven starting method helps minimise voltage drop, reduce mechanical stress and improve the service life of motors and driven equipment.
The Lovato YD15230 is widely used by panel builders, OEM manufacturers and industrial maintenance engineers where dependable reduced-current motor starting is required for larger fixed-speed industrial machinery.
Tick the specs you need, then view products that match.
| With Isolator | No | |
|---|---|---|
| Starter Type | Star Delta | |
| Voltage | 400 V | |
| Power | 15 kW | |
| Current | 28 A | |
| Phase | Three Phase | |
| IP Rating | IP65 | |
| Coil / Supply Voltage | 230 V AC | |
| Series | L-Starter YD Series | |
| Product type | Star-delta motor starter | |
| Rated motor power | 15 kW | |
| Horsepower rating | 20 HP | |
| Maximum AC3 current | 28 A | |
| Control voltage | 230 V AC | |
| Input phases | 3-phase | |
| Protection rating | IP65 enclosure | |
| Enclosure material | Insulated polycarbonate | |
| Mounting type | Surface mounting | |
| Dimensions (H × W × D) | approx. 220 × 280 × 170 mm | |
| Overload relay compatibility | RF38 series | |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1 |
It provides reduced-current starting for three-phase induction motors before automatically switching to normal delta operation.
The YD15230 is suitable for motors rated up to 15 kW.
This model is fitted with a 230 V AC control coil.
No. A compatible thermal overload relay must be selected separately and adjusted to approximately 58% of the motor full-load current for star-delta operation.
Star-delta starters reduce starting current and mechanical stress, making them ideal for larger motors where a direct-on-line start would create excessive inrush current.
Lovato L-Starter star-delta starters are trusted by OEM manufacturers, control panel builders and industrial engineers for dependable reduced-current motor starting, robust construction and reliable long-term performance.
