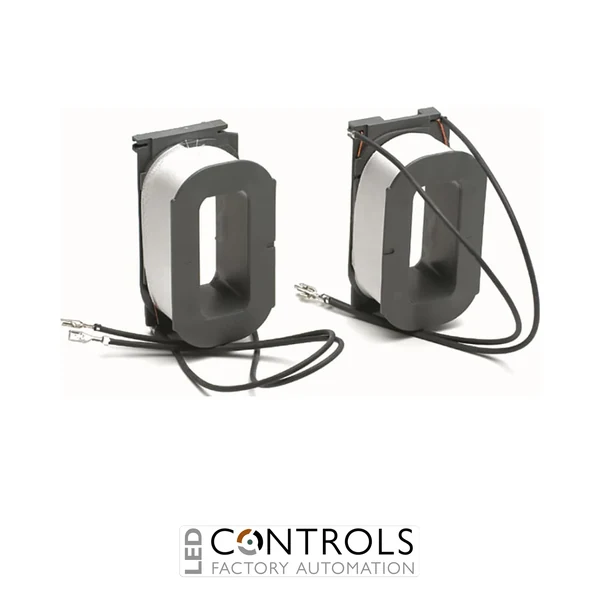

ABB ZAF1650-70 is a replacement set of two 100–250 V AC/DC operating coils with screw terminals for compatible AF1350, AF1650 and AF2050 block contactors.
£193.21
The ABB ZAF1650-70 is a genuine replacement operating coil set designed for compatible ABB AF series block contactors. Supplied as a set of two coils, it provides the electromagnetic operating components required when servicing high-current AF contactors in industrial controlgear installations.
The ZAF1650-70 operates across a wide 100–250 V AC at 50/60 Hz and 100–250 V DC rated control circuit voltage range. This wide-range AC/DC capability provides flexibility across industrial control supplies while maintaining the electrical characteristics required by the compatible contactor platform.
Designed for ABB AF1350, AF1650 and AF2050 contactors, the ZAF1650-70 uses screw terminals for secure control-circuit connections. The coil set measures approximately 180 × 90 × 130 mm and has a net weight of approximately 0.9 kg, providing an application-specific ABB service solution for maintenance and refurbishment.
The operating coils generate the magnetic force required to actuate the contactor when the specified control voltage is applied. The ABB ZAF1650-70 provides the two-coil set required by compatible AF1350, AF1650 and AF2050 contactors, making it an important service component for these high-current contactor platforms.
With a 100–250 V AC/DC control range, the ZAF1650-70 accommodates a broad range of industrial control supplies. Replacing the operating coils can support refurbishment of the contactor's control mechanism while allowing other serviceable contactor components to remain in use where appropriate.
| Series | ZAF1650 |
|---|---|
| ABB order code | 1SFN156570R7026 |
| Product type | Operating coil set |
| Product group | Controlgear Service |
| Rated control circuit voltage, AC | 100–250 V AC, 50/60 Hz |
| Rated control circuit voltage, DC | 100–250 V DC |
| Compatible contactors | AF1350, AF1650 and AF2050 |
| Suitable product class | Block contactors |
| Terminal type | Screw terminals |
| Supply quantity | 1 set of 2 coils |
| Product net width | 180 mm |
| Product net depth | 90 mm |
| Product net height | 130 mm |
| Product net weight | 0.9 kg |
| Minimum order quantity | 1 set |
| EAN | 7320500250754 |
The ZAF1650-70 is an ABB replacement operating coil set for compatible high-current AF series block contactors.
The ZAF1650-70 is rated for 100–250 V AC at 50/60 Hz and 100–250 V DC control supplies.
The ZAF1650-70 operating coil set is designed for ABB AF1350, AF1650 and AF2050 block contactors.
The ABB ZAF1650-70 is supplied as one set containing two operating coils.
No. The ZAF1650-70 is a replacement operating coil set for compatible ABB AF contactors and is not a complete contactor.
ABB ZAF1650-70 operating coils provide an application-specific replacement solution for AF1350, AF1650 and AF2050 block contactors, combining wide-range AC/DC control capability with original ABB construction for industrial controlgear maintenance.
