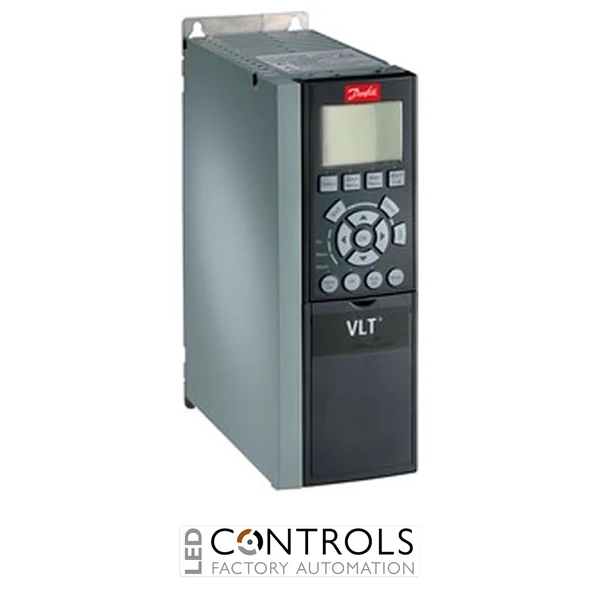

Danfoss 131B0485 VLT AutomationDrive FC-302 frequency converter, a 4.0 kW / 5.0 HP three phase AC variable frequency drive with brake chopper and PROFIBUS DP MCA 101 for industrial motor control and automation systems.
£1,373.25
The Danfoss 131B0485 is a compact and reliable AC variable frequency drive from the VLT® AutomationDrive FC-302 series, designed for accurate speed and torque control of three-phase motors in industrial automation, machinery and process control applications. Built on the proven Danfoss FC-302 platform, this frequency converter is suitable for machine builders, panel builders and maintenance engineers requiring dependable motor control in demanding environments.
This drive provides precise variable speed control while supporting efficient operation, reduced mechanical wear and flexible integration into automation systems. Its compact IP20 chassis format, graphical local control panel and PROFIBUS communication option make it suitable for control panel installations where usability, panel space and network connectivity are important.
With a rated output power of 4.0 kW / 5.0 HP and a three-phase 380-500 V AC supply, the Danfoss 131B0485 is ideal for industrial motors used in conveyors, pumps, fans, packaging equipment and production machinery. The drive includes RFI Class A1/B (C1) filtering, a brake chopper, PROFIBUS DP MCA 101 connectivity and a compact IP20 chassis enclosure for cabinet-mounted applications.
Variable frequency drives such as the Danfoss VLT® AutomationDrive FC-302 regulate motor speed by adjusting output frequency and voltage. This allows connected motors to operate at the required speed for the process, improving control accuracy while helping to reduce energy use and mechanical wear.
The FC-302 range is designed for industrial automation applications requiring reliable performance, flexible configuration and integration with control systems. The 131B0485 model is particularly suitable for compact control panel installations where a 4.0 kW drive with brake chopper and PROFIBUS connectivity is required.
Tick the specs you need, then view products that match.
| Power | 4 kW | |
|---|---|---|
| Voltage | 500 V | |
| Phase | Three Phase | |
| IP Rating | IP20 | |
| EMC Filter | Commercial | |
| Series | VLT® AutomationDrive FC-302 | |
| Model / SKU | 131B0485 | |
| Type code | FC-302P4K0T5E20H1BGXXXXSXXXXA0BXCXXXXDX | |
| Product type | AC variable frequency drive / frequency converter | |
| Rated output power | 4.0 kW / 5.0 HP | |
| Rated output current | approx. 10 A / 8.2 A | |
| Intermittent output current | approx. 16 A / 13.1 A | |
| Mains voltage | 380-500 V AC | |
| Input phases | Three phase | |
| Output frequency | 0-590 Hz | |
| Enclosure | IP20 / Chassis | |
| RFI filter | Class A1/B (C1) | |
| Brake chopper | Included | |
| Control panel | Graphical Local Control Panel | |
| PCB coating | Not coated PCB | |
| Mains option | No mains option | |
| Adaptation | Standard cable entries | |
| Software | Latest release standard software | |
| Software language pack | Standard language pack | |
| Fieldbus option | PROFIBUS DP MCA 101 | |
| B option | No B option | |
| C0 option | No C0 option | |
| C1 option | No C1 option | |
| D option | No D option | |
| Frame size | A2 | |
| Dimensions (H × W × D) | approx. 268 × 90 × 205 mm | |
| Depth with option A/B | approx. 220 mm | |
| Net weight | approx. 4.76 kg | |
| Gross weight | approx. 5.606 kg | |
| Volume | approx. 21.569 litres | |
| kVA rating | approx. 6.93 kVA | |
| Power loss | approx. 124 W | |
| EAN | 5702427156517 |
The Danfoss 131B0485 is used to control the speed and torque of three-phase AC motors in industrial automation, machine building and process control applications.
This drive is rated for approximately 4.0 kW / 5.0 HP motor power.
The 131B0485 operates from a three-phase 380-500 V AC supply.
Yes, this model includes a brake chopper for compatible dynamic braking applications.
Yes, this model is supplied with a graphical local control panel for setup, monitoring and operation.
The Danfoss 131B0485 includes a PROFIBUS DP MCA 101 A-option for communication with compatible industrial automation systems.
Danfoss VLT® AutomationDrive FC-302 drives are widely used by machine builders, control panel manufacturers and automation engineers who need dependable motor control, flexible integration and efficient operation in modern industrial systems.
