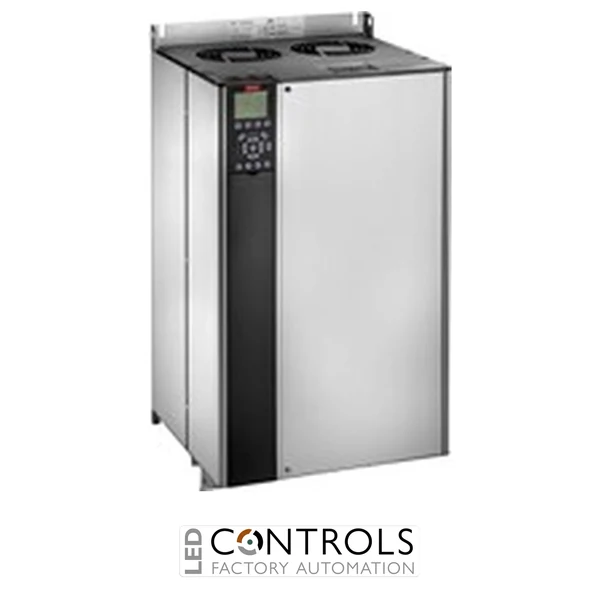

Danfoss 131F7150 VLT AutomationDrive FC-302, a 45 kW / 60 HP three phase 380-500 V AC variable frequency drive with IP20 chassis enclosure, RFI Class A2 / C3 filter, no brake chopper and no local control panel for industrial motor control applications.
£5,390.25
The Danfoss 131F7150 is a robust AC variable frequency drive (VFD) from the VLT AutomationDrive FC-302 series, designed for precise motor speed control in industrial automation, machinery, pumps, fans and general purpose drive applications.
With a rated output power of 45 kW / 60 HP, a 90 A continuous current rating and a three-phase 380–500 V AC supply, the 131F7150 is suitable for medium to high power three-phase motor control systems. It features an IP20 chassis enclosure, RFI Class A2 / C3 filter, no brake chopper and no local control panel.
Tick the specs you need, then view products that match.
| Power | 45 kW | |
|---|---|---|
| Voltage | 500 V | |
| Phase | Three Phase | |
| IP Rating | IP20 | |
| EMC Filter | Industrial | |
| Series | VLT AutomationDrive FC-302 | |
| Part number | 131F7150 | |
| Model code | FC-302P45KT5E20H2XXXXXXSXXXXAXBXCXXXXDX | |
| Rated output power | 45 kW / 60 HP | |
| Continuous current | 90 A at 380–440 V AC / 80 A at 441–500 V AC | |
| Normal overload power | 55 kW / 75 HP | |
| Normal overload current | 106 A at 380–440 V AC / 105 A at 441–500 V AC | |
| Input voltage | 380–500 V AC | |
| Input phases | 3-phase | |
| Output phases | 3-phase | |
| Protection rating | IP20 / chassis | |
| Frame size | C3 | |
| RFI filter | Class A2 / C3 | |
| Brake chopper | Not included | |
| Local control panel | Not included | |
| PCB coating | Not coated | |
| Mains option | No mains option | |
| Dimensions | approx. 550 × 308 × 333 mm | |
| Net weight | approx. 33.1 kg |
The Danfoss 131F7150 is used for variable speed control of three-phase AC motors in industrial automation, machinery, pump, fan and general purpose drive applications.
This VLT AutomationDrive FC-302 is rated for motors up to 45 kW / 60 HP.
The drive operates from a three-phase 380–500 V AC power supply.
No, the Danfoss 131F7150 configuration does not include a brake chopper.
No, this configuration is supplied without a local control panel.
