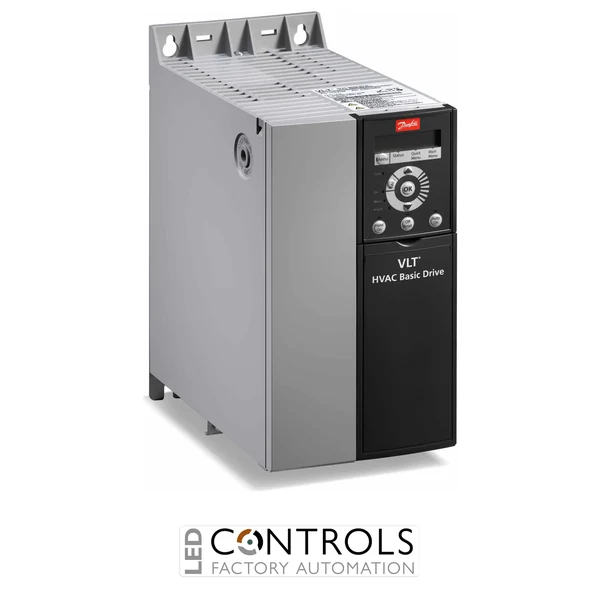

Danfoss 131L9869 VLT HVAC Basic Drive FC 101, an 11 kW three phase AC variable frequency drive designed for HVAC fans, pumps, ventilation systems and simple compressor applications.
£1,090.40
The Danfoss 131L9869 is a compact and efficient AC variable frequency drive (VFD) from the trusted Danfoss VLT® HVAC Basic Drive FC 101 series. Designed for heating, ventilation, air conditioning and simple compressor applications, it provides reliable motor speed control while helping reduce energy consumption, operating costs and mechanical stress.
This drive is engineered for HVAC engineers, facilities teams, OEMs and panel builders who require dependable motor control in commercial and industrial environments. The FC 101 series combines straightforward commissioning, practical HVAC functionality and robust performance for fans, pumps and building services equipment.
With a rated output power of 11 kW, a three-phase 380–480 V AC supply and an IP20 chassis enclosure, the Danfoss 131L9869 is ideal for larger HVAC motor applications. It also includes an integrated RFI Class A1 (C2) filter, coated PCB and H4 frame construction for reliable operation in suitable control panel installations.
Variable frequency drives such as the Danfoss VLT® HVAC Basic Drive FC 101 regulate motor speed by adjusting the output voltage and frequency. This allows HVAC equipment to match real process demand, improving efficiency while reducing wear on motors, fans, pumps and associated mechanical components.
The Danfoss 131L9869 is particularly suited to variable-torque applications where energy savings can be achieved by reducing motor speed during low-demand periods. Its integrated EMC filtering, coated PCB and compact IP20 chassis format make it a practical solution for modern building services and industrial HVAC control panel installations.
Tick the specs you need, then view products that match.
| Power | 11 kW | |
|---|---|---|
| Voltage | 480 V | |
| Phase | Three Phase | |
| IP Rating | IP20 | |
| EMC Filter | Commercial | |
| Series | VLT® HVAC Basic Drive FC 101 | |
| Part number | 131L9869 | |
| Model code | FC-101P11KT4E20H4XXCXXXSXXXXAXBXCXXXXDX | |
| Product type | AC variable frequency drive | |
| Rated output power | 11 kW | |
| Horsepower rating | 15 HP | |
| Input voltage | 380–480 V AC | |
| Input phases | 3-phase | |
| Frequency | 50 / 60 Hz | |
| Protection rating | IP20 / chassis | |
| RFI filter | Class A1 (C2) | |
| Local control panel | Not fitted | |
| Brake chopper | Not fitted | |
| PCB coating | Coated PCB | |
| Frame size | H4 | |
| Net weight | approx. 7.9 kg | |
| EAN | 5710107088324 |
The Danfoss 131L9869 is used to control the speed of AC motors in HVAC systems, including fans, pumps, air handling units and simple compressor applications.
The drive supports motors with a rated output power of approximately 11 kW or 15 HP.
The Danfoss 131L9869 operates from a three-phase 380–480 V AC supply.
The drive has an IP20 chassis enclosure rating, making it suitable for installation inside electrical control panels.
No, this version is supplied without a local control panel. A compatible LCP can be added separately if required.
Danfoss VLT® HVAC Basic Drive FC 101 units are widely used by building services engineers, OEMs and facilities teams to deliver reliable motor control, energy-efficient operation and dependable HVAC system performance.
