The nVent HDF Hygienic Design Floor Standing Enclosure has been engineered specifically to withstand intensive cleaning processes. Available from LED Controls, the HDF range combines hygienic engineering with robust electrical protection to keep your controls safe without impacting your cleaning process.
What is the nVent HDF?
The nVent HD Floor Standing Enclosure is part of the nVent HOFFMAN Hygienic Design range. The enclosure is intended for sanitary environments where equipment is regularly exposed to:
- High-pressure washdown
- High-temperature cleaning
- Clean-in-place (CIP) procedures
- Strict hygiene protocols
The HDF range is specifically designed to minimise hygiene risks while helping reduce downtime and improve productivity.
Why Hygienic Design Matters
In food, beverage and pharmaceutical manufacturing, every surface has the potential to become a breeding ground for bacteria. Traditional enclosures may include flat tops, external hinges or difficult-to-clean recesses where water, residue and contaminants can accumulate. nVent Hygienic Design addresses these issues through several carefully engineered features:
- A 30° sloped roof to prevent standing water and debris accumulation
- 8° angled door edges to encourage water runoff
- Smooth, polished AISI 304 stainless steel surfaces with a surface finish below Ra 0.8 μm
- Gap-free construction that reduces contamination traps
- Internal hinges that eliminate external dirt collection points
- No unused external openings as standard
Together, these design features help reduce bacterial growth opportunities while making for quicker and more effective cleaning.
Ingress Protection ratings
Ingress Protection ratings measure the amount of protection your enclosure gives its contents. Read more about IP ratings here. The nVent HDF is rated:
- IP66
- IP69 / IP69K
- NEMA Type 4
- NEMA Type 4X
- NEMA Type 12

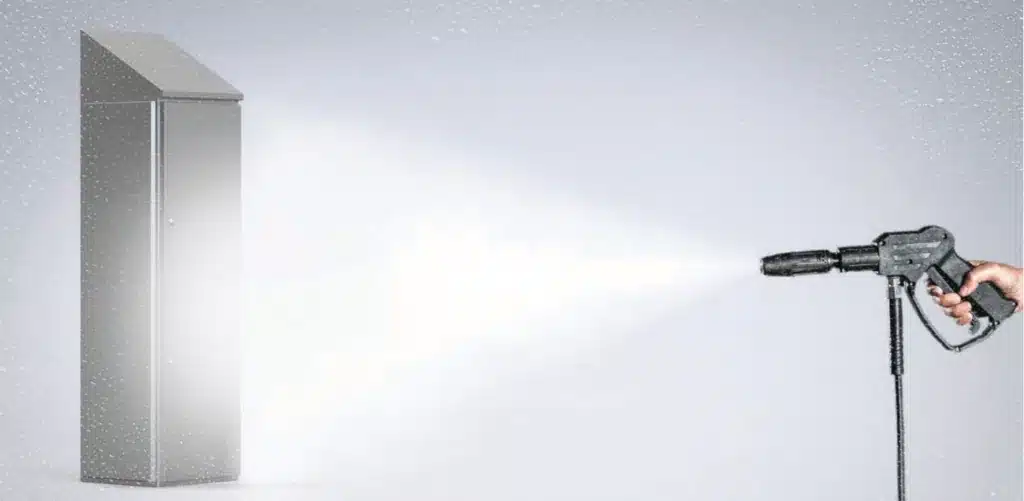

This basically guarantees that HDF cabinets are safe for use in areas where they will be cleaned with high-pressure hot water jets up to 80°C with water delivered at 80 bar.

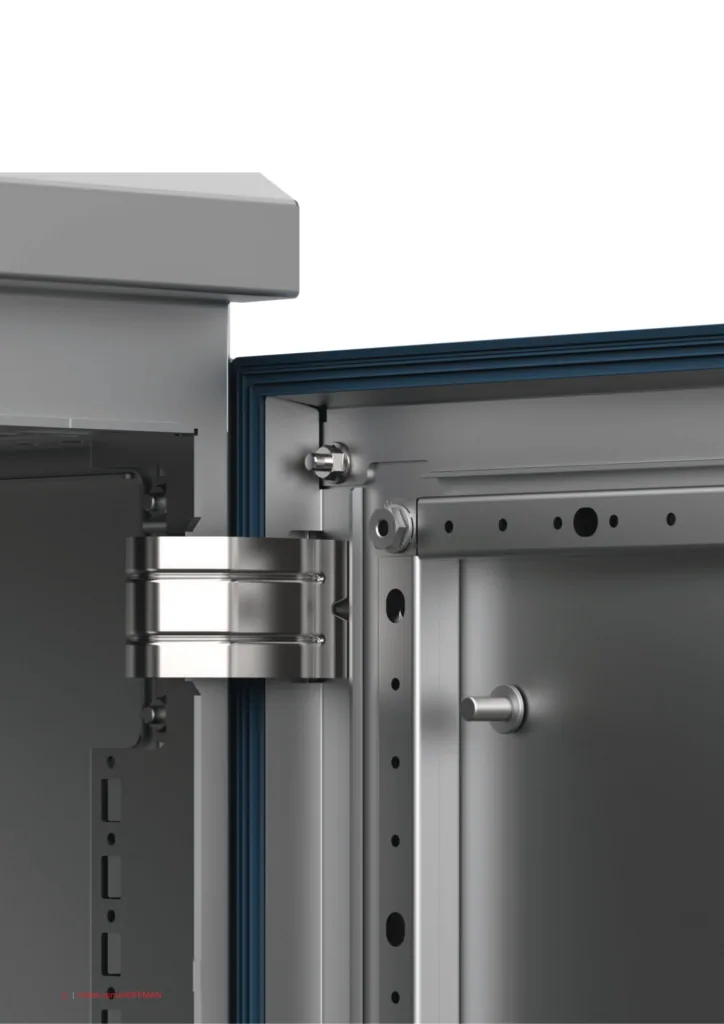

Hygienic Silicone Door Gasket
The nVent HDF enclosure uses a one-piece blue silicone gasket with moulded corners that can be removed for cleaning, maintenance and replacement. Key benefits include:
- FDA 21 CFR 177.2600 compliant silicone
- Resistance to bacterial growth
- Resistance to chemical absorption
- Easy removal during scheduled cleaning
- Reliable sealing against liquid ingress
The removable gasket also allows both the gasket and door edge to be cleaned independently before reassembly, helping maintain hygienic performance over the enclosure's service life.
Practical Features for Panel Builders
Although hygiene is the primary focus, the HDF enclosure also provides plenty of practical benefits during installation:
- Adjustable mounting plate with 25 mm hole pattern
- Internal mounting profiles
- Door opening to 120°
- Reversible door opening without machining
- Four-point espagnolette locking system
- Separate welded earthing studs
- Optional hygienic levelling feet and accessories
These features help simplify installation while maintaining the enclosure's hygienic integrity.
Typical Applications
- Food manufacturing
- Beverage production
- Dairy processing
- Meat and poultry processing
- Pharmaceutical manufacturing
- Life sciences
- Clean production facilities
Available from LED Controls, Your nVent Distributor
As an authorised nVent distributor, LED Controls can help you select the perfect enclosure for your system's specific requirements. Whether it's nVent HDF or another nVent range, we can give you:
- Access to the full nVent HOFFMAN product range
- Technical product selection advice
- Rapid sourcing and delivery
- Support for panel builders, OEMs and industrial end users
LED Controls will find the enclosure you need to keep your equipment protected, compliant and ready for the most demanding hygienic environments. We can also fully stock your enclosure with the latest and greatest factory automation equipment. We're the one-stop industrial control solution shop. So get in touch to discuss all our Hygienic Design enclosure needs!
