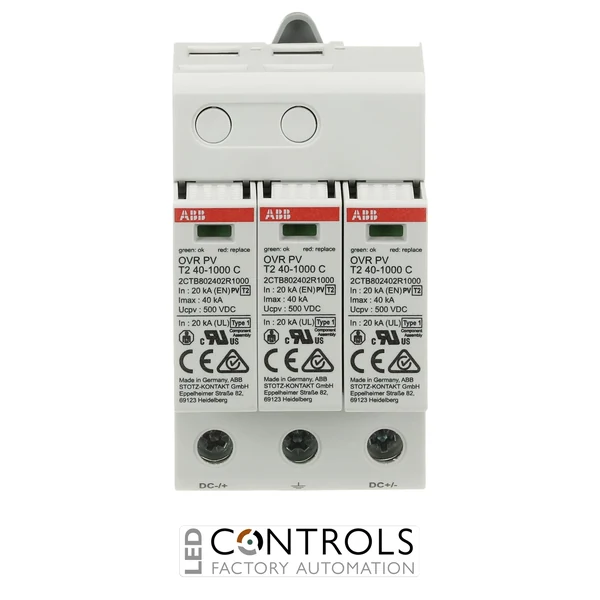

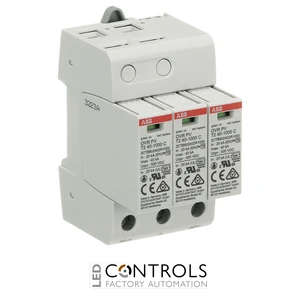

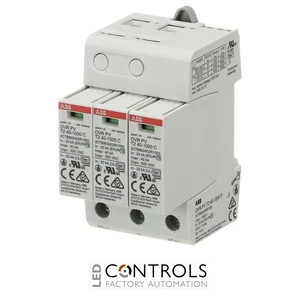

ABB OVR PV T2 40-1000 P pluggable Type 2 photovoltaic surge protective device for 1000 V DC PV systems, with 40 kA maximum discharge current, 20 kA nominal discharge current and 4 kV voltage protection level.
£208.14
The ABB OVR PV T2 40-1000 P is a pluggable Type 2 photovoltaic surge protective device (SPD) designed to protect the DC side of solar photovoltaic installations against transient overvoltages caused by indirect lightning effects and electrical switching events. Part of the ABB OVR PV surge protection range, it is specifically engineered for photovoltaic applications with DC operating voltages up to 1000 V.
The OVR PV T2 40-1000 P uses a 1+1 DC configuration protecting the positive and negative PV conductors. It provides a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA using the standard 8/20 µs surge-current waveform, with a voltage protection level (Up) of 4 kV.
With a 1000 V DC maximum continuous operating voltage and pluggable cartridges, this ABB SPD is well suited to photovoltaic combiner boxes, inverter protection and DC distribution equipment. Visual status indication supports straightforward inspection, while the replaceable cartridge design simplifies maintenance without requiring replacement of the complete device base.
Photovoltaic arrays and their associated DC cabling can be exposed to transient overvoltages generated by nearby lightning activity and electrical switching events. A Type 2 PV surge protective device diverts damaging surge currents while limiting the transient voltage reaching downstream equipment such as solar inverters, monitoring systems and DC distribution components.
The ABB OVR PV T2 40-1000 P combines a 40 kA maximum discharge capability, 20 kA nominal discharge current and 1000 V DC operating capability in a compact pluggable format. Its replaceable cartridges and visual condition indication help simplify ongoing maintenance of surge protection within photovoltaic installations.
Tick the specs you need, then view products that match.
| SPD Type | Type 2 | |
|---|---|---|
| Device Type | Surge protection device | |
| Product Series | ABB OVR PV T2 | |
| Series | OVR PV T2 | |
| ABB order code | 2CTB802400R1000 | |
| Product group | Surge Protection Devices | |
| Product type | Type 2 photovoltaic surge protective device | |
| Application | Photovoltaic DC systems | |
| Protected lines | 1+1 DC | |
| Nominal voltage | 1000 V DC | |
| Maximum continuous operating voltage (Ucpv) | 1000 V DC | |
| Maximum discharge current (Imax, 8/20 µs) | 40 kA | |
| Nominal discharge current (In, 8/20 µs) | 20 kA | |
| Voltage protection level (Up) | 4 kV | |
| Short-circuit current rating | 10 kA | |
| Construction | Pluggable | |
| Status indication | Visual | |
| Remote signalling | No | |
| Protection rating | IP20 | |
| Mounting type | DIN rail | |
| Dimensions (H × W × D) | 95 × 53.4 × 58 mm | |
| Standard | IEC 61643-31 |
It is a Type 2 photovoltaic surge protective device designed to protect the DC side of solar PV installations and connected equipment against transient overvoltages.
The device has a nominal voltage and maximum continuous operating voltage of 1000 V DC, making it suitable for compatible high-voltage photovoltaic DC systems.
The OVR PV T2 40-1000 P has a maximum discharge current (Imax) of 40 kA using an 8/20 µs surge-current waveform.
The device has a nominal discharge current (In) of 20 kA using an 8/20 µs waveform.
Yes. The device uses pluggable protection cartridges, allowing cartridges to be replaced during maintenance without replacing the complete SPD base.
ABB OVR PV surge protective devices provide dependable transient overvoltage protection for photovoltaic power systems, combining high surge discharge capability with PV-specific DC ratings, pluggable construction and convenient status indication.
