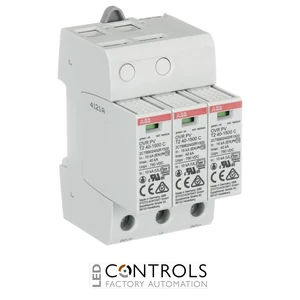

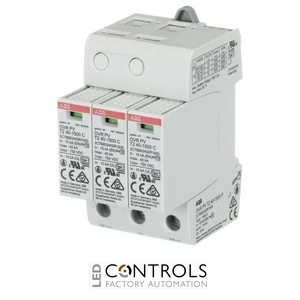

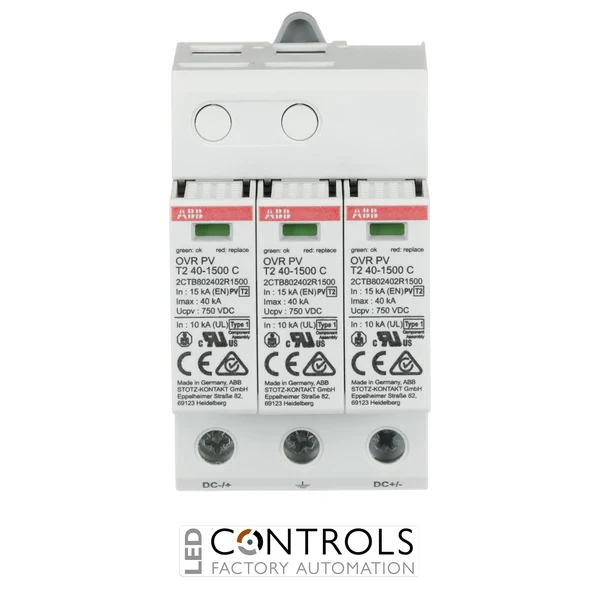

ABB OVR PV T2 40-1500 P pluggable Type 2 photovoltaic surge protective device for 1500 V DC PV systems, with 40 kA maximum discharge current, 15 kA nominal discharge current and 5 kV voltage protection level.
£317.54
The ABB OVR PV T2 40-1500 P is a high-voltage Type 2 photovoltaic surge protective device (SPD) designed to protect the DC side of solar photovoltaic installations against transient overvoltages caused by indirect lightning events and electrical switching. Part of the ABB OVR PV surge protection range, it is specifically designed for photovoltaic power systems operating at up to 1500 V DC.
The OVR PV T2 40-1500 P protects two DC lines, with protection modes between DC+ and DC-, DC+ and earth, and DC- and earth. It provides a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 15 kA using an 8/20 µs surge-current waveform, providing effective protection against transient surge energy in demanding PV installations.
With a 1500 V DC maximum continuous operating voltage (Ucpv), a voltage protection level (Up) of 5 kV and pluggable protection cartridges, this ABB SPD is well suited to photovoltaic string and combiner boxes, inverter DC inputs and other PV distribution equipment. Its thermally protected varistor technology and green/red end-of-life indicator provide reliable operation and straightforward maintenance.
Photovoltaic arrays and their associated DC cabling can be exposed to transient overvoltages generated by nearby lightning activity and electrical switching events. A Type 2 PV surge protective device diverts damaging surge currents and limits the transient voltage reaching sensitive downstream equipment such as photovoltaic inverters, monitoring electronics and DC distribution components.
The ABB OVR PV T2 40-1500 P combines a 40 kA maximum discharge capability, 15 kA nominal discharge current and 1500 V DC operating capability for modern high-voltage photovoltaic installations. Its pluggable cartridges and visual end-of-life indication help simplify inspection and maintenance throughout the service life of the PV system.
Tick the specs you need, then view products that match.
| SPD Type | Type 2 | |
|---|---|---|
| Device Type | Surge protection device | |
| Product Series | ABB OVR PV T2 | |
| Series | OVR PV T2 | |
| ABB order code | 2CTB802400R1500 | |
| Product group | Surge Protection Devices | |
| Product type | Type 2 photovoltaic surge protective device | |
| Application | Photovoltaic DC systems | |
| Number of protected lines | 2 | |
| Protection modes | DC+ to DC- / DC+ to earth / DC- to earth | |
| Maximum continuous operating voltage (Ucpv) | 1500 V DC | |
| Maximum discharge current (Imax, 8/20 µs) | 40 kA | |
| Nominal discharge current (In, 8/20 µs) | 15 kA | |
| Voltage protection level (Up) | 5 kV | |
| Voltage protection rating (UL VPR) | 4 kV | |
| Short-circuit current rating (SCCR) | 10 kA | |
| Technology | Thermally protected varistor | |
| Construction | Pluggable | |
| End-of-life indication | Green = functional / red = replace | |
| Remote signalling | No | |
| Protection rating | IP20 | |
| Mounting type | DIN rail | |
| Dimensions (H × W × D) | 95 × 53.4 × 58 mm | |
| Response time | <25 ns | |
| Standards | IEC 61643-31 / UL 1449 5th edition |
It is a Type 2 photovoltaic surge protective device designed to protect the DC side of solar PV installations and connected equipment against transient overvoltages caused by indirect lightning and switching events.
The device has a maximum continuous operating voltage (Ucpv) of 1500 V DC, making it suitable for compatible high-voltage photovoltaic systems.
The device has a maximum discharge current (Imax) of 40 kA using an 8/20 µs surge-current waveform.
The device has a nominal discharge current (In) of 15 kA using an 8/20 µs waveform.
Yes. The device uses pluggable protection cartridges, allowing cartridges to be replaced during maintenance without replacing the complete SPD base.
ABB OVR PV surge protective devices provide dependable transient overvoltage protection for photovoltaic power systems, combining high surge discharge capability with PV-specific DC ratings, pluggable construction and clear end-of-life indication.
