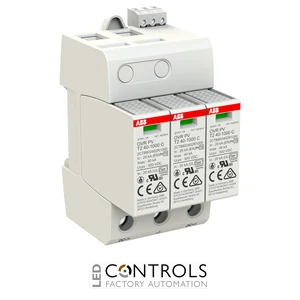

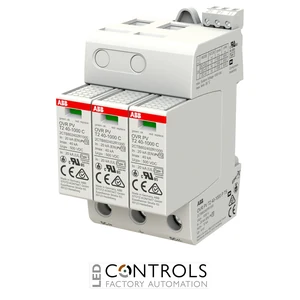

ABB 2CTB802401R1000 OVR PV T2 40-1000 P TS is a pluggable Type 2 photovoltaic surge protective device for 1000 V DC systems with 40 kA maximum discharge current, 20 kA nominal discharge current, 3 kV voltage protection level and remote signalling.
£185.20
The ABB OVR PV T2 40-1000 P TS 2CTB802401R1000 is a Type 2 surge protective device (SPD) specifically designed for photovoltaic DC installations. Part of ABB's OVR PV surge protection range, it helps protect solar panels, inverters and associated DC equipment against transient overvoltages caused by lightning-related disturbances and electrical switching events.
Designed for photovoltaic systems with a rated voltage of 1000 V DC, the OVR PV T2 40-1000 P TS provides a maximum discharge current Imax of 40 kA and a nominal discharge current In of 20 kA using an 8/20 µs waveform. Its voltage protection level Up is 3 kV, providing coordinated transient-overvoltage protection for compatible PV installations.
The P configuration uses replaceable pluggable cartridges, while the TS auxiliary contact provides remote status signalling with one normally open and one normally closed contact. DIN-rail mounting, an IP20 enclosure and a replaceable OVR PV T2 40-1000 C cartridge make the 2CTB802401R1000 a practical solution for photovoltaic combiner boxes, inverter installations and DC distribution equipment.
Photovoltaic arrays and their associated DC cabling can be exposed to transient overvoltages caused by nearby lightning activity and switching events. These transients can place considerable electrical stress on inverters, monitoring equipment and other components. A photovoltaic-specific SPD provides a controlled path for surge current while limiting the voltage appearing across protected equipment.
The ABB OVR PV T2 40-1000 P TS is engineered specifically for 1000 V DC photovoltaic installations. Its 40 kA Imax, 20 kA In and 3 kV Up ratings provide Type 2 protection, while the replaceable cartridges and remote signalling contact simplify maintenance and enable integration with compatible monitoring systems.
Tick the specs you need, then view products that match.
| SPD Type | Type 2 | |
|---|---|---|
| Device Type | Surge protection device | |
| Product Series | ABB OVR PV T2 | |
| Series | OVR PV T2 | |
| Order code | 2CTB802401R1000 | |
| Product group | Surge Protection Devices | |
| Product type | Photovoltaic Type 2 surge protective device | |
| Application | Photovoltaic DC systems | |
| SPD classification | Type 2 / Class II | |
| Rated voltage | 1000 V DC | |
| Maximum continuous operating voltage Ucpv | 1000 V DC | |
| Maximum discharge current Imax (8/20 µs) | 40 kA | |
| Nominal discharge current In (8/20 µs) | 20 kA | |
| Voltage protection level Up | 3 kV | |
| Protected lines | L+ and L− | |
| Short-circuit current rating | 10 kA | |
| Degree of protection | IP20 | |
| Operating temperature | −40 to +80 °C | |
| Construction | Pluggable | |
| Replacement cartridge | OVR PV T2 40-1000 C, 2CTB802402R1000 | |
| Remote signalling | Yes | |
| Auxiliary contacts | 1 NO + 1 NC | |
| Mounting | DIN rail | |
| Dimensions (H × W × D) | 90 × 53.8 × 72.9 mm | |
| Weight | approx. 300 g | |
| Standards | IEC 61643-31, UL 1449 |
The ABB 2CTB802401R1000 is a Type 2 photovoltaic surge protective device designed for 1000 V DC PV installations, with pluggable cartridges and an auxiliary contact for remote status signalling.
The device has a maximum discharge current Imax of 40 kA using an 8/20 µs surge-current waveform.
The ABB 2CTB802401R1000 has a nominal discharge current In of 20 kA using an 8/20 µs waveform.
Yes. The device has a pluggable construction and uses the ABB OVR PV T2 40-1000 C replacement cartridge, order code 2CTB802402R1000.
Yes. The TS version includes an auxiliary contact with one normally open and one normally closed contact, allowing compatible monitoring equipment to supervise the status of the surge protective device.
ABB OVR PV surge protective devices provide solar installers, electrical engineers and system integrators with purpose-designed protection against transient overvoltages in photovoltaic DC systems, helping safeguard inverters, panels and associated electrical equipment.
