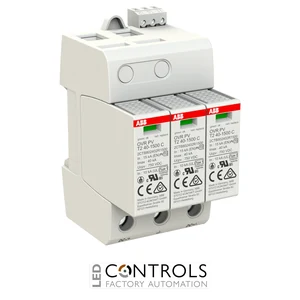

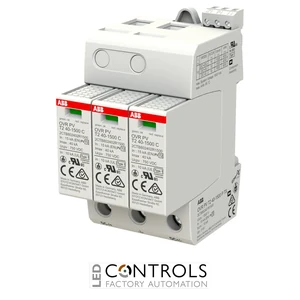

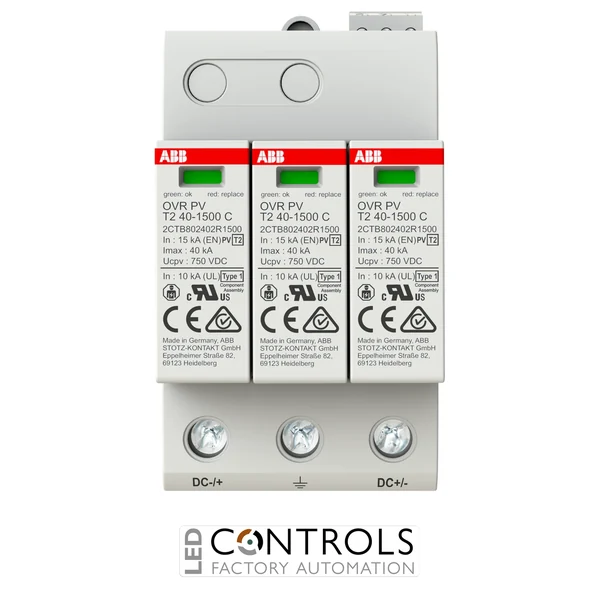

ABB 2CTB802401R1500 OVR PV T2 40-1500 P TS is a pluggable Type 2 photovoltaic surge protective device for 1500 V DC systems with 40 kA maximum discharge current, 15 kA nominal discharge current, 5 kV voltage protection level and remote signalling.
£351.74
The ABB OVR PV T2 40-1500 P TS 2CTB802401R1500 is a Type 2 surge protective device (SPD) specifically designed for high-voltage photovoltaic DC installations. Part of ABB's OVR PV range, it helps protect PV arrays, inverters and associated DC equipment against transient overvoltages resulting from indirect lightning events and other electrical disturbances.
Designed for photovoltaic systems with a maximum continuous operating voltage of 1500 V DC, the OVR PV T2 40-1500 P TS provides a maximum discharge current Imax of 40 kA and a nominal discharge current In of 15 kA, based on the standard 8/20 µs surge-current waveform. Its voltage protection level Up is 5 kV, with protection provided between DC+, DC− and ground.
The P configuration features replaceable pluggable cartridges, while the TS auxiliary contact provides remote status signalling through one normally open and one normally closed contact. With thermally protected varistor technology, a visual end-of-life indicator and an IP20 enclosure, the 2CTB802401R1500 provides a serviceable surge protection solution for string/combiner boxes, PV inverters and other 1500 V DC photovoltaic equipment.
Photovoltaic arrays can be exposed to transient overvoltages caused by indirect lightning events, with long DC cable runs increasing the importance of correctly coordinated surge protection. PV-specific SPDs are designed to divert surge current while limiting the transient voltage imposed on sensitive equipment such as solar inverters and monitoring electronics.
The ABB OVR PV T2 40-1500 P TS combines a 1500 V DC Ucpv rating with 40 kA Imax, 15 kA In and a 5 kV Up protection level. Its pluggable cartridge, visual status indication and TS remote signalling contact simplify maintenance and make it particularly suitable for professional high-voltage PV installations.
Tick the specs you need, then view products that match.
| SPD Type | Type 2 | |
|---|---|---|
| Product Series | ABB OVR PV T2 | |
| Device Type | Surge protection device | |
| Series | OVR PV T2 | |
| Order code | 2CTB802401R1500 | |
| EAN | 4053546050288 | |
| Product group | Surge Protection Devices | |
| Product type | Photovoltaic Type 2 surge protective device | |
| Application | Photovoltaic DC systems | |
| SPD classification | Type 2 / UL Type 1 C.A. | |
| Maximum continuous operating voltage Ucpv | 1500 V DC | |
| Intended PV system voltage | 1500 V DC | |
| Maximum discharge current Imax (8/20 µs) | 40 kA | |
| Nominal discharge current In (8/20 µs) | 15 kA | |
| Voltage protection level Up | 5 kV | |
| Voltage protection rating VPR | 4 kV | |
| Protection modes | DC+ to DC− / DC+ to ground / DC− to ground | |
| Number of protected lines | 2 | |
| Short-circuit current rating Iscpv / SCCR | 10 kA | |
| Technology | Thermally protected varistor | |
| Response time | <25 ns | |
| End-of-life indicator | Green = functional / Red = replace | |
| Degree of protection | IP20 | |
| Operating temperature | −40 to +80 °C | |
| Maximum altitude | 2000 m | |
| Construction | Pluggable | |
| Replacement cartridge | OVR PV T2 40-1500 C, 2CTB802402R1500 | |
| Remote signalling | Yes | |
| Auxiliary contacts | 1 NO + 1 NC | |
| Dimensions (H × W × D) | 99 × 54 × 73 mm | |
| Weight | 329 g | |
| Standards | IEC 61643-31, UL 1449 5th edition |
The ABB 2CTB802401R1500 is a Type 2 photovoltaic surge protective device designed for PV systems with a maximum continuous operating voltage of 1500 V DC, featuring pluggable cartridges and remote status signalling.
The device has a maximum discharge current Imax of 40 kA using an 8/20 µs surge-current waveform.
The ABB 2CTB802401R1500 has a nominal discharge current In of 15 kA using an 8/20 µs waveform.
Yes. The device has a pluggable construction and uses the ABB OVR PV T2 40-1500 C replacement cartridge, order code 2CTB802402R1500.
Yes. The TS version includes an auxiliary contact with one normally open and one normally closed contact, enabling compatible external equipment to monitor the operating status of the surge protective device.
