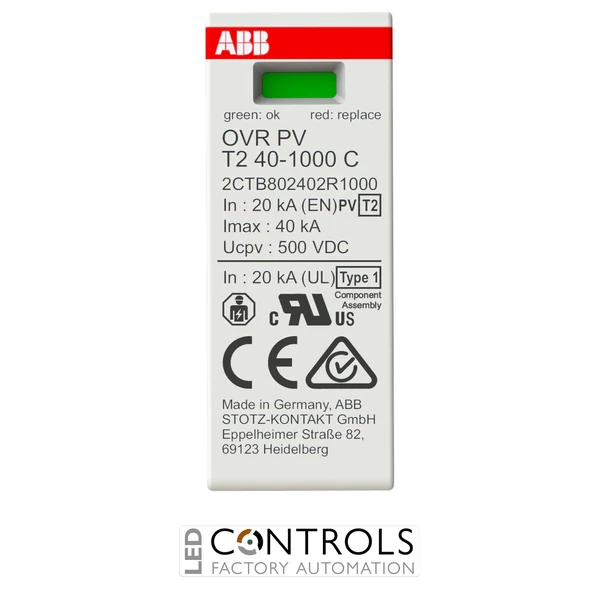

ABB OVR PV T2 40-1000 C 2CTB802402R1000 is a pluggable Type 2 replacement surge protection cartridge for 1000 V DC photovoltaic systems with a 40 kA maximum discharge current and 20 kA nominal discharge current.
£78.22
The ABB OVR PV T2 40-1000 C, order code 2CTB802402R1000, is a Type 2 replacement surge protection cartridge designed for compatible ABB OVR PV surge protective devices used in photovoltaic installations. Part of the ABB OVR PV range and ABB's Surge Protection Devices product group, it provides a replaceable protection module for 1000 V DC photovoltaic systems.
The OVR PV T2 40-1000 C is rated for a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA using an 8/20 µs waveform. Its maximum continuous operating voltage is 1000 V DC, making it suitable for the high DC voltages encountered in modern photovoltaic arrays and associated power distribution equipment.

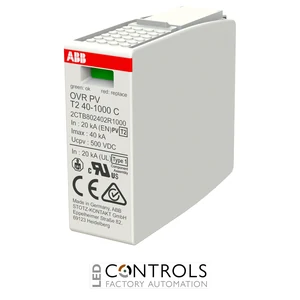

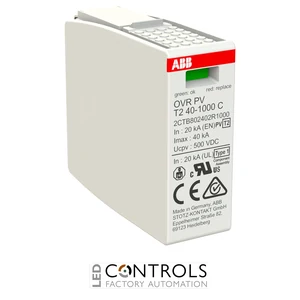

As a pluggable replacement cartridge, the OVR PV T2 40-1000 C allows the protection module in a compatible ABB OVR PV Type 2 SPD to be replaced while retaining the installed base and wiring. A built-in visual status indicator assists inspection and maintenance, while the compact 17.5 mm width helps minimise space requirements within photovoltaic distribution and protection equipment.
Photovoltaic arrays and their associated DC cabling can be exposed to transient overvoltages generated by indirect lightning activity and electrical switching events. Type 2 photovoltaic surge protective devices help limit these transient voltages and divert surge energy away from sensitive equipment such as inverters, monitoring systems and other components within the PV installation.
The OVR PV T2 40-1000 C provides the replaceable protection element for compatible ABB OVR PV Type 2 devices. Its 1000 V DC rating, 40 kA maximum discharge capability and pluggable construction make it a practical maintenance component for photovoltaic surge protection systems where rapid replacement and dependable protection are required.
Tick the specs you need, then view products that match.
| SPD Type | Type 2 | |
|---|---|---|
| Product Series | ABB OVR PV T2 | |
| Device Type | Replacement cartridge | |
| Series | OVR PV | |
| Order code | 2CTB802402R1000 | |
| Product group | Surge Protection Devices | |
| Product type | Type 2 replacement surge protection cartridge | |
| Application | Photovoltaic DC systems | |
| System configuration | DC | |
| Nominal voltage (Un) | 1000 V DC | |
| Maximum continuous operating voltage (Uc) | 1000 V DC | |
| Maximum discharge current (Imax) | 40 kA | |
| Nominal discharge current (In) | 20 kA | |
| Discharge current waveform | 8/20 µs | |
| Short-circuit current rating (Iscpv) | 10,000 A | |
| Voltage protection level (Up) | 4 kV | |
| Protection rating | IP20 | |
| Status indicator | Yes | |
| Construction | Pluggable replacement cartridge | |
| Standard | IEC 61643-31 | |
| Maximum operating altitude | 2000 m | |
| Dimensions (H × W × D) | 57 × 17.5 × 47 mm | |
| Net weight | approx. 0.053 kg |
The ABB OVR PV T2 40-1000 C is a Type 2 replacement surge protection cartridge for compatible ABB OVR PV devices used in 1000 V DC photovoltaic installations.
The cartridge has a maximum discharge current (Imax) of 40 kA using an 8/20 µs surge current waveform.
The OVR PV T2 40-1000 C has a nominal discharge current (In) of 20 kA.
The cartridge is designed for photovoltaic applications with a nominal and maximum continuous operating voltage of 1000 V DC.
The ABB order code for the OVR PV T2 40-1000 C replacement surge protection cartridge is 2CTB802402R1000.
ABB OVR PV replacement cartridges provide a practical way to maintain compatible photovoltaic Type 2 surge protective devices, combining high DC voltage capability, robust surge current handling and pluggable construction for efficient servicing.
