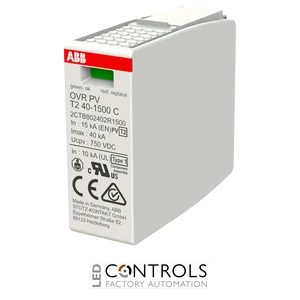

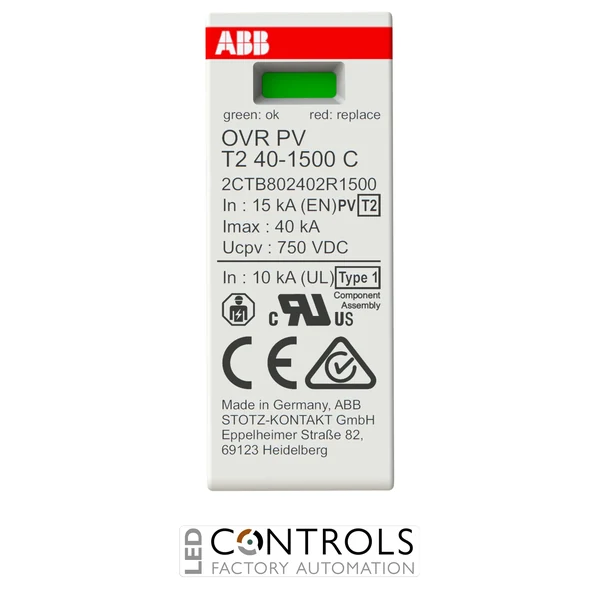

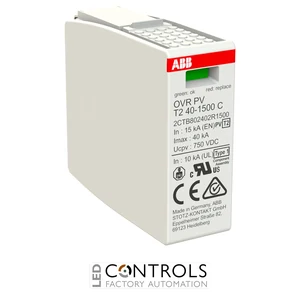

ABB OVR PV T2 40-1500 C 2CTB802402R1500 is a pluggable Type 2 replacement surge protection cartridge for 1500 V DC photovoltaic systems with a 40 kA maximum discharge current, 15 kA nominal discharge current and 5 kV voltage protection level.
£123.02
The ABB OVR PV T2 40-1500 C, order code 2CTB802402R1500, is a Type 2 replacement surge protection cartridge designed for compatible ABB OVR PV surge protective devices used in photovoltaic installations. Part of the ABB OVR PV range and ABB's Surge Protection Devices product group, it provides a replaceable protection module for high-voltage 1500 V DC photovoltaic systems.
The OVR PV T2 40-1500 C provides a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 15 kA using an 8/20 µs waveform. With a maximum continuous operating voltage (Ucpv) of 1500 V DC and a voltage protection level (Up) of 5 kV, it is engineered for demanding photovoltaic DC surge protection applications.
Its pluggable construction allows the protection cartridge in a compatible ABB OVR PV Type 2 SPD to be replaced while retaining the installed base and associated wiring. An integrated visual status indicator provides clear condition monitoring, while the compact cartridge format supports efficient maintenance in photovoltaic combiner boxes, inverter installations and DC distribution equipment.
Photovoltaic arrays and their associated DC cabling can be exposed to transient overvoltages generated by indirect lightning activity and switching events. Type 2 photovoltaic surge protective devices help limit these transient voltages and divert surge energy away from sensitive equipment such as PV inverters, monitoring equipment and other components within the DC installation.
The OVR PV T2 40-1500 C provides the replaceable protection element for compatible ABB OVR PV Type 2 devices. Its 1500 V DC capability, 40 kA maximum discharge current and pluggable construction make it particularly suitable for maintaining high-voltage commercial, industrial and utility-scale photovoltaic surge protection systems.
Tick the specs you need, then view products that match.
| SPD Type | Type 2 | |
|---|---|---|
| Product Series | ABB OVR PV T2 | |
| Device Type | Replacement cartridge | |
| Series | OVR PV | |
| Order code | 2CTB802402R1500 | |
| Product group | Surge Protection Devices | |
| Product type | Type 2 replacement surge protection cartridge | |
| Application | Photovoltaic DC systems | |
| Maximum continuous operating voltage (Ucpv) | 1500 V DC | |
| Maximum discharge current (Imax) | 40 kA | |
| Nominal discharge current (In) | 15 kA | |
| Discharge current waveform | 8/20 µs | |
| Voltage protection level (Up) | 5 kV | |
| Voltage protection rating (VPR) | 4 kV | |
| Short-circuit current rating (SCCR) | 10 kA | |
| Protection technology | Thermally protected varistor | |
| Protection rating | IP20 | |
| Status indicator | Green = functional / red = replace | |
| Construction | Pluggable replacement cartridge | |
| Standards | IEC 61643-31 / UL 1449 | |
| Operating temperature | -40 to +80 °C | |
| Maximum operating altitude | 2000 m | |
| Dimensions (H × W × D) | 57 × 17.5 × 47 mm |
The ABB OVR PV T2 40-1500 C is a Type 2 replacement surge protection cartridge for compatible ABB OVR PV devices used in high-voltage 1500 V DC photovoltaic installations.
The cartridge has a maximum discharge current (Imax) of 40 kA using an 8/20 µs surge current waveform.
The ABB OVR PV T2 40-1500 C has a nominal discharge current (In) of 15 kA.
The OVR PV T2 40-1500 C is designed for compatible photovoltaic surge protection systems with a maximum continuous operating voltage of 1500 V DC.
The cartridge has a visual status indicator: green indicates that the cartridge is functional, while red indicates that replacement is required.
ABB OVR PV replacement cartridges provide a practical way to maintain compatible Type 2 photovoltaic surge protective devices, combining high DC voltage capability, robust surge current handling and pluggable construction for efficient servicing.
