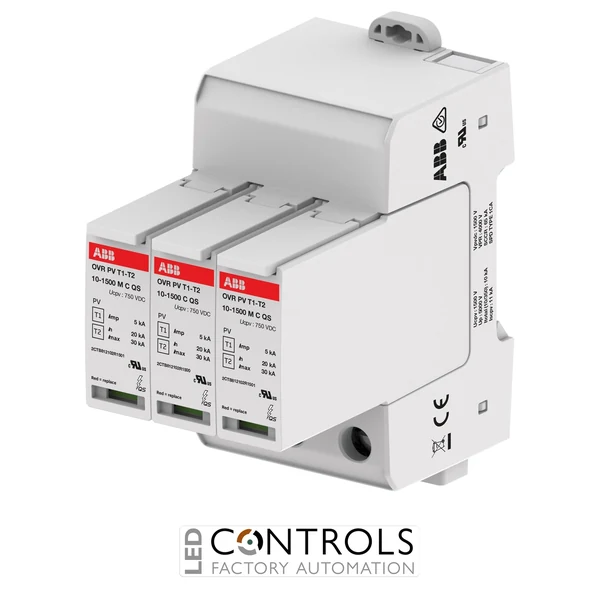

ABB OVR PV T1-T2 10-1500 P QS is a pluggable Type 1+2 photovoltaic surge protection device with 10 kA impulse current, 40 kA maximum discharge current, 20 kA nominal discharge current and 1500 V DC maximum continuous operating voltage for high-voltage solar PV installations.
£223.70
The ABB OVR PV T1-T2 10-1500 P QS, order code 2CTB812100R1500, is a pluggable Type 1+2 photovoltaic surge protection device (SPD) designed to protect high-voltage DC photovoltaic installations against lightning currents and transient overvoltages. As part of the ABB OVR PV surge protection range, it provides coordinated protection for solar PV arrays, DC distribution equipment and inverter inputs operating at up to 1500 V DC.
Designed specifically for photovoltaic applications, the OVR PV T1-T2 10-1500 P QS provides an impulse current (Iimp) of 10 kA with a 10/350 µs waveform, a maximum discharge current (Imax) of 40 kA and a nominal discharge current (In) of 20 kA. This combination enables the device to handle both high-energy lightning-current impulses and transient surge currents that may otherwise damage sensitive PV equipment.
With a 1500 V DC maximum continuous operating voltage (Ucpv) and a 5 kV voltage protection level (Up), this SPD is engineered for modern high-voltage photovoltaic systems. Its pluggable QuickSafe construction, integrated thermal disconnection and visual status indication simplify inspection and maintenance while helping maintain dependable surge protection throughout the PV installation.
Photovoltaic installations can be exposed to high-energy lightning currents and transient overvoltages because of their exposed arrays, extensive DC cabling and connection to sensitive power-electronic equipment. A Type 1+2 photovoltaic SPD combines lightning-current protection with Type 2 surge protection, providing coordinated protection against both 10/350 µs lightning impulses and 8/20 µs transient surge currents.
The ABB OVR PV T1-T2 10-1500 P QS is designed for demanding 1500 V DC photovoltaic applications where increased lightning-current capability is required. Its 10 kA impulse-current rating, 40 kA maximum discharge current and pluggable construction make it suitable for protecting PV arrays, combiner boxes, DC distribution equipment and inverter inputs while simplifying ongoing inspection and cartridge replacement.
Tick the specs you need, then view products that match.
| Impulse Current Iimp (kA) | 10 kA | |
|---|---|---|
| Device Type | Surge protection device | |
| SPD Type | Type 1+2 | |
| Product Series | ABB OVR PV T1-T2 | |
| Series | OVR PV T1-T2 | |
| Order code / MPN | 2CTB812100R1500 | |
| Product group | Surge Protection Devices | |
| Product type | Photovoltaic Type 1+2 surge protection device | |
| SPD classification | Type 1+2 / Class I+II | |
| Application | Photovoltaic DC systems | |
| Protected conductors | L+, L− | |
| Current type | DC | |
| Nominal system voltage | 1500 V DC | |
| Maximum continuous operating voltage (Ucpv) | 1500 V DC | |
| Impulse current (Iimp, 10/350 µs) | 10 kA | |
| Nominal discharge current (In, 8/20 µs) | 20 kA | |
| Maximum discharge current (Imax, 8/20 µs) | 40 kA | |
| Voltage protection level (Up) | 5 kV | |
| PV short-circuit current rating (Iscpv) | 11 kA | |
| Technology | Varistor | |
| Integrated thermal disconnector | Yes | |
| Status indication | Visual | |
| Construction | Pluggable | |
| Mounting type | DIN rail | |
| Protection rating | IP20 | |
| Response time | <25 ns | |
| Operating temperature | -40 to +85 °C | |
| Storage temperature | -40 to +85 °C | |
| Maximum operating altitude | 4000 m | |
| Maximum relative humidity | 95 % | |
| Fire resistance | UL 94 V-0 | |
| Standard | IEC 61643-31 |
The ABB OVR PV T1-T2 10-1500 P QS is a Type 1+2 photovoltaic surge protection device designed to protect the DC side of 1500 V solar PV installations against lightning-current impulses and transient overvoltages.
The device has an impulse current (Iimp) rating of 10 kA with a 10/350 µs waveform, enabling it to handle high-energy lightning-current impulses in photovoltaic installations.
The OVR PV T1-T2 10-1500 P QS has a 20 kA nominal discharge current (In) and a 40 kA maximum discharge current (Imax), measured using an 8/20 µs waveform.
The device is designed for high-voltage photovoltaic systems with a maximum continuous operating voltage (Ucpv) of 1500 V DC.
Yes. The ABB OVR PV T1-T2 10-1500 P QS uses a pluggable construction, allowing its protection cartridges to be replaced during maintenance without replacing the complete surge protection assembly.
ABB OVR PV surge protection devices are designed to protect photovoltaic DC installations against lightning currents and transient overvoltages, helping safeguard PV arrays, DC distribution equipment and inverter systems in commercial, industrial and utility-scale solar applications.
