Why Choose the ABB MR202B Busbar Module Expansion?

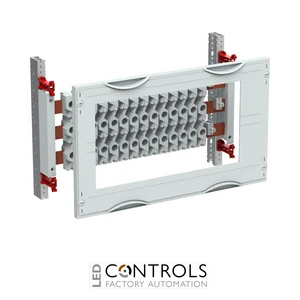

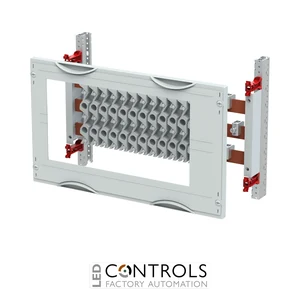

The ABB MR202B is a populated busbar module expansion for ABB sub-distribution assemblies, supplied under ABB order code 2CPX041410R9999. Designed as part of the ABB CombiLine N interior expansion system, the module provides a structured solution for integrating vertically installed three-pole bus-mounted fuse equipment into electrical distribution cabinets.
The MR202B is configured for the CombiLine N horizontal 60 mm busbar system and is designed for equipment with vertically installed three-pole bus-mounted fuse sockets. Its populated construction supports efficient panel assembly while maintaining the modular arrangement required for professional low-voltage distribution systems.
With a module height of 300 mm, width of 500 mm and a minimum cabinet depth of 200 mm, the MR202B provides 48 PLE of installation capacity. The populated module is intended for bus-mounted fuse socket applications with a rated current of up to 250 A.
Key Advantages
- Purpose-designed busbar module expansion for ABB sub-distribution systems.
- Compatible with the CombiLine N 60 mm horizontal busbar system.

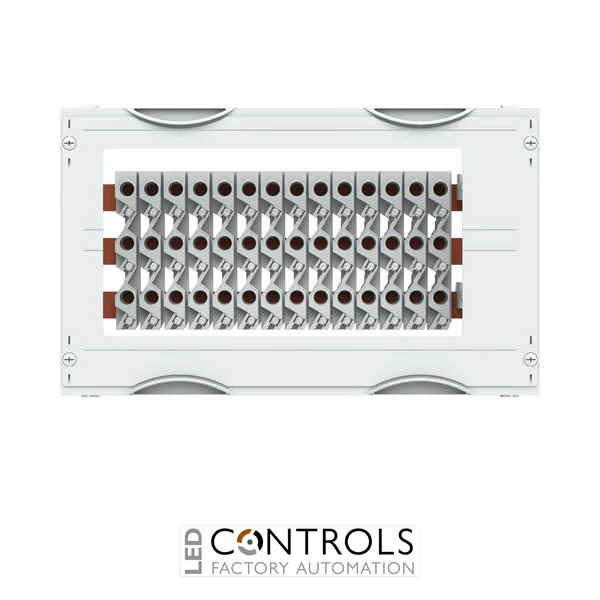

- Populated module for vertically installed three-pole bus-mounted fuse sockets.
- Supports applications with rated current up to 250 A.
- Provides 48 PLE of installation capacity.
- Suitable for both EDF and WR mounting-frame arrangements.
Key Features
- ABB MR202B busbar module expansion.
- 2-field-width (2PW) configuration.
- Module dimensions of 300 mm high × 500 mm wide.
- Designed for cabinets from 200 mm depth.
- 48 PLE installation capacity.
- Horizontal busbar system with 60 mm centre spacing.
- Designed for three-pole busbars.
- 32 mm spacing between the copper rail and cover.
- Busbar arrangement incorporates ZX146 busbar brackets and ZX172 end covers.
Reliable Busbar Integration for Sub-Distribution Systems
Busbar expansion modules such as the ABB MR202B provide an organised mounting platform for protective and distribution equipment within modular switchgear and sub-distribution assemblies. The standardised 60 mm busbar arrangement helps simplify equipment positioning, electrical connection and future system expansion.
The MR202B is specifically intended for vertically installed three-pole bus-mounted fuse sockets within ABB CombiLine N assemblies. Its populated design, defined module dimensions and compatibility with ABB mounting-frame systems make it suitable for structured distribution-board construction and professional switchgear panel building.
Typical Applications
- ABB CombiLine N sub-distribution assemblies.
- Low-voltage electrical distribution cabinets.
- Busbar-mounted fuse distribution systems.
- Commercial and industrial switchboards.
- Modular electrical panel construction.
- Distribution-board expansion and refurbishment projects.
