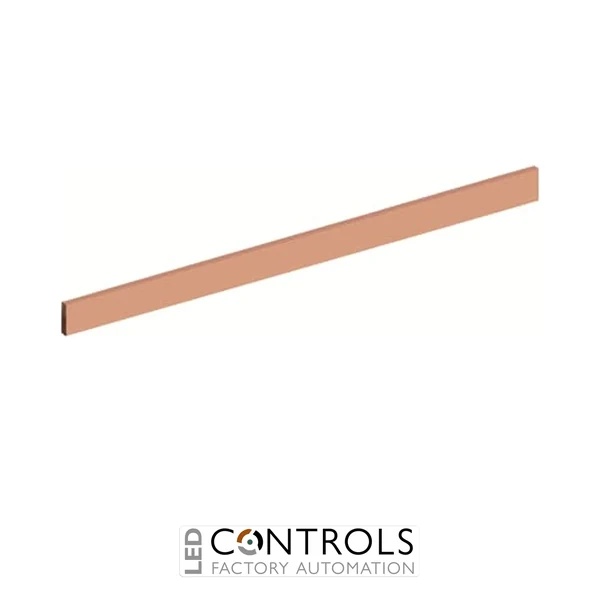

ABB ZXM1003 2CPX041482R9999 is a 746 mm long 12 × 5 mm copper busbar for 3-panel-width CombiLine distribution arrangements with a maximum rated current of 250 A, supplied mounted and installed in the cabinet.
Why Choose the ABB ZXM1003 N+PE 12x5mm Busbar 3PW?
The ABB ZXM1003, order code 2CPX041482R9999, is a 12 × 5 mm copper busbar designed for ABB CombiLine low-voltage sub-distribution systems. It provides a purpose-designed conductor for compatible busbar modules and is supplied in the mounted configuration for integration within the cabinet.
The ZXM1003 is rated for a maximum current of 250 A and is intended for a 3-panel-width (PW/FB) arrangement. Its copper conductor has a cross-section of 12 × 5 mm and a specified length of 746 mm, matching the required busbar width for a 3-field CombiLine installation.
ABB CombiLine busbar arrangements allow modules of different widths to be combined within a cabinet using continuous busbars. The ZXM1003 provides the 3-panel-width version of the 12 × 5 mm copper rail and is supplied mounted and installed in the cabinet, making it suitable for structured N/PE and compatible busbar distribution arrangements.
Key Advantages
Purpose-designed copper busbar for ABB CombiLine systems.
12 × 5 mm copper conductor for low-voltage power distribution.
Maximum rated current of 250 A.
Designed specifically for 3-panel-width (PW/FB) installations.
746 mm busbar length matched to the 3-field CombiLine format.
Supports modular cabinet configurations using continuous busbars.
Suitable for compatible N/PE and CombiLine busbar arrangements.
Supplied mounted and installed in the cabinet.
Key Features
ABB ZXM1003 copper busbar.
ABB order code 2CPX041482R9999.
Part of the ABB CombiLine interior expansion system.
12 × 5 mm copper rail cross-section.
250 A maximum rated current.
Designed for 3 panel widths (PW/FB).
746 mm conductor length.
Designed for installation within compatible CombiLine busbar modules.
Allows compatible modules of different widths to be combined with continuous busbars.
Supplied in the mounted and installed configuration.
Copper Busbar Distribution for CombiLine Assemblies
Copper busbars provide a low-resistance conductor for distributing electrical current through compatible low-voltage distribution assemblies. The ABB ZXM1003 uses a 12 × 5 mm copper cross-section with a maximum rated current of 250 A, providing the conductor dimensions required for compatible 3-panel-width CombiLine busbar installations.
With a length of 746 mm, the ZXM1003 corresponds to the 3-field-width configuration within the ABB system. CombiLine busbar arrangements can use continuous copper rails across compatible modules of different widths, allowing the distribution system to be configured according to the required cabinet layout and electrical design.
Typical Applications
ABB CombiLine low-voltage distribution assemblies.
N/PE busbar distribution systems.
Compatible horizontal busbar modules.
Commercial and industrial sub-distribution boards.
3-panel-width modular distribution arrangements.
Continuous busbar systems across compatible CombiLine modules.
Electrical switchgear and distribution cabinets requiring a 12 × 5 mm copper rail.
Technical Specifications
Tick the specs you need, then view products that match.
Length (mm)
746 mm
Product Series
ABB CombiLine
Device Type
Busbar
Rail / Busbar Profile
12 × 5 mm
Series
CombiLine
Order code
2CPX041482R9999
Product group
DESUJ Sub Distribution
Product type
Copper busbar
Application
N/PE and compatible CombiLine busbar distribution
Conductor material
Copper
Busbar cross-section
12 × 5 mm
Maximum rated current
250 A
Nominal width
3 PW / FB
Busbar length
746 mm
Supply format
Mounted and installed in cabinet
Package quantity
1 piece
Corresponding kit version
ZX1003
Kit version order code
2CPX041872R9999
EAN
4011617414827
Weight
Approximately 0.40 kg
Country of origin
Germany
Frequently Asked Questions
What is the ABB ZXM1003?
The ABB ZXM1003 is a 12 × 5 mm copper busbar designed for compatible ABB CombiLine distribution assemblies and supplied in a 3-panel-width configuration.
What is the maximum rated current of the ABB ZXM1003?
The ZXM1003 12 × 5 mm copper busbar has a maximum rated current of 250 A.
How long is the ABB ZXM1003 busbar?
The ZXM1003 has a specified busbar length of 746 mm, corresponding to the ABB CombiLine 3-panel-width format.
Is the ABB ZXM1003 supplied mounted in the cabinet?
Yes. The ZXM1003 is the mounted and installed version of the 12 × 5 mm, 3-panel-width copper busbar. The corresponding uninstalled kit version is the ABB ZX1003.
Can the ABB ZXM1003 be used with continuous CombiLine busbars?
Yes. Compatible ABB CombiLine modules of different widths can be arranged with continuous copper busbars, allowing the busbar system to extend across suitable modules within the cabinet.
Designed for ABB Distribution Systems
ABB CombiLine busbar components provide a modular approach to low-voltage power distribution, with the ZXM1003 providing a 746 mm long, 12 × 5 mm copper conductor rated up to 250 A for compatible 3-panel-width distribution arrangements.
