Why Choose the ABB ZXM1048 360A 12x10mm Busbar 3PW?

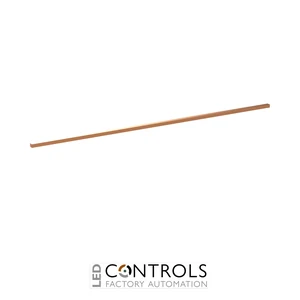

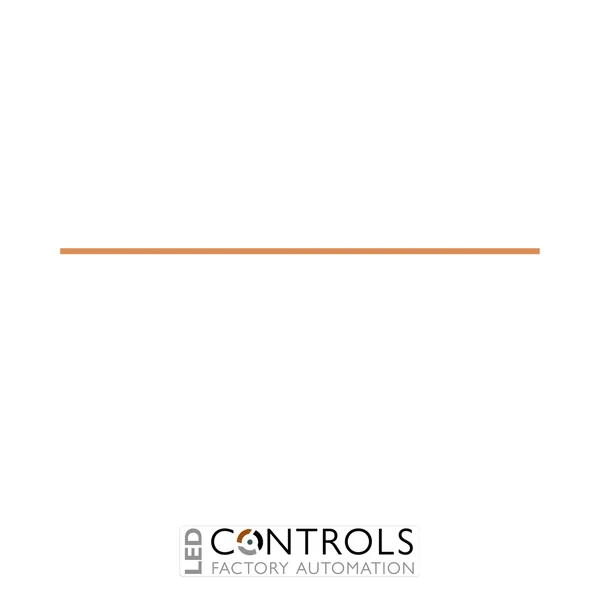

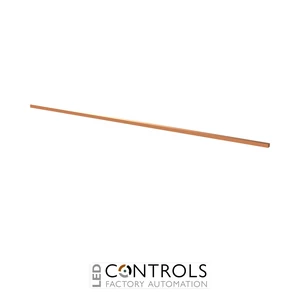

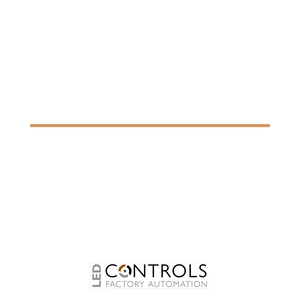

The ABB ZXM1048, order code 2CPX041524R9999, is a high-capacity 12 × 10 mm copper busbar designed for current distribution within compatible ABB low-voltage distribution cabinets. Part of the ABB CombiLine system and the DESUJ Sub Distribution product group, it provides a robust conductor solution for professional switchboard and sub-distribution assemblies.
The ZXM1048 is supplied mounted and installed in the cabinet and is configured for a 3PW field width. Its system-specific design makes it suitable for cabinet row-mounting arrangements where dependable current distribution and compatibility with ABB modular distribution equipment are required.
With a substantial copper cross-section of 12 × 10 mm, a maximum rated current of 360 A and an overall length of approximately 798 mm, the ZXM1048 combines high current-carrying capability with a compact flat-busbar format. Its factory-mounted configuration simplifies the construction of professional ABB CombiLine distribution assemblies.
Key Advantages
- High-capacity 12 × 10 mm copper busbar for low-voltage distribution systems.
- 360 A maximum rated current for demanding current-distribution applications.
- 3PW field-width configuration for compatible ABB cabinet assemblies.
- Approximately 798 mm overall busbar length.
- Supplied mounted and installed in the cabinet for straightforward system integration.
- ABB CombiLine system component designed for professional distribution-board construction.
Key Features
- ABB ZXM1048 copper busbar.
- ABB order code 2CPX041524R9999.
- 12 × 10 mm copper conductor dimensions.
- 360 A maximum rated current.
- 3PW field width.
- 798 mm overall length.
- Single-pole rigid busbar construction.
- Factory-mounted configuration for compatible ABB CombiLine cabinets.
Reliable High-Current Distribution for ABB Cabinets
Copper busbars provide a low-resistance and mechanically robust method of distributing electrical current throughout low-voltage switchboards and distribution cabinets. The ABB ZXM1048 uses a substantial 12 × 10 mm conductor cross-section to support currents up to 360 A while integrating efficiently into compatible modular ABB CombiLine assemblies.
The ZXM1048 is designed as a system-compatible busbar for cabinet row-mounting applications and is supplied already mounted in the cabinet. This makes it well suited to professional panel construction where reliable current distribution, consistent conductor dimensions and straightforward integration with ABB distribution equipment are essential.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB CombiLine distribution assemblies.
- Sub-distribution boards and switchboards.
- Cabinet row-mounting systems.
- Industrial electrical distribution cabinets.
- High-current copper busbar distribution arrangements.
