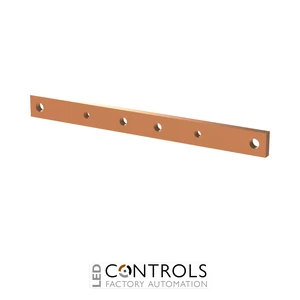

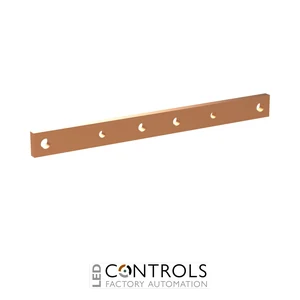

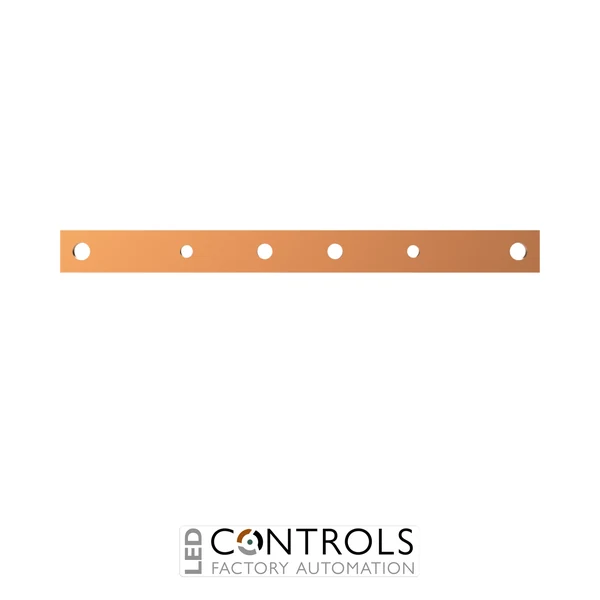

Why Choose the ABB ZXM1104 630A 30x10mm Busbar 1PW?
The ABB ZXM1104 is a high-capacity 630 A busbar designed for ABB modular sub-distribution systems and supplied under ABB order code 2CPX041576R9999. Featuring a substantial 30 × 10 mm conductor profile, it provides a robust current distribution path for compatible low-voltage electrical cabinet assemblies.
The ZXM1104 is configured for a 1PW / one-field-width installation, combining high current capacity with a compact modular format. Its defined current rating, conductor dimensions and field-width configuration support structured integration into compatible ABB sub-distribution arrangements.
With a rated current of 630 A and a 30 × 10 mm busbar cross-section, the ZXM1104 is suited to demanding commercial and industrial distribution applications. Its one-field-width configuration makes it particularly useful where substantial conductor capacity is required within a compact modular switchboard section.
Key Advantages
Purpose-designed 630 A busbar for ABB sub-distribution systems.
Heavy-duty 30 × 10 mm conductor profile.
Compact 1PW / one-field-width configuration.
630 A rated current for demanding low-voltage distribution applications.
System-specific format supports structured electrical cabinet construction.
Suitable for professional panel building, distribution expansion and refurbishment.
Key Features
ABB ZXM1104 busbar.
630 A rated current.
30 × 10 mm busbar cross-section.
1PW / one field width.
Heavy-duty rigid conductor construction.
Designed for compatible ABB modular sub-distribution systems.
Suitable for high-current low-voltage distribution sections.
Compact format for commercial and industrial electrical cabinets.
Compact 630A Distribution for Modular Electrical Systems
Busbars provide a common conductor path for distributing electrical power between compatible devices and sections within switchboards and sub-distribution assemblies. The ABB ZXM1104 combines a substantial 30 × 10 mm conductor profile with a 630 A rating to support high-current distribution within compatible ABB cabinet systems.
Its compact 1PW configuration enables substantial current capacity to be incorporated into a single modular field width. Used with compatible ABB mounting, connection and protective components, the ZXM1104 supports structured construction, expansion and maintenance of professional low-voltage distribution assemblies.
Typical Applications
ABB modular sub-distribution assemblies.
High-current low-voltage electrical distribution cabinets.
630 A busbar distribution arrangements.
One-field-width modular switchboard sections.
Commercial and industrial power distribution panels.
Panel building, system expansion and refurbishment projects.
Technical Specifications
Tick the specs you need, then view products that match.
Device Type
Busbar
Rail / Busbar Profile
30 × 10 mm
Product Series
ABB S&J system
ABB order code
2CPX041576R9999
Product type
Busbar
Product group
DESUJ Sub Distribution
Rated current
630 A
Field width
1PW / 1 field width
Busbar dimensions
30 × 10 mm
Construction
Rigid busbar
Application
Modular low-voltage sub-distribution
Frequently Asked Questions
What is the ABB ZXM1104 used for?
The ABB ZXM1104 is a 630 A busbar designed for compatible ABB modular low-voltage sub-distribution assemblies requiring a compact one-field-width arrangement.
What is the ABB order code for the ZXM1104?
The ABB order code for the ZXM1104 busbar is 2CPX041576R9999.
What is the rated current of the ABB ZXM1104?
The ZXM1104 has a rated current of 630 A for its intended ABB sub-distribution application.
What are the busbar dimensions of the ZXM1104?
The ABB ZXM1104 has a conductor profile measuring 30 × 10 mm.
How many field widths does the ZXM1104 cover?
The ZXM1104 is configured for 1PW / one field width, providing a compact format for high-current modular distribution sections.
Where is the ABB ZXM1104 typically used?
The ZXM1104 is typically used in compatible ABB low-voltage distribution cabinets and modular switchboard assemblies requiring a 630 A, one-field-width busbar arrangement.
