ABB MN162 CombiLine N+PE and terminal expansion, order code 2CPX041287R9999, is a 1 PW module with 24 space units, a horizontal 2-pole busbar system rated up to 630 A and adjustable 90–145 mm usable depth for compatible ABB sub-distribution systems.
Why Choose the ABB MN162 N+PE / Terminal Expansion?

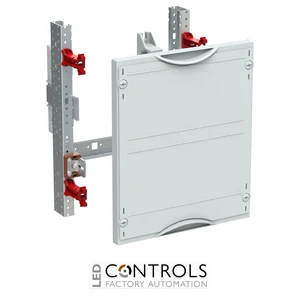

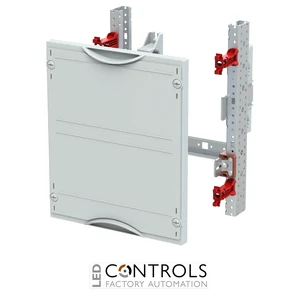

The ABB MN162 is a factory-assembled CombiLine N+PE busbar and terminal expansion module designed for compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX041287R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a 1 PW / 250 mm field width.
The MN162 has a 2 RE / 300 mm module height and provides 24 space units. It combines provision for horizontal N+PE busbars with additional terminal installation capacity, making it suitable for structured neutral, protective-earth and terminal connections within professional distribution assemblies.
The module supports a 2-pole horizontal busbar system with up to two copper rails, uses a ZX149 busbar holder and has a maximum rated current of 630 A. Its installation depth is continuously adjustable from 90–145 mm, with a usable width of 188 mm, and it is suitable for cabinets from 275 mm deep.
Key Advantages
Combines N+PE busbar and terminal installation within one CombiLine module.
1 PW / 250 mm field width for compact distribution-board layouts.
Maximum rated current of 630 A.
Supports up to 2 copper busbars in a horizontal arrangement.
90–145 mm continuously adjustable usable depth.
Provides additional DIN-rail capacity for terminal blocks.

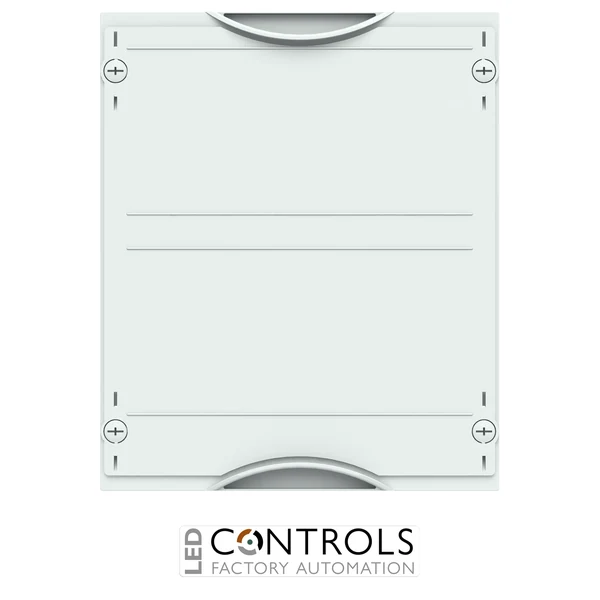

Closed RAL 7035 plastic covers with 90-degree press-and-turn closures.
Suitable from a cabinet depth of 275 mm.
Copper busbars and WR mounting frame ordered separately.
Integrated N+PE Busbar and Terminal Distribution
The ABB MN162 combines neutral and protective-earth busbar accommodation with terminal installation capacity in a compact CombiLine module. Its horizontal 2-pole arrangement supports up to two copper rails and a maximum rated current of 630 A, providing a structured connection area within compatible sub-distribution cabinets.
With a 250 mm field width, 300 mm height and continuously adjustable 90–145 mm usable depth, the MN162 supports flexible panel construction while maintaining an organised system layout. The additional terminal-block provision makes it particularly useful where N+PE distribution and outgoing terminal connections need to be accommodated within the same module area.
Typical Applications
Electrical sub-distribution boards.
ABB CombiLine distribution systems.
Neutral and protective-earth busbar distribution.
Terminal-block connection areas.
Commercial and industrial electrical panels.
Distribution-board extensions and structured connection sections.
Technical Specifications
Tick the specs you need, then view products that match.
Current
630 A
Product Series
S&J CombiLine N
Device Type
Busbar / Terminal
Series
CombiLine
ABB order code
2CPX041287R9999
Product group
DESUJ Sub Distribution
Product type
N+PE / terminal expansion module
Field width
1 PW / 250 mm
Module height
2 RE / 300 mm
Space units
24
Busbar system
2-pole
Busbar orientation
Horizontal
Maximum number of copper busbars
2
Busbar holder
ZX149
Maximum rated current
630 A
Usable width
188 mm
Usable depth
90–145 mm
Depth adjustment
Stepless via depth-mounting brackets
Minimum cabinet depth
275 mm
Cover
Closed plastic cover, RAL 7035
Cover closure
90-degree press-and-turn
Mounting frame
WR, ordered separately
Busbars
Ordered separately
Frequently Asked Questions
What is the ABB MN162 used for?
The ABB MN162 is a CombiLine N+PE busbar and terminal expansion module designed to provide neutral, protective-earth and terminal connection capacity within compatible ABB sub-distribution cabinets.
What size is the ABB MN162?
The MN162 has a 1 PW / 250 mm field width, a 2 RE / 300 mm module height and provides 24 space units.
What is the maximum rated current of the MN162?
The ABB MN162 has a maximum rated current of 630 A.
What busbar arrangement does the MN162 support?
The MN162 supports a 2-pole horizontal busbar system with a maximum of two copper busbars and uses an ABB ZX149 busbar holder; the copper busbars are ordered separately.
What is the ABB order code for the MN162?
The ABB order code for the MN162 is 2CPX041287R9999.
Trusted ABB CombiLine Distribution Components
ABB CombiLine N+PE modules provide structured, system-compatible solutions for neutral, protective-earth and terminal connections within professional electrical sub-distribution assemblies.
