Why Choose the ABB ZX1035 NH 40 × 10 mm Busbar?

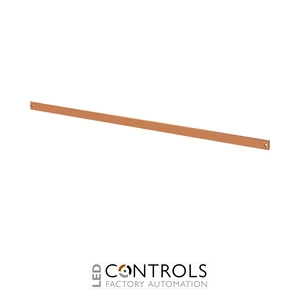

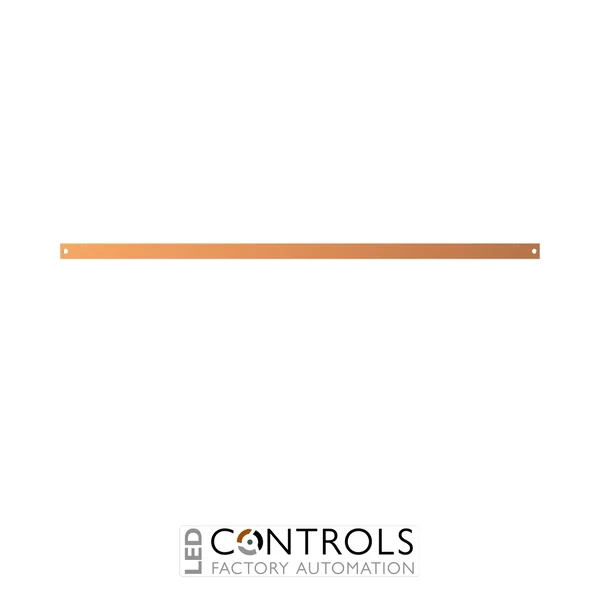

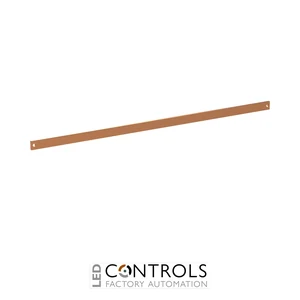

The ABB ZX1035 is a heavy-duty 40 × 10 mm copper busbar designed for high-current power distribution within ABB CombiLine N sub-distribution systems. Supplied as an unmounted busbar kit, it provides a robust conductor solution for assemblies incorporating NH load-break switch equipment and other compatible distribution components.
The ZX1035 is designed for individual cabinet installation and allows different module widths to be combined using continuous busbars. Its rigid flat copper construction provides dependable high-current distribution, while the five-field-width format makes it suitable for larger modular switchboard and distribution-panel arrangements.
With a maximum rated current of 850 A, a copper conductor size of 40 × 10 mm and a nominal five-field width of 1246 mm, the ZX1035 is engineered for demanding NH distribution applications. The product is supplied under ABB order code 2CPX041904R9999.
Key Advantages
- Heavy-duty copper busbar for high-current distribution.
- Maximum rated current of 850 A for demanding distribution assemblies.
- 40 × 10 mm flat copper conductor construction.
- 5PW / five-field-width format for larger modular installations.
- Designed for compatible ABB CombiLine N NH distribution systems.
- Supports continuous busbar arrangements across different module widths.
Key Features
- ABB ZX1035 copper busbar.
- 40 × 10 mm conductor dimensions.
- Maximum rated current of 850 A.
- 5PW / five-field-width configuration.
- 1246 mm nominal field width.
- Flat, rigid copper construction.
- Untreated conductor surface.
- Supplied as an unmounted kit for modular cabinet installation.
Reliable High-Current Distribution for Electrical Cabinets
Copper busbars such as the ABB ZX1035 provide a low-resistance conductor path for distributing substantial electrical currents throughout switchboard and sub-distribution assemblies. The 40 × 10 mm conductor profile provides the capacity required for high-current applications while its rigid construction supports organised and dependable cabinet installations.
The ABB CombiLine N system supports modular construction of electrical distribution assemblies, including configurations for NH load-break switches. The ZX1035 provides a five-field-width busbar solution with a maximum rated current of 850 A for compatible high-current distribution arrangements.
Typical Applications
- NH fuse and load-break switch distribution assemblies.
- ABB CombiLine N sub-distribution systems.
- High-current electrical distribution boards.
- Industrial switchboards and power distribution cabinets.
- Commercial and industrial electrical installations.
- Modular low-voltage distribution assemblies.
