Why Choose the ABB ZX1184 30x10mm Busbar Connection?

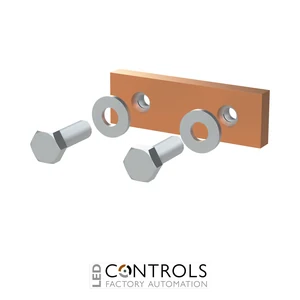

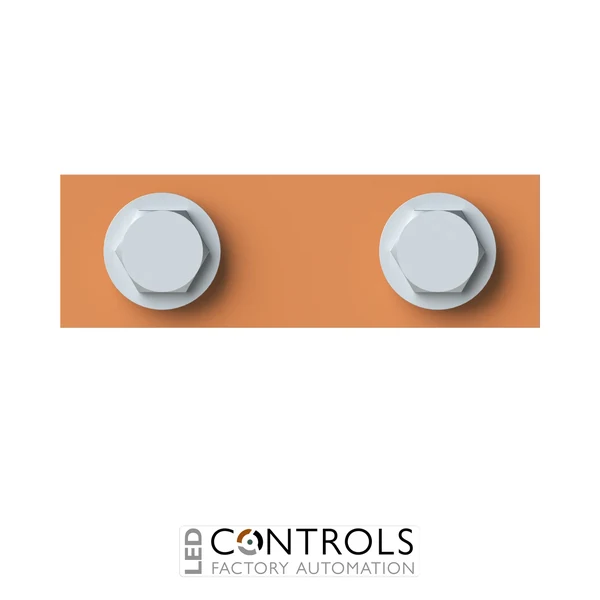

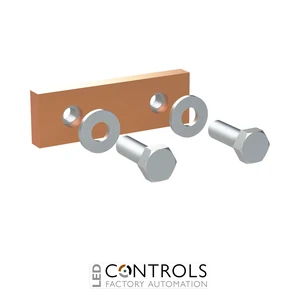

The ABB ZX1184 is a 30 × 10 mm copper busbar connector designed for compatible ABB low-voltage subdistribution assemblies. Supplied under ABB order code 2CPX042024R9999 and forming part of the ABB DESUJ Sub Distribution product group, it provides a dedicated connection solution for professional cabinet and distribution-board construction.
Designed as a 1-pole busbar connector, the ZX1184 has a maximum rated current of 360 A and belongs to the ABB CombiLine system. It is supplied as an unassembled kit and provides a system-compatible method of creating electrical continuity between appropriate busbar sections.
The ZX1184 is suitable for ABB cabinet row-mounting arrangements where a busbar connection is required between adjacent sections. Its defined 30 × 10 mm conductor format, compact construction and original ABB design make it a practical component for structured low-voltage power distribution systems.
Key Advantages
- Purpose-designed busbar connector for ABB subdistribution systems.
- Suitable for 30 × 10 mm busbar arrangements.
- Maximum rated current of 360 A.
- 1-pole configuration for individual busbar connections.
- Designed for compatible cabinet row-mounting applications.
- Original ABB component for dependable system compatibility.
Key Features
- ABB ZX1184 busbar connector.
- Designed for 30 × 10 mm busbars.
- 360 A maximum rated current.
- 1-pole design.
- ABB CombiLine system component.
- Supplied as an unassembled kit.
- Designed for compatible ABB low-voltage subdistribution assemblies.
- Part of the ABB DESUJ Sub Distribution product group.
Busbar Connections for Modular Distribution Systems
Busbar connectors provide electrical continuity between separate conductor sections while supporting modular construction of low-voltage distribution equipment. The ABB ZX1184 is designed around a 30 × 10 mm busbar format and provides a 1-pole connection with a maximum rated current of 360 A.
Within compatible ABB arrangements, the ZX1184 supports structured cabinet row mounting where busbar sections need to be interconnected as part of a larger power distribution system. Its CombiLine design and unassembled kit format make it suitable for professional panel-building, expansion and maintenance work.
Typical Applications
- ABB CombiLine low-voltage subdistribution assemblies.
- Cabinet row-mounting busbar connections.
- 30 × 10 mm busbar systems.
- Industrial and commercial electrical distribution cabinets.
- Modular switchgear and distribution-board construction.
- Distribution-system expansion and maintenance.
