2CPX041292R9999 ABB MN363 N+PE / Terminal Expansion 3PW 630 A

Why Choose the ABB MN363 N+PE / Terminal Expansion 3PW?

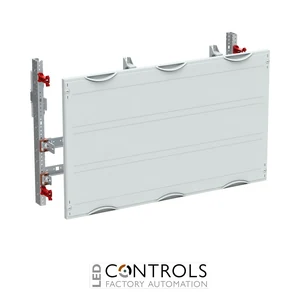

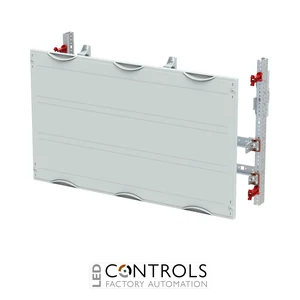

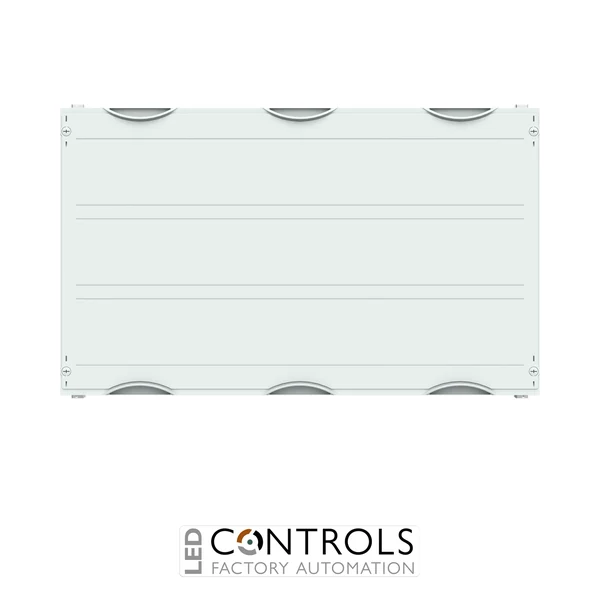

The ABB MN363, order code 2CPX041292R9999, is an N/PE busbar and terminal expansion module designed for ABB CombiLine sub-distribution systems. Supplied as a mounted interior module for cabinet installation, it combines neutral and protective earth busbar provision with terminal mounting space, providing an organised solution for power distribution and termination within professional low-voltage electrical assemblies.

Designed for demanding distribution applications, the MN363 incorporates a 2-pole horizontal busbar system with an ABB ZX149 busbar holder and supports a maximum rated current of 630 A. It accommodates up to two copper busbars measuring 30 × 10 mm, which are ordered separately, and provides additional DIN rail space for terminal blocks.

The MN363 occupies 3 panel widths (PW) and 3 grid units (GU), with dimensions of 450 mm high × 750 mm wide × 260 mm deep and 108 space units (PLE). It provides a usable terminal width of 688 mm, while the mounting arrangement can be continuously adjusted in depth to provide a usable range of 90–145 mm. The module is suitable for cabinets from 275 mm deep.

Key Advantages

• Purpose-designed N/PE busbar and terminal expansion module for ABB CombiLine systems.
• 630 A maximum rated current for demanding sub-distribution applications.
• Designed around a 2-pole horizontal busbar system.
• Supports up to two 30 × 10 mm copper busbars.
• Generous 688 mm usable width for terminal equipment.
• Continuously adjustable mounting depth provides a 90–145 mm usable depth range.
• 108 space units (PLE) provide substantial capacity within the cabinet.
• Closed plastic cover helps provide protection against accidental contact.
• 90-degree push-turn fastener provides convenient and secure cover closure.

Key Features

• ABB MN363 N/PE busbar and terminal module.
• ABB order code 2CPX041292R9999.
• Part of the ABB CombiLine interior expansion system.
• 630 A maximum rated current.
• 2-pole horizontal busbar system.
• Supports a maximum of two copper busbars.
• Suitable for 30 × 10 mm copper busbars.
• Fitted with ABB ZX149 busbar holder.
• 92 mm busbar spacing.
• 3 panel widths (PW) and 3 grid units (GU).
• 108 space units (PLE).
• 688 mm usable terminal width.
• 90–145 mm adjustable usable depth.
• Closed plastic cover in RAL 7035 light grey.
• Suitable for cabinets from 275 mm depth.

Reliable N/PE Distribution and Terminal Expansion

N/PE busbar modules provide dedicated infrastructure for neutral and protective earth distribution within low-voltage electrical assemblies. The ABB MN363 combines a high-current 2-pole horizontal busbar arrangement with substantial terminal mounting space, allowing distribution and termination functions to be organised within one modular cabinet section.

As part of the ABB CombiLine system, the MN363 provides flexible integration into professional distribution cabinets. Its 688 mm usable width offers generous space for terminal equipment, while the continuously adjustable 90–145 mm usable depth helps accommodate different installation requirements. The 3-panel-width format makes the module particularly suitable for larger distribution assemblies requiring extensive N/PE and terminal capacity.

Typical Applications

• Low-voltage electrical distribution boards.
• Commercial and industrial sub-distribution systems.
• ABB CombiLine cabinet assemblies.
• Neutral and protective earth busbar distribution.
• Terminal block mounting and cable termination.
• Large electrical switchgear and distribution cabinets.
• Distribution assemblies requiring N/PE busbar currents up to 630 A.
