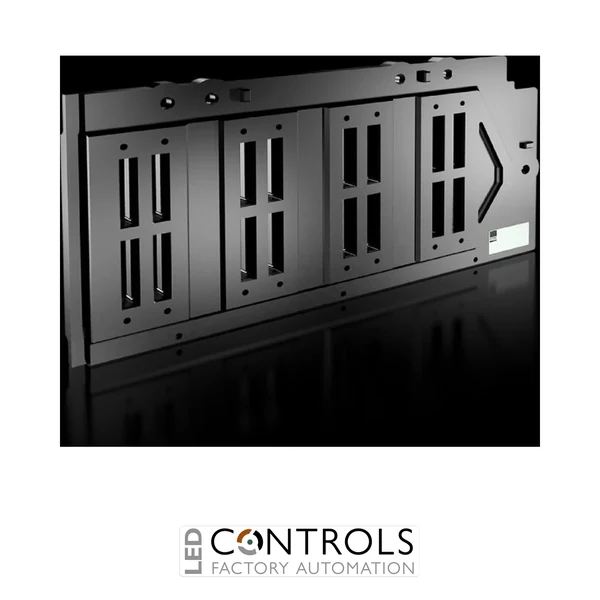

Rittal SV9686.040 4-pole duroplastic busbar support for inserting 50 x 10 mm E-Cu flat copper busbar systems into an enclosure roof section with 80 mm conductor spacing.
£217.16
The Rittal SV9686.040 is a robust 4-pole busbar support designed for inserting flat copper busbar systems into the roof section of compatible industrial enclosures. It provides secure mechanical support and accurate conductor positioning, helping switchgear manufacturers and panel builders create dependable high-current power distribution assemblies.
Designed for 50 × 10 mm E-Cu flat copper busbars, the SV9686.040 maintains a consistent 80 mm centre-to-centre spacing between the conductors. This controlled spacing supports accurate installation and reliable alignment within professional low-voltage switchgear and industrial electrical distribution systems.
Manufactured from durable duroplastic material, the support provides fire protection in accordance with UL 94-V0. It is supplied with assembly components and supports the installation of up to four busbars or sub-conductors per phase, making it suitable for demanding industrial power distribution applications.
The Rittal SV9686.040 provides dependable mechanical support where flat copper busbars enter an enclosure through the roof section. Its precision-moulded construction maintains the correct conductor spacing and alignment, helping reduce unwanted movement and simplifying the assembly of high-current electrical distribution systems.
When installed with compatible Rittal enclosures, busbars, cage nuts and connection components, the support enables panel builders to create structured and professionally engineered distribution arrangements. Installation should follow the applicable Rittal assembly instructions and the required electrical clearances for the completed system.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Model | SV9686.040 |
| Article number | 9686040 |
| Product type | Busbar support |
| Application | Busbar entry through the enclosure roof section |
| Number of poles | 4 |
| Suitable busbar size | 50 × 10 mm |
| Suitable conductor material | E-Cu flat copper |
| Centre-to-centre spacing | 80 mm |
| Maximum installation | 4 busbars per phase |
| Material | Duroplastic |
| Fire protection | UL 94-V0 |
| Colour | Similar to RAL 9005 |
| Supply includes | Assembly components |
| Required fixing accessory | M8 cage nut, Rittal 4165.500 |
| Pack quantity | 2 pieces |
| Net weight | 3.6 kg per pack |
| Gross weight | 3.76 kg per pack |
| EAN | 4028177935662 |
| Customs tariff number | 85469010 |
| ETIM classification | EC001166 |
| ECLASS classification | 27400607 |
| Approval | DNV-GL |
It is used to securely support flat copper busbars where a busbar system enters a compatible industrial enclosure through the roof section.
The SV9686.040 is designed for 50 × 10 mm E-Cu flat copper busbars.
The support maintains a centre-to-centre conductor spacing of 80 mm.
The support is suitable for installing a maximum of four busbars or sub-conductors per phase.
Assembly components are included, although an M8 cage nut, Rittal article 4165.500, is required to attach the support to the enclosure section.
Rittal busbar supports are widely selected by electrical engineers and switchgear manufacturers for precise conductor alignment, dependable mechanical support and seamless integration within professional power distribution assemblies.
